TiGeRC|aw

I'm in search of upgrading my alternator. I know Silverrotor ( or whoever, i forget ) use to make kits but stop selling them? I was wondering if anyone else was still making such a kit and if so can point me in the right direction or price $$?

Thanks

vipers

iTrader: (8)

use a alternator from a fd.... heres how to do it.... that should be all the juice you need... the alternator is almost a direct bolt on, only minor mods are needed..

vipers

iTrader: (8)

here is the write up....... (note..i did not write this, only cut and paste)

okay so i finished the FD alternator installation today and im doing a write up because noone explains this stuff fully and ive come across problems which i had to modify myself so heres my writeup

you will need female adapters, shrink tube or electric tape, a bigger bolt and nut for the adjusting bolt for the alternator and a soddering tool for this
remove TMIC so its easier to take the alternator in and out (OPIONAL).

1. disconnect negative battery cable

2. take off all bolts connecting the alternator on the car. ( should be two )

3. disconnect terminal connections

4. loosen screws/bolts on alternator and disassemble into two ( use a flat head screwdriver taking it off )

5. mount alternator into vice (or something so that it doesnt spin) and take off bolt holding on the pulley ( do the same for the new alternator except you dont have to disassemble the FD alternator. vice the FD alternator by the serpentine pulley. ) (keep the parts seperate from each other dont get it mixed up)

6. vice the V pulley so that it doesnt move and drill the hole big enough so that it would fit onto the FD alternator stud. ( does not have to prefectly fit but somewhat near sense its a V pulley it would get held down by the belt anyways. )

7. next mount the serpentine pulley from the FD alternator into the vice and cut the little spacer out ( you could use a hacksaw ). dont cut to close to it you want it as long as you can get it.

8. after you would want to file the spacer down so its completly flat where you have cut it so your pulley doesnt waddle. ( it doesnt have to be filed down completely flat perfectly just so the pulley wont waddle as much ) . you may have a hard time getting on the spacer all the way down to where it suppose to go on the stud.

9. put the V pulley on and turn it to see if it moves in a still place and rotates good.

10. get a screwdriver and something soft and stick the screwdriver into the alternator into a hole so you can torque the nut holding the pulley ( unless you want to disassemble the alternator and vice it to torque it. )

11. on the old FC alternator remove the B terminal (one bolt ) (see atached) and also remove the B terminal on the FD alternator ( should be one screw and one bolt the bolts under a cap you just pop off )

12. for the FC alternator terminal B you have to grind down the divots ( the plastic circles that stick out on the other side ) use a grinder or a filer if necessary.

13. put the FC terminal onto the FD alternator ( dont worry if it doesnt go all the way down just bolt it on tight )

14. electricals. now for the electrical issue what i did was cut off the origannal connector and got 2 new wires different color approx 6" or a little more and soddered the wires ( the origannal wire colors should be black/white and white/black. DONT GET THEM CONFUSED! ) i soddered the wires on the origannal ones put shrink tube over it and then soddered female adapters onto the new wires. ( make sure they plug in the terminal S and L good before soddering them on the wires ) . then shrink the tube down so it would cover all the wacky wirings up ( you can use electrical tape to ) .

15. find a longer bolt and nut for the mounting bracket . ( if its to long then theres something in the way so dont get that long of a bolt probably 1/4 of a inch more then the origannal. ( you might have to use a washer also so the bolt doesnt go threw )

16. reassemble the alternator on wires plugs in first with the terminal B on ( make sure you keep the black rubber cover on because you dont want to ground it to anything... ) then screw the bolt and nut on first and get a pri bar and lift the alternator up so the belt is tight and tighten the nut and bolt. ( recommend you have someone help you on this ) . then reassemble TMIC. turn on the car and test the charge.

i hope you guys find use of this and i hope this gets archived

darksider

is there a write up for an s5 n/a?

vipers

iTrader: (8)

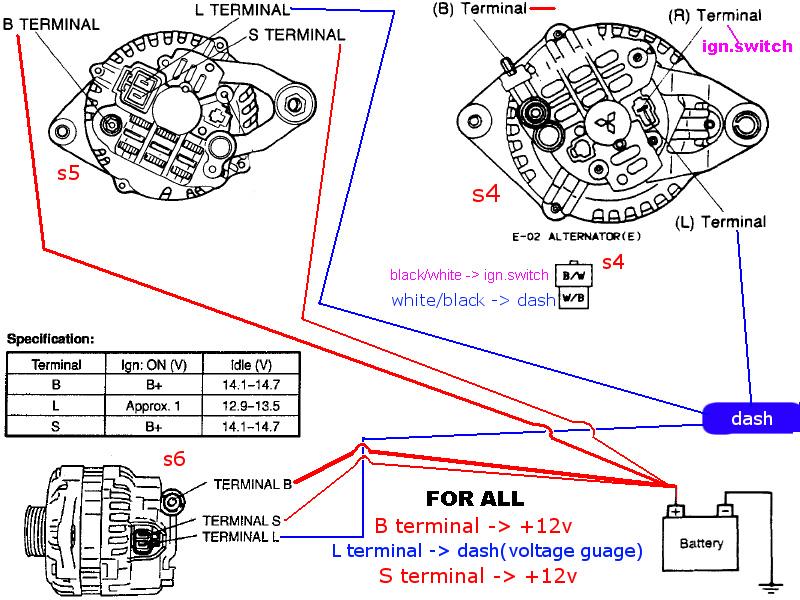

look at the chart i posted... follow the directions the same, but use the diagram for the wiring

Alex6969

what about the volt sencing wire? on an FC the alt see's 0 volts when the key is "off" an FD alt needs to see 12v all the time. how does it wire in?

sleeperfc

run a wire from your battery to it, just like the pic shows.

arghx

iTrader: (3)

find an alternator/starter shop, bring them your old one, and tell them to double the output. Then you won't even have to custom rig anything. A shop around here will do it for $150.

TiGeRC|aw

good advice. i just got a pm from a certain someone, thanks.

theagavejazz

iTrader: (4)

cool

Mindspin311

From my understanding, if you cut that voltage sensing wire, and just wire it onto the B post, you will be fine, as long as the FD alternator is seeing 12v when the car is off, you'll be fine

fastrotaries

I had mine redone in Daytona to put out 120 amps. cost me $110. Full load I see 14.6 Volts

TiGeRC|aw

What kind of warrenty are these upgraded alternators seeing?

ViperDude152

I have a brand new FD alt in my car. cost me some $$$ but it works great. Its very easy to install. The only down fall is you need to find a pulley that will work. someone on ebay had a bunch for sale.

staticguitar313

iTrader: (2)

which one is the sensing wire, my alt is dead i need to do this quick heh. i have an s5 car . .
what about the voltage guage?

riceburner1r2001

iTrader: (4)

well
