Turbocharging N/A vert engine
I'm gathering all of the parts to turbo my N/A vert. I have the upper lower intake, fuel rail, injectors, front engine cover, and exhaust.
I'm also obtaining the ECU, but I don't know which sensors I specifically need.
What else do I need for this endevour?
I'm also obtaining the ECU, but I don't know which sensors I specifically need.
What else do I need for this endevour?
#2
back with rotaries
iTrader: (7)
my question is what year is the vet? sec of all you can boost your N/A engine but 5 psi is like the safest you can run unless the engine is rebuild with better internals. and third stock turbo ecu is gonna but like i said before N/A max psi is 5 psi unless is built. and dont try to run 87 **** gas on it or goes kaboom on you
#3
On the prowl for an FB
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by DropTop7
I'm gathering all of the parts to turbo my N/A vert. I have the upper lower intake, fuel rail, injectors, front engine cover, and exhaust.
I'm also obtaining the ECU, but I don't know which sensors I specifically need.
What else do I need for this endevour?
I'm also obtaining the ECU, but I don't know which sensors I specifically need.
What else do I need for this endevour?
#5
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
^^^^ True that. But, alas, it's not that hard. Put some paint (or RTV) on your block, around where the intake ports are, and put the turbo lower intake manifold up against it. Then pull it off, and woot! You now have an outline of where your ports need to end up. Same way you port-match...
If your going to really do this, why not go the aestetically pleasing way, and use S5 T2 LIM and FD UIM+TB? :-D All the cool kids are doing it mang! xD
If your going to really do this, why not go the aestetically pleasing way, and use S5 T2 LIM and FD UIM+TB? :-D All the cool kids are doing it mang! xD
#6
back with rotaries
iTrader: (7)
Originally Posted by Sideways7
You do know that the TII manifolds don't bolt up to the NA engine, right? It sounds like you just got the turbo manifolds and were going to slap them on your block, which doesn't work.
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
What you MIGHT do, is offer up to the turbo intake manifold, the gasket for a n/a six port engine.

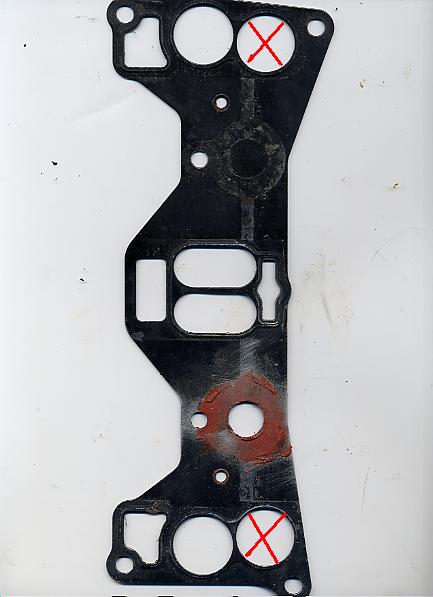

When you do, you'll realize there is a large chunk of metal on the turbo intake that needs to be removed so air will flow in that area. If you look at one of the jpg I attached you'll see where I put red x's. That is where the excess metal is.
A Dremel motor with a sanding drum will work just fine on aluminum metal removal in that area.

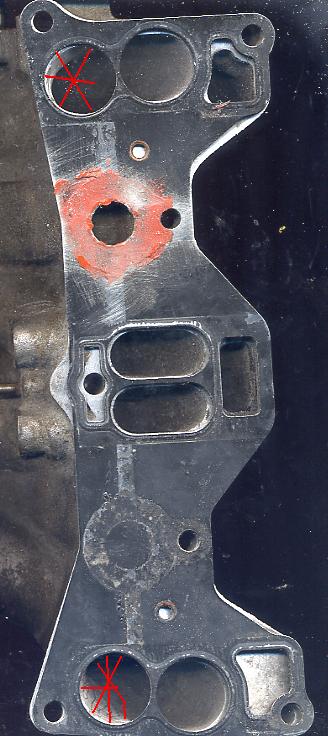

Also in one jpg I attached, is an area shown with a BLUE line around it. The turbo intake has a CAVITY in that area. I decided to fill it in with METAL. I poured the metal at one fill so there won't be any flaking off of several pourings of metal. The metal WILL stay in place and not migrate because I WILL IT TO STAY IN PLACE! Acutally there are divots in the void area the metal got poured, so it CAN'T move and migrate anywhere much less flake off like say, Devcon or JBWELD might.

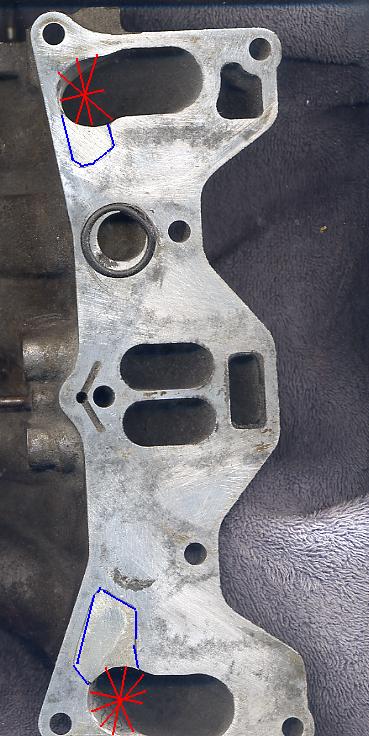

In the last jpg I layed the gasket over the gutted out holes, and it more or less is in the finished stage. The gasket isn't aligned perfectly because it's hard to put a intake manifold with loose gasket on a scanner and have it perfect.
The big ACV outlet rectangle at the middle/bottom is going to get filled in and the ACV air is SOMEHOW going to be routed to the front and rear side housings like its routed on a n/a engine (series four engine, series five is different).
Oh yeah. See the two OVAL intake ports in the middle of the gasket/manifold? See the bolt hole just above them? That bolt hole does not exist on a n/a engine. So I drilled and tapped a hole in that area using the maifold as a pattern.
I'm also going to drill a hole in the rear rotor housing so water can flow to the turbo, much like a real turbo housing. You know, where the red RTV is smeared on the gasket. That area.
EDIT: Looking at the jpg with the metal gasket, I just realized I'm going to lose my primary injector air bleed. Oh well, I think Ill ditch that metal gasket and make my own paper gasket. It'll seal the water passage better anyway.
When you do, you'll realize there is a large chunk of metal on the turbo intake that needs to be removed so air will flow in that area. If you look at one of the jpg I attached you'll see where I put red x's. That is where the excess metal is.
A Dremel motor with a sanding drum will work just fine on aluminum metal removal in that area.
Also in one jpg I attached, is an area shown with a BLUE line around it. The turbo intake has a CAVITY in that area. I decided to fill it in with METAL. I poured the metal at one fill so there won't be any flaking off of several pourings of metal. The metal WILL stay in place and not migrate because I WILL IT TO STAY IN PLACE! Acutally there are divots in the void area the metal got poured, so it CAN'T move and migrate anywhere much less flake off like say, Devcon or JBWELD might.
In the last jpg I layed the gasket over the gutted out holes, and it more or less is in the finished stage. The gasket isn't aligned perfectly because it's hard to put a intake manifold with loose gasket on a scanner and have it perfect.
The big ACV outlet rectangle at the middle/bottom is going to get filled in and the ACV air is SOMEHOW going to be routed to the front and rear side housings like its routed on a n/a engine (series four engine, series five is different).
Oh yeah. See the two OVAL intake ports in the middle of the gasket/manifold? See the bolt hole just above them? That bolt hole does not exist on a n/a engine. So I drilled and tapped a hole in that area using the maifold as a pattern.
I'm also going to drill a hole in the rear rotor housing so water can flow to the turbo, much like a real turbo housing. You know, where the red RTV is smeared on the gasket. That area.
EDIT: Looking at the jpg with the metal gasket, I just realized I'm going to lose my primary injector air bleed. Oh well, I think Ill ditch that metal gasket and make my own paper gasket. It'll seal the water passage better anyway.
Last edited by HAILERS; 10-15-06 at 10:57 PM.
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by DropTop7
so do i have to port the manifold of the block, grrrrrrrr this is frusterating
A Dremel motor with a course drim will remove the metal fairly quick. You have to watchout for the thickness of the walls so you don't grind through the walls. You can control that by taking a 1/16 drill bit and drilling thru the thinest wall, then as you grind insert the drill bit thru the hole you created and measure how much material is left, to keep from grinding thru the wall.
It's the area in the top hole that has to be ground out.
Just go buy a intake manifold and get a idea of what needs to be done.
IN other words the block does not get ground on/out.
IF you look at the middle picture, you'll see some BLUE lines. This area is filled with molten metal in my case. This area originaly had a Depression/Hole in the area where the blue lines are. It makes sense to fill this area in so you can have a better port when your done. Some people fill it with JBWELD/DEVCON/You name it. I couldn't live with that.
Last edited by HAILERS; 10-17-06 at 10:16 AM.
#13
Full Member
Thread Starter
Join Date: Feb 2006
Location: cleveland, ohio
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DropTop7
so do i have to port the manifold of the block, grrrrrrrr this is frusterating
#14
check out my OLD OLD thread on the other forum. I used parts from a Cartech Turbo kit.
http://forum.teamfc3s.org/showthread.php?t=24108
http://forum.teamfc3s.org/showthread.php?t=24108
#20
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by DropTop7
ok so i got the intake off and looked at it and it really doesnt look all that difficult to machine, so ill have pics up soonest
If you have the turbo intake in hand, then you can see the cavity that I filled in. Using a Dremel with a course drum works pretty good and fairly fast. Takes maybe ten drums or less. Take care not to grind thru the intake runners.
If you can, post a picture of the turbo manifold. The face that mates with the enigne, thank you..
EDIT: By the way, the turbo is water cooled and there is no water return nipple on the water pump housing for that on a n/a water pump. There's several ways around that, but one that came to mind this last week is that you could route a hose from the turbo discharge to the water nipple on the BACK of the water pump housing. Same size hose. That would make for a simple solution. You'd lose the water from the rear rotor housing to the BAC then to that nipple on the back of the water pump, so you'd have to decide it it's worth that or not. OR you could buy a tee and use both.
