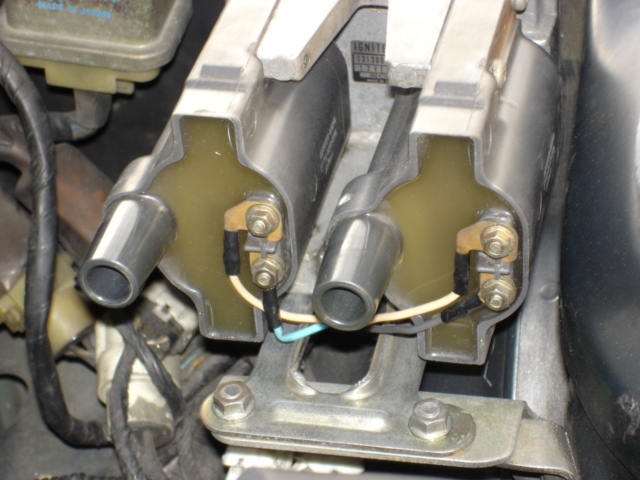

Do the Black and white wires go to the T1 ignitor, and Blue and White go to the T2 ignitor?



I guess it depends on brand my ngk are all the same just the boots have different colors, and in esscence it dont matter which wires go where as long as they fit they dont have different resistances



My title is wrong, sorry.

I mean the positive and negative wires (???) that go to the ignitors under the coils.



ah ok thats a big difference lol if there is no answer later after I leave work I will let u know



Edit: Nevermind...

FSM 50-22 might help you.



Bump!



12A TURBO J-SPEC FOR A BLOWN T2? yES OR NO...btw ITS A 85 GSL-SE



????



Yes.



Thank you NZ!



The wiring diagram confused me a bit. Is there a way to tell just from the diagram?



No, because the wiring diagrams only shows the wiring between all the major components, in this case up to the plugs for coil packs. The wiring in question here is between the ignitor and the coils themselves. Mazda wouldn't consider the coil packs a serviceable item, so there's no need for the FSM to show "internal" wiring.



Yepper, that is why I had to ask.



98% of people don't know that the Wiring Diagrams exist...

Glad to know that you do.
