TPS test please help!
#1
Full Member
Thread Starter
TPS test please help!
Hello all!
Is there a way to test if a TPS is in good condition while it is not installed? The sweep-test can be done I suppose, but what about the ~0 Ohms with no gas and ~5 kOhms at WOT?
I've found one but it is taken out of the car it used to be part of and also I can't put it in my car unless I buy it. Don't know if it's a good unit...
My car is an S5...
Thanx in advance!
Is there a way to test if a TPS is in good condition while it is not installed? The sweep-test can be done I suppose, but what about the ~0 Ohms with no gas and ~5 kOhms at WOT?
I've found one but it is taken out of the car it used to be part of and also I can't put it in my car unless I buy it. Don't know if it's a good unit...
My car is an S5...
Thanx in advance!
#3
Full Member
Thread Starter
Thanx for the rapid reply!
Yeah but how will I know where the no gas and WOT positions are? For instance if it is also faulty and when installed let's say at WOT it would give 6500 Ohms, by sweeping it out of the car I won't know that this is not the WOT position when I see 5000 Ohms...
Oh also what is narrow range?
Yeah but how will I know where the no gas and WOT positions are? For instance if it is also faulty and when installed let's say at WOT it would give 6500 Ohms, by sweeping it out of the car I won't know that this is not the WOT position when I see 5000 Ohms...
Oh also what is narrow range?
#4
PedoBear
iTrader: (4)
Thanx for the rapid reply!
Yeah but how will I know where the no gas and WOT positions are? For instance if it is also faulty and when installed let's say at WOT it would give 6500 Ohms, by sweeping it out of the car I won't know that this is not the WOT position when I see 5000 Ohms...
Oh also what is narrow range?
Yeah but how will I know where the no gas and WOT positions are? For instance if it is also faulty and when installed let's say at WOT it would give 6500 Ohms, by sweeping it out of the car I won't know that this is not the WOT position when I see 5000 Ohms...
Oh also what is narrow range?
and to test it, just push the sensor in first, read the multi meter, then let go, and check the range with the FSM (I dont remember the exact value right now)
btw, i dunno if urs is turbo or NA, its the same sensor, its just the bracket and wiring color is different. so that means you can buy a used one, test it, if its ok, swap the bracket with your broken one (if its not the same)

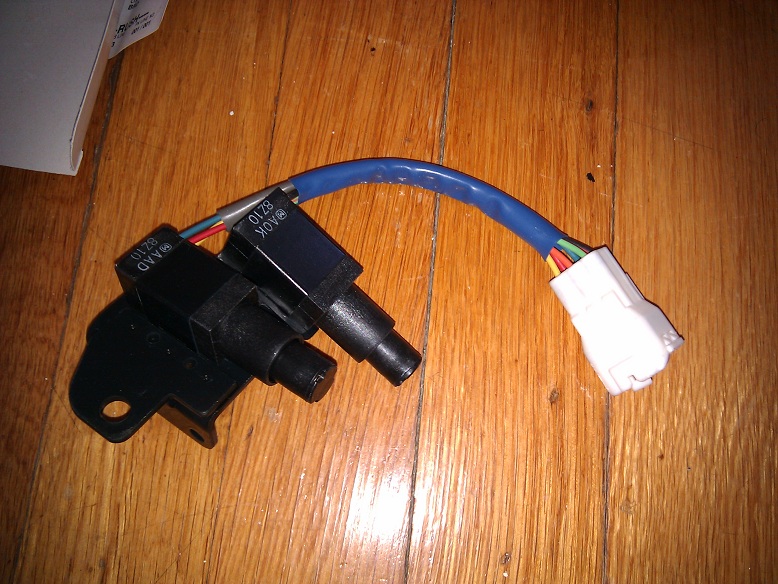

Mine failed, and I just ordered a brand new one from MMS(I dont want it used, I have my own reasons ), Turbo version, Cuz its about 100 something bux cheaper. when it comes next week. I am gonna do the Turbo to NA TPS swap with pictures
#5
Full Member
Thread Starter
It's a 1991 TurboII...
The point that the sensor is fully depressed corresponds to the WOT point? And this is why you can tell?
Sorry for my ignorance, I haven't taken out my old TPS yet and therefore lack the technical details about it...
The point that the sensor is fully depressed corresponds to the WOT point? And this is why you can tell?
Sorry for my ignorance, I haven't taken out my old TPS yet and therefore lack the technical details about it...
#6
PedoBear
iTrader: (4)
when its depressed, its closed position.
when its "all the way out", its WOT.
you can test it on the car, just unplug it, then test it. you can play with the throttle , its just right next to the sensor.
All the information you need can be found in the service manual,for TPS info, its in the Fuel and emissions TURBO pdf.
#7
Full Member
Thread Starter
Yayyy thank you soo much nycgps!!! Thanx for your time!
I will uninstall mine and make a thorough cleaning with potentiometer contact cleaner... If it will still act funny, I'll replace it while following your advice!
Cheers!
I will uninstall mine and make a thorough cleaning with potentiometer contact cleaner... If it will still act funny, I'll replace it while following your advice!
Cheers!
Trending Topics
#9
Full Member
Thread Starter
Niiiiice!!!
I measured mine...
Narrow range:
Closed: 1030 Ohms (800-1200) Cool
Full throttle: 3500 Ohms (4000-6000) Not Cool
Full range:
Closed: 250 Ohms (600-900) Not Cool at all...
--then a huge open circuit gap for approximate half the gas way -- really bad... this is what is probably causing the 6500rpm hesitation I suffer from
Full throttle: 7800 Ohms (3400-5100) Really bad too...
Think I'll also need a replacement...
Cheers!
I measured mine...
Narrow range:
Closed: 1030 Ohms (800-1200) Cool
Full throttle: 3500 Ohms (4000-6000) Not Cool
Full range:
Closed: 250 Ohms (600-900) Not Cool at all...
--then a huge open circuit gap for approximate half the gas way -- really bad... this is what is probably causing the 6500rpm hesitation I suffer from
Full throttle: 7800 Ohms (3400-5100) Really bad too...
Think I'll also need a replacement...
Cheers!
