anyone have pix of the tps and its location on the motor? i'm new to this car, need help to hopefully get my car running safe.

al0389

iTrader: (1)

http://www.fc3spro.com/TECH/HOWTO/TPS/tps.html

This is the DIY on the TPS. This is a TII motor. but the N/A has the same TPS. just a different location.


On an N/A the TPS is a little black, rectangular box with a cylindrical tube extending out of the end. It has 3 wires coming out of the other end, a Black, Red, and Green wire out of the plug. The TPS is touching the throttle on the front side of the Throttle body.


I can take a pic if needed, tomorrow...

BoostedFd3s

iTrader: (3)

thanks man i'll try to fix it tomorrow.

deuce_fc

hey can u post up the n/a pix too thanks

HAILERS

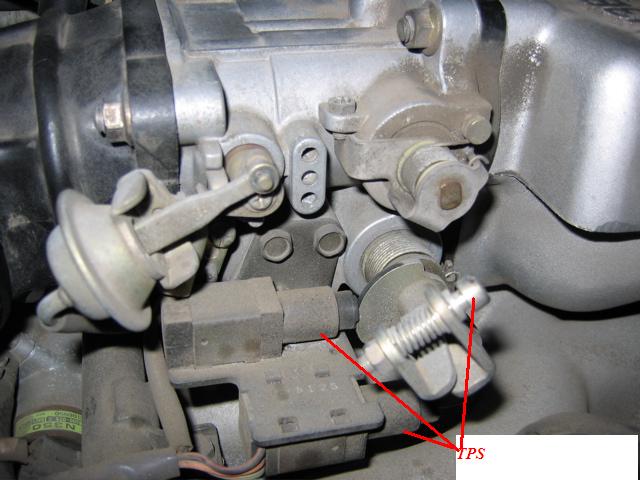

.Series five tps:

The Factory Service Manuals are free and online Visit the FAQ thread someday.

deuce_fc

the tps on my motor looks different from what ya have shown me. do anyone have a jdm motor thet can show me the tps location or a n/a motor. i dont now what kind of motor i have. i knoe its a swap turbo. but not sure if its a n/a turbo or jdm, brought the car like this.

HAILERS

That's why it is recommended to state what series car you have and whether turbo or non turbo.

There are some very good pictures of where the TPS is in the free, online Factory Service Manual. Fuel and Emissions section. It even tells you how to do a functional check and also how to adjust it.

deuce_fc

well its a s5 rite a 90 gtu model? well ita a turbo not sure if ita a jdm or n/a turbo

estrada42

As long as we're talking TPS's, does anyone know of a good source for new ones? Mine has a cylinder that is sticking and I have to pull over and unstick it to get back on the road. A new one is about $250 from the dealer.

deuce_fc

if the cylinder is sticking out would that cause the car to stall out? because mine is sticking out to i think, new to the car.

satch

iTrader: (1)

It's supposed to be an outty. Yes the "cylinder" is supposed to stick out and w/o much pressure go in as if there were a spring behind it.

deuce_fc

ok thanks for the info satch. anyone got jdm tps pix mines look different.

87 t-66

iTrader: (133)

ALL s4 tps's are the same jdm or usdm, ALL the s5 tps's are the same jdm or usdm

arghx

iTrader: (3)

Call Ray Crowe at Malloy Mazda (I think it's (703) 490-8170 , ask for Mazda parts). He will sell you one for about $195 shipped maybe? That's for an s4. Tell him you are with the rx7 club. That's the best price you will get, and he ships fast.
