Timing pulley marks...
#1
Eats, Sleeps, Dreams Rotary
Thread Starter
Timing pulley marks...
Does anyone know whether the stock timing pulleys have actual indentations where the marks should be?
I have 6 different markings on my pulley (no joke), a white one a yellow one (that doesn't have an sort of indentation and no signs of a red one anywhere near by, or another indentation), two sets of worn down spots that look like they might be where they used to be, and a white mark, but I think that's something someone put on to make lining the pulleys up to install them easier.
...none of the marks have identations... it seemed to run best when L-2 was set to one of the corresponding un-colored mark sets for the leading mark, although I don't know which one.
Strange thing is that I had just set it to T1 on the yellow mark (after restabbing the CAS on that yellow mark)...
Will there even be a visible mark when the original paint fades away?
I have 6 different markings on my pulley (no joke), a white one a yellow one (that doesn't have an sort of indentation and no signs of a red one anywhere near by, or another indentation), two sets of worn down spots that look like they might be where they used to be, and a white mark, but I think that's something someone put on to make lining the pulleys up to install them easier.
...none of the marks have identations... it seemed to run best when L-2 was set to one of the corresponding un-colored mark sets for the leading mark, although I don't know which one.
Strange thing is that I had just set it to T1 on the yellow mark (after restabbing the CAS on that yellow mark)...
Will there even be a visible mark when the original paint fades away?
#2
Senior Member

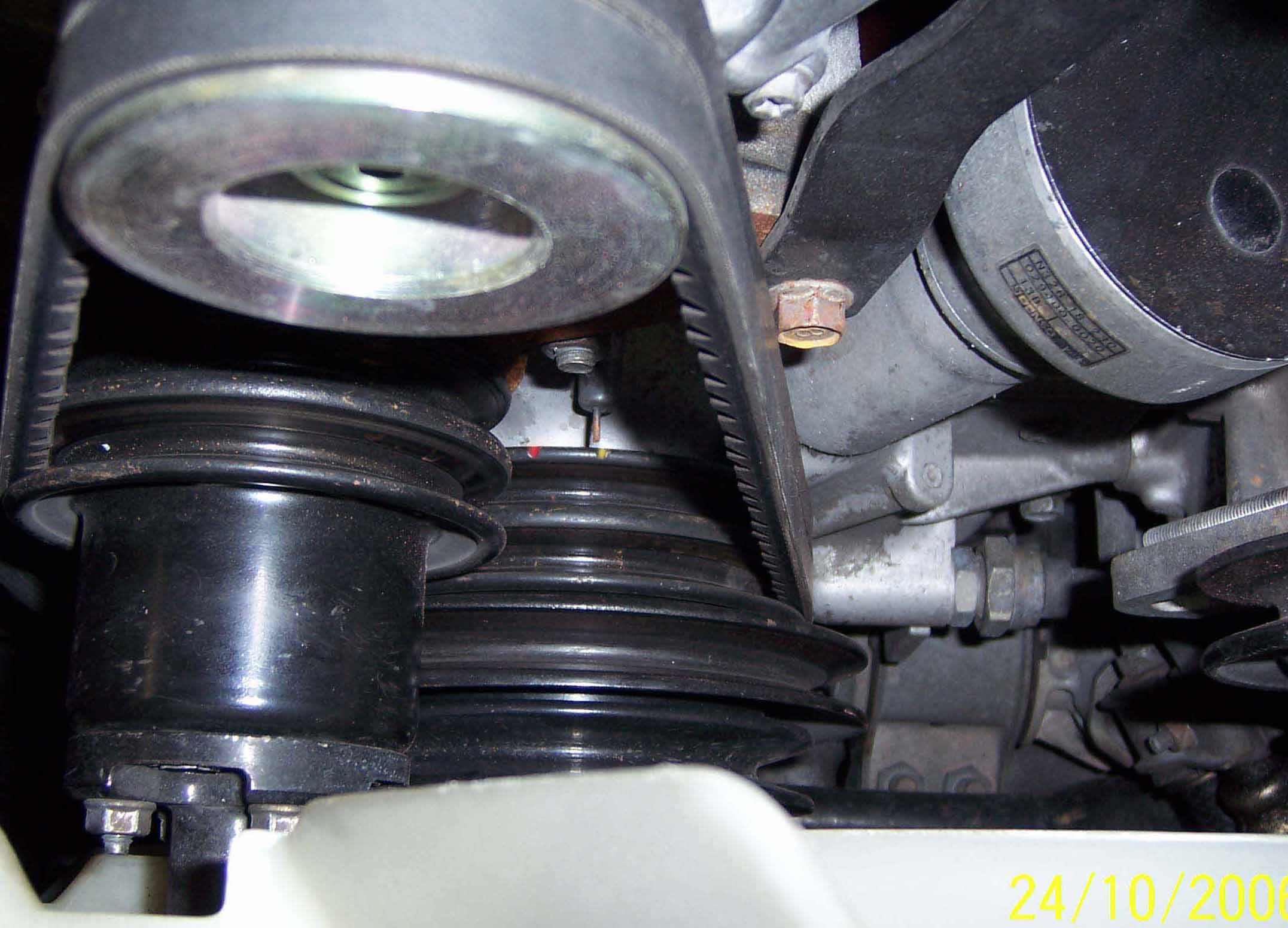

My pulley has a v-shaped notch cut into the flange for each of the two marks (it's an 87 TII). The notches are on the back side of the pulley, such that they are directly under the indexing pointer when they are aligned.
#4
Senior Member
Originally Posted by Valkyrie
Ah, so it's on the back... does it look like it was sort of knifed on there, or was it clearly original?
Edit to my first post: by "on the back" I meant that the marks are on the edge of the pulley flange nearest the motor.
#6
Senior Member
Originally Posted by Secondmessiah
wait, how do rx-7s have timing belts if they lack valves?
Trending Topics
#8
Eats, Sleeps, Dreams Rotary
Thread Starter
nevermind... it seems that the most like candidate, the actual yellow mark, is the one that has a notch. I thought you mean literally the back side of the pulley, not the outside rim. I can also faintly make out the red mark, although it's faded...
I guess now I need to figure out why it wasn't alligning when I tried to set it... L-1 and L-2 are supposed to be on the same timing.
I guess now I need to figure out why it wasn't alligning when I tried to set it... L-1 and L-2 are supposed to be on the same timing.
#10
Senior Member
Originally Posted by Valkyrie
I thought you mean literally the back side of the pulley, not the outside rim.
Dang. Another chance to be a hero, blown again.
