Throttle body check valve

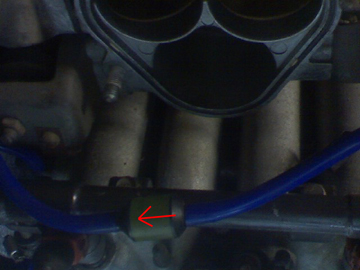

Which way is the green and black check valve supposed to face. The arrow is currently pointing to the left (rear or the car).

Attached Thumbnails

Reply Like

08-03-08, 09:37 PM

arghx

rotorhead

iTrader: (3)

Join Date: Aug 2004

Location: cold

Posts: 16,182

Likes: 124

Received 429 Likes on 263 Posts

is this the one for the double throttle system? the arrow should be pointing away from the TB. Think about it, you only want it to see vacuum. Vacuum is a pulling force (away from something).

Reply Like

08-03-08, 09:43 PM

RotaryRocket88

Top Down, Boost Up

iTrader: (7)

Join Date: Mar 2008

Location: San Diego, CA

Posts: 8,718

Likes: 0

Received 6 Likes on 4 Posts

Flip it around. It should point away from the secondary throttle diaphram. Hook up a vacuum hand pump if you're unsure to be certain the diaphram reacts to vacuum.
