Thermowax Valves NLA - Options going forward?
11-02-23, 12:45 PM
#1
Thermowax Valves NLA - Options going forward?
Hey guys, so if my thermalwax is bad and they're no longer available, are we just SOL?
After opening my thermalwax due to idle issues - I took mine off and inspected it to find wax actually leaking out past the little plastic thing that screws in...now what lol.
After opening my thermalwax due to idle issues - I took mine off and inspected it to find wax actually leaking out past the little plastic thing that screws in...now what lol.
11-03-23, 08:49 AM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
N326-13-W87 is available, Mazda has a bunch. its just the Wax thing and not the assembly
The following users liked this post:
Turbonut (11-03-23)
11-03-23, 11:59 AM
#3

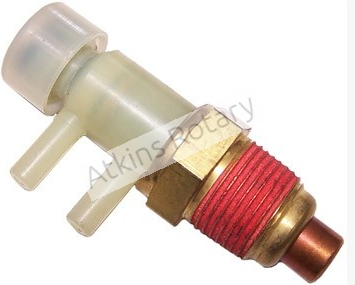

So im a little confused. I thought the thermowax valve was this assembly? Is this something else?
Edit: So i may have mispoken, and called the part below the thermowax valve but its actually just a thermovalve (?) after doing a little more digging. Atkins has it listed as a Thermal Wax valve and the part that @j9fd3s is referring to is a Thermowax pellet.
Edit: So i may have mispoken, and called the part below the thermowax valve but its actually just a thermovalve (?) after doing a little more digging. Atkins has it listed as a Thermal Wax valve and the part that @j9fd3s is referring to is a Thermowax pellet.
Last edited by maaaaackle; 11-03-23 at 12:10 PM.
11-03-23, 12:22 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Mazda calls that a Valve, Thermo; N304-13-980A which us NLA
easy to bypass it
easy to bypass it
11-03-23, 12:47 PM
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
@j9fd3s Do those go bad? Are these operated with vacuum? Does coolant flow through any of those nippels ?
when it warms up vacuum gets blocked, and the secondary plates open.
