taking my engine out, cant get oil cooler lines off
12-30-03, 09:45 PM
#2

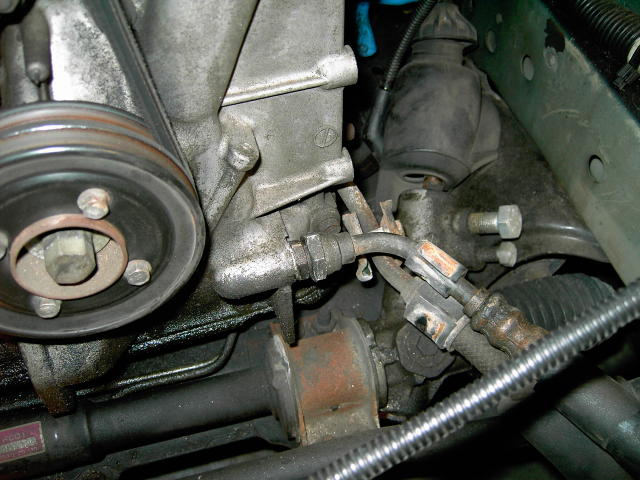

You need two wrenches on the front line. One holds the "nut" closest to the engine and the other wrench loosens the "nut" on the oil cooler line. Just put a wrench on each one and squeeze them together with your hands. I dont know the size off the top of my head but you need some big suckers. The other line on the side of the engine is a piece of cake. I think the size is a 23mm.
12-30-03, 09:57 PM
#4
Originally posted by wan
You need two wrenches on the front line. One holds the "nut" closest to the engine and the other wrench loosens the "nut" on the oil cooler line. Just put a wrench on each one and squeeze them together with your hands. I dont know the size off the top of my head but you need some big suckers. The other line on the side of the engine is a piece of cake. I think the size is a 23mm.
You need two wrenches on the front line. One holds the "nut" closest to the engine and the other wrench loosens the "nut" on the oil cooler line. Just put a wrench on each one and squeeze them together with your hands. I dont know the size off the top of my head but you need some big suckers. The other line on the side of the engine is a piece of cake. I think the size is a 23mm.
are you sure the bigger one (the one farther from the engine) turns? i just tried to turn mine and it made a little kink in the metal hose...
12-30-03, 10:22 PM
#5
That's because you let them both turn. The small one has to be held in place while the bigger one gets loosened. It is a compression fitting just like in a plumbing situation. You have to hold one, loosen the other. IT is hard to do...I usually get 2 breaker bars, one for each wrench. Set the smaller bolt up so that it's bar rests against the radiator support, and then have the larger one sticking farther up, and push down on that, being sure the smaller one isn't moving.
12-30-03, 10:59 PM
#6
I came, I saw, I boosted.
Join Date: Apr 2001
Location: Windsor, Ontario, Canada
Posts: 1,921
Likes: 0
Received 0 Likes
on
0 Posts
Mine were completely frozen, I know how frustrating that is.
I couldn't get the fitttings to turn independantly at all, so I had no other choice other than hacksawing the tube.
It was easy enough to solder it back together with a propane torch, using a 1/2" of copper pipe to slide over the ends like a coupling. Then just painted it silver.(Note- make sure you really scuff up the origional tube, or it won't solder.
I couldn't get the fitttings to turn independantly at all, so I had no other choice other than hacksawing the tube.
It was easy enough to solder it back together with a propane torch, using a 1/2" of copper pipe to slide over the ends like a coupling. Then just painted it silver.(Note- make sure you really scuff up the origional tube, or it won't solder.
12-30-03, 11:13 PM
#7
Older than Dirt
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts
Just use two wrenches. sometimes it helps to try and tighten like a 32nd of a turn to bust it loose. If its easier, just remove the cooler and remove the hoses out of the car where its easier to work on.
Trending Topics
12-31-03, 12:41 AM
#10
the two nuts were totally frozen, we just disconnected the banjo bolt off of the oil cooler and ran the hose up through.
so all is well, but the metal part of the hose still has a big kink in it so i'm gonna have to buy another one. anyone have one?
so all is well, but the metal part of the hose still has a big kink in it so i'm gonna have to buy another one. anyone have one?
01-12-04, 08:50 PM
#13
Zoom Zoom Boom!
Join Date: Mar 2003
Location: San Francisco, CA
Posts: 2,312
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to bring this back up from the dead but does anyone know what size exactly is the outer nut for the oil cooler line on the front cover? I bought a 23mm by accident and the largest Sears had was a 24mm in stock so I need to know what standard size will fit reasonably well.
The oil cooler lines is all that is holding me back on my engine removal!
The oil cooler lines is all that is holding me back on my engine removal!
