Im having a problem getting the sping to move the bottom one move finfe but the other is a pain. That sucker wont budge i tryed so many ways to get it to move but no luck mite be rusted 4 good even tho every thing eles works fine. Any suggestions???
#27
I'm pretty sure I just need a new one, as I believe the previous owner broke it.
mine refuses to move at all, I have the headliner off and I e tried the tool to do it manually and still no. When I hit the switch, the motor turns for maybe an eight of a turn and stops. Also, if I push up on the sunroof, the passenger side lifts freely.
mine refuses to move at all, I have the headliner off and I e tried the tool to do it manually and still no. When I hit the switch, the motor turns for maybe an eight of a turn and stops. Also, if I push up on the sunroof, the passenger side lifts freely.
#28
Rotary Freak
iTrader: (4)
OK so if one of the cables has broken how exactly do you replace it? They are crimped on to the slider so 1. where can a buy a new cable? 2. how do i put it on?
I'm pretty sure its broken, of course i'm going to have to pull it find out.
Good idea with the shims, that and the rewire should really help.
I'm pretty sure its broken, of course i'm going to have to pull it find out.
Good idea with the shims, that and the rewire should really help.
#29
"thats a space peanut"
Join Date: Jan 2010
Location: Southern California
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
I did much the same to mine cleaned out old grease with a rag and light oil... it didnt clean as well but the job did get done then i wiped it out and regreased it using a small brush like a painters brush. and i havent had to take it all apart yet but if i do i will be refering to this thread...
Thanks for the time and the Pictures on this.
Thanks for the time and the Pictures on this.
#30
Do Work
iTrader: (1)
Join Date: Sep 2005
Location: Richmond VA
Posts: 378
Likes: 0
Received 0 Likes
on
0 Posts
It would be a good idea to spray some break cleaner down in the copper tubes that
house the track driving springs (whatever those would be called). Because for me,
they became so clogged with dusty grease that on track seized which caused the
motor to break the drive spring. If you have the assembly out definitely blast out
those copper tubes. Nice write up!
house the track driving springs (whatever those would be called). Because for me,
they became so clogged with dusty grease that on track seized which caused the
motor to break the drive spring. If you have the assembly out definitely blast out
those copper tubes. Nice write up!
#33
Rotary Enthusiast
diggin up a old thread, but how does the roof lining fix the sunroof panel. Mine keeps falling you, It has al the lugs and slots in the clips at the back, but nothing holds it in.
Thanks for any help.
-Anth
Thanks for any help.
-Anth
#36
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
???..ya ok..."Codder pin".
.Cooter Pin..what the Duke's mechanic gets when he sees Daisy bent over in them shorts!!..Shwing!.
Cotter pin: http://en.wikipedia.org/wiki/Cotter_pin
.Cooter Pin..what the Duke's mechanic gets when he sees Daisy bent over in them shorts!!..Shwing!.
Cotter pin: http://en.wikipedia.org/wiki/Cotter_pin
#37
Winter Rotary
iTrader: (5)
???..ya ok..."Codder pin".
.Cooter Pin..what the Duke's mechanic gets when he sees Daisy bent over in them shorts!!..Shwing!.
Cotter pin: Video Link: http://en.wikipedia.org/wiki/Cotter_pin
.Cooter Pin..what the Duke's mechanic gets when he sees Daisy bent over in them shorts!!..Shwing!.
Cotter pin: Video Link: http://en.wikipedia.org/wiki/Cotter_pin
#42
Full Member
Join Date: Oct 2007
Location: Asheville, NC
Posts: 240
Likes: 0
Received 0 Likes
on
0 Posts
#45
Technician
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Virginia
Posts: 1,008
Likes: 0
Received 0 Likes
on
0 Posts
I never said I was good at spelling. Just good at taking things apart.

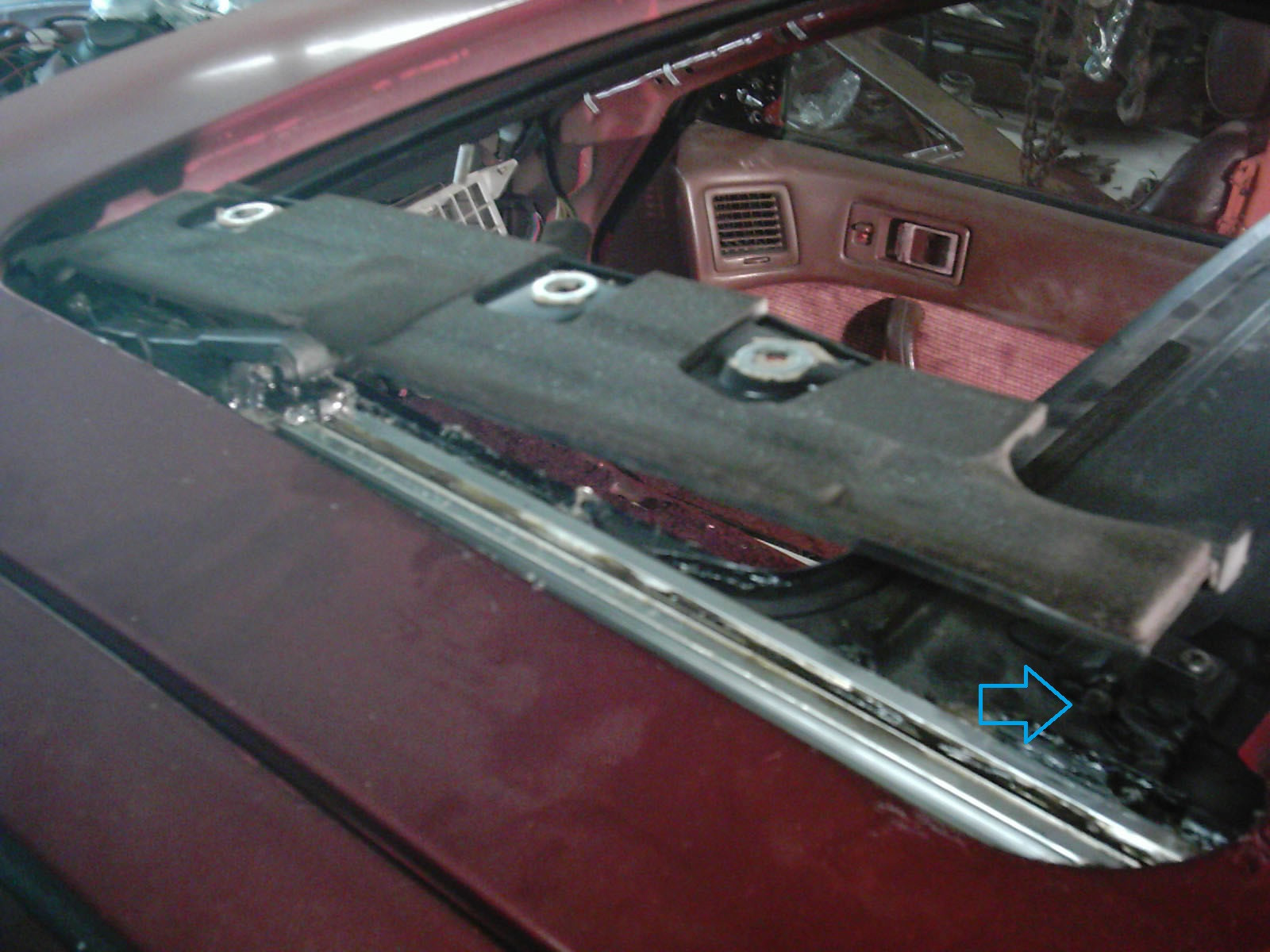

The spring in question connects directly in line with where it's mounted. A small metalic tab where the hook is looped on.
Crank on it manually, if it won't pop out help the sunroof by pushing on the back side. Once it's popped out you should find the process much easier to rotate.
Crank on it manually, if it won't pop out help the sunroof by pushing on the back side. Once it's popped out you should find the process much easier to rotate.
#46
Rotorhead for life
iTrader: (4)
This write up is long over due. <SNIP>
For those who have this problem or any of the symptoms of this problem such as:
1) Annoying pops or loud clicks and the sun roof doesn't raise or lower without help
2) One track slides while the other lags behind and there by makes the motor click
3) The alignment of the tracks keeps getting thrown off and thereby makes it impossible to close the window
4) When using the wrench it takes alot of force to close/open it. <SNIP>
For those who have this problem or any of the symptoms of this problem such as:
1) Annoying pops or loud clicks and the sun roof doesn't raise or lower without help
2) One track slides while the other lags behind and there by makes the motor click
3) The alignment of the tracks keeps getting thrown off and thereby makes it impossible to close the window
4) When using the wrench it takes alot of force to close/open it. <SNIP>
I do have a question though that I can't seem to find an answer for here or anywhere in the FSM - Is it possible to completely remove the cables/springs from the copper tubes and slide/trolley assemblies on each side, preferably with the sunroof assembly still in the car? Anyone know how to do this without breaking anything? FWIW, at this point I have the headliner removed, sunroof panel & motor unit is removed, but the sunroof assembly is still in the car. I could remove the sunroof assembly from the car, but would rather not if possible. Goal is to get a more complete cleaning of the cable/springs, copper tubes & tracks and all friction points before re-lubing & reassembly.
Thanks!
#47
Rabbit hole specialist
iTrader: (11)
Pete, you may wish to take a look at the pictures of a sunroof out of the car in my thread here:
https://www.rx7club.com/2nd-generati.../#post12329107
It might be possible to remove the cables, but if the sunroof frame were to remain in the car, you would need to unscrew the aluminum slide rails from the frame. I can't verify if this would work or not, but the pictures should give you a good idea on if you want to give it a try or not.
As an aside, though it isn't the preferred method, removing the sunroof assembly is not as daunting as I thought it would be. I removed and reinstalled myself, but a second person would make the job much easier.
https://www.rx7club.com/2nd-generati.../#post12329107
It might be possible to remove the cables, but if the sunroof frame were to remain in the car, you would need to unscrew the aluminum slide rails from the frame. I can't verify if this would work or not, but the pictures should give you a good idea on if you want to give it a try or not.
As an aside, though it isn't the preferred method, removing the sunroof assembly is not as daunting as I thought it would be. I removed and reinstalled myself, but a second person would make the job much easier.
Last edited by JerryLH3; 04-01-19 at 02:10 PM.
#48
Rotorhead for life
iTrader: (4)
Pete, you may wish to take a look at the pictures of a sunroof out of the car in my thread here:
https://www.rx7club.com/2nd-generati.../#post12329107
It might be possible to remove the cables, but if the sunroof frame were to remain in the car, you would need to unscrew the aluminum slide rails from the frame. I can't verify if this would work or not, but the pictures should give you a good idea on if you want to give it a try or not.
As an aside, though it isn't the preferred method, removing the sunroof assembly is not as daunting as I thought it would be. I removed and reinstalled myself, but a second person would make the job much easier.
https://www.rx7club.com/2nd-generati.../#post12329107
It might be possible to remove the cables, but if the sunroof frame were to remain in the car, you would need to unscrew the aluminum slide rails from the frame. I can't verify if this would work or not, but the pictures should give you a good idea on if you want to give it a try or not.
As an aside, though it isn't the preferred method, removing the sunroof assembly is not as daunting as I thought it would be. I removed and reinstalled myself, but a second person would make the job much easier.
In theory removing the whole assembly should solve the problem of thorough cleaning. With it all out of the car, I won't have to worry about getting solvent on things it shouldn't. Also I suppose I should pull it out anyway to check for any rusty surprises that may lurking under the tracks, though it looks pretty clean from what I can see on the undersides with the headliner off (no perforation anywhere or visible signs of rot)
EDIT: Just compared Jerry's pictures with my sunroof assembly as it sits in the car, and verified that you can't access all of the screws that would be required to remove the tracks with the sunroof assembly in the car. The roof itself prevents access to the screws in the corners, so the whole assembly would need to come out to remove the tracks.
Last edited by Pete_89T2; 04-01-19 at 04:05 PM.
