Stupid strut question :facepalm:

Does a 2nd gen have struts both front and rear?

I hate to admit it, but I don't actually know what constitutes a strut.
Reply
Old Oct 3, 2011 | 04:59 PM
  #2
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
yes they do.

a mcpherson strut is a shock absorber that has a spring perch and spring integrated into the shock itself.
Reply
Old Oct 3, 2011 | 05:14 PM
  #3
MmSadda's Avatar
Thread Starter
Rotary Freak
iTrader: (2)

Joined: Jul 2006
Posts: 1,595
Likes: 2
From: Columbus, OH
Originally Posted by Karack
yes they do.

a mcpherson strut is a shock absorber that has a spring perch and spring integrated into the shock itself.
Awesome! Thanks for the proper explanation - I was having trouble finding one that made sense online.

Looks like it's really easy to remove the struts on these cars, no spring compressor needed, right?
Reply
Old Oct 3, 2011 | 05:16 PM
  #4
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
you only need a spring compressor if you plan to replace either the spring or the shocks. no compressor needed to pull the strut out of the car, no.
Reply
Old Oct 3, 2011 | 11:54 PM
  #5
Derekcat's Avatar
Rotary Zealot!
Tenured Member: 20 Years
iTrader: (8)

Joined: Jun 2004
Posts: 1,736
Likes: 2
From: Milwaukie, Or
and if you can push down enough[and have a friend nearby to put the nut on] you don't even need the compressors to put the stock spring back on.. RB [1" drop] springs don't even need you to compress it to get it back together..
Though, be careful. ^_^
Reply
Old Oct 4, 2011 | 05:52 PM
  #6
Osirus9's Avatar
Jackstand Drifter
Tenured Member 05 Years
iTrader: (10)

Joined: Dec 2006
Posts: 1,065
Likes: 1
From: Chicago, IL
^^ That's a strut in Derekcat's sig

(The thing with the red spring on it)
Reply
Old Oct 4, 2011 | 10:38 PM
  #7
DeaconBlue's Avatar
Living on the North Coast
iTrader: (31)

Joined: Mar 2009
Posts: 600
Likes: 7
From: Avon Lake

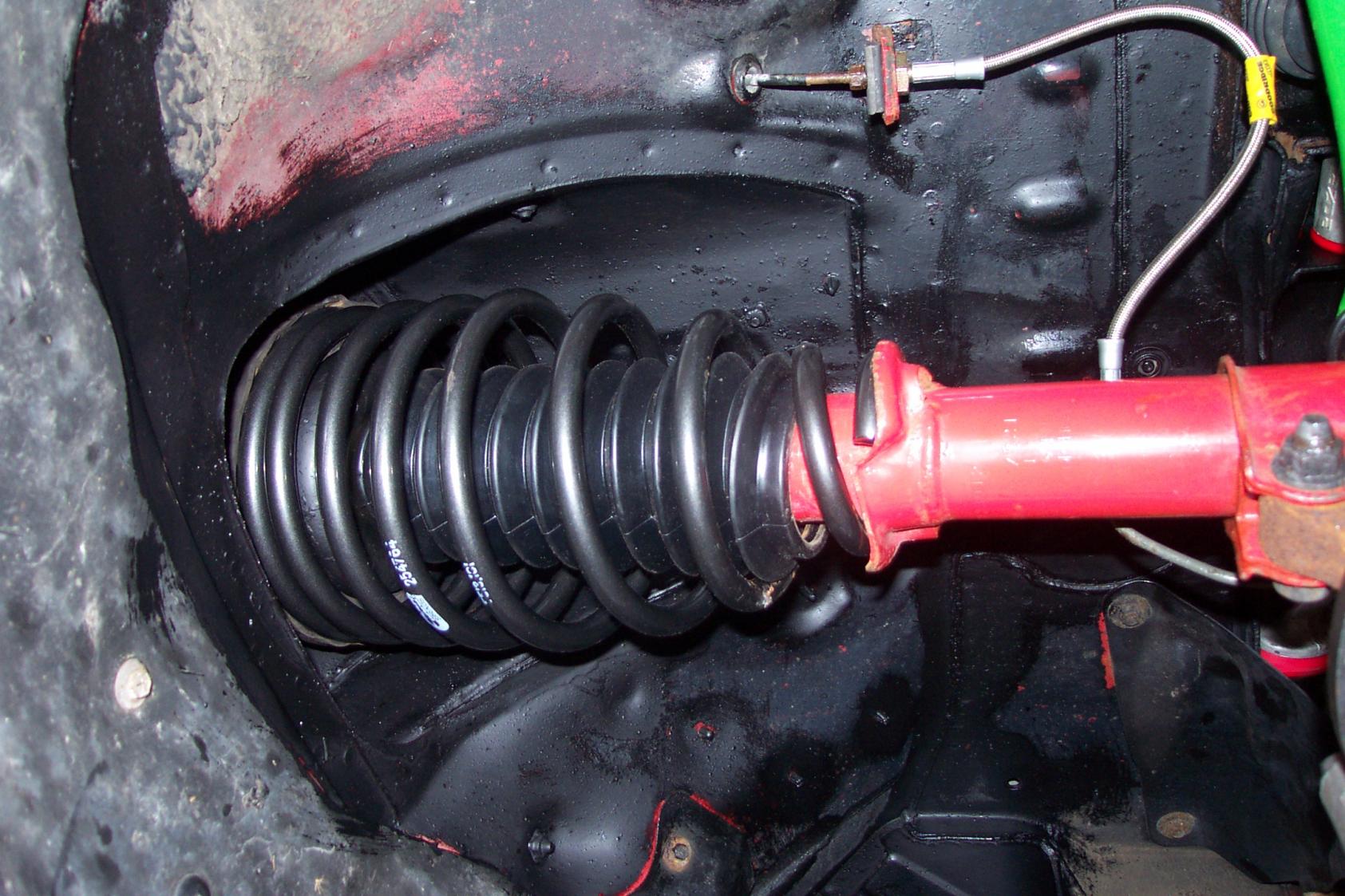

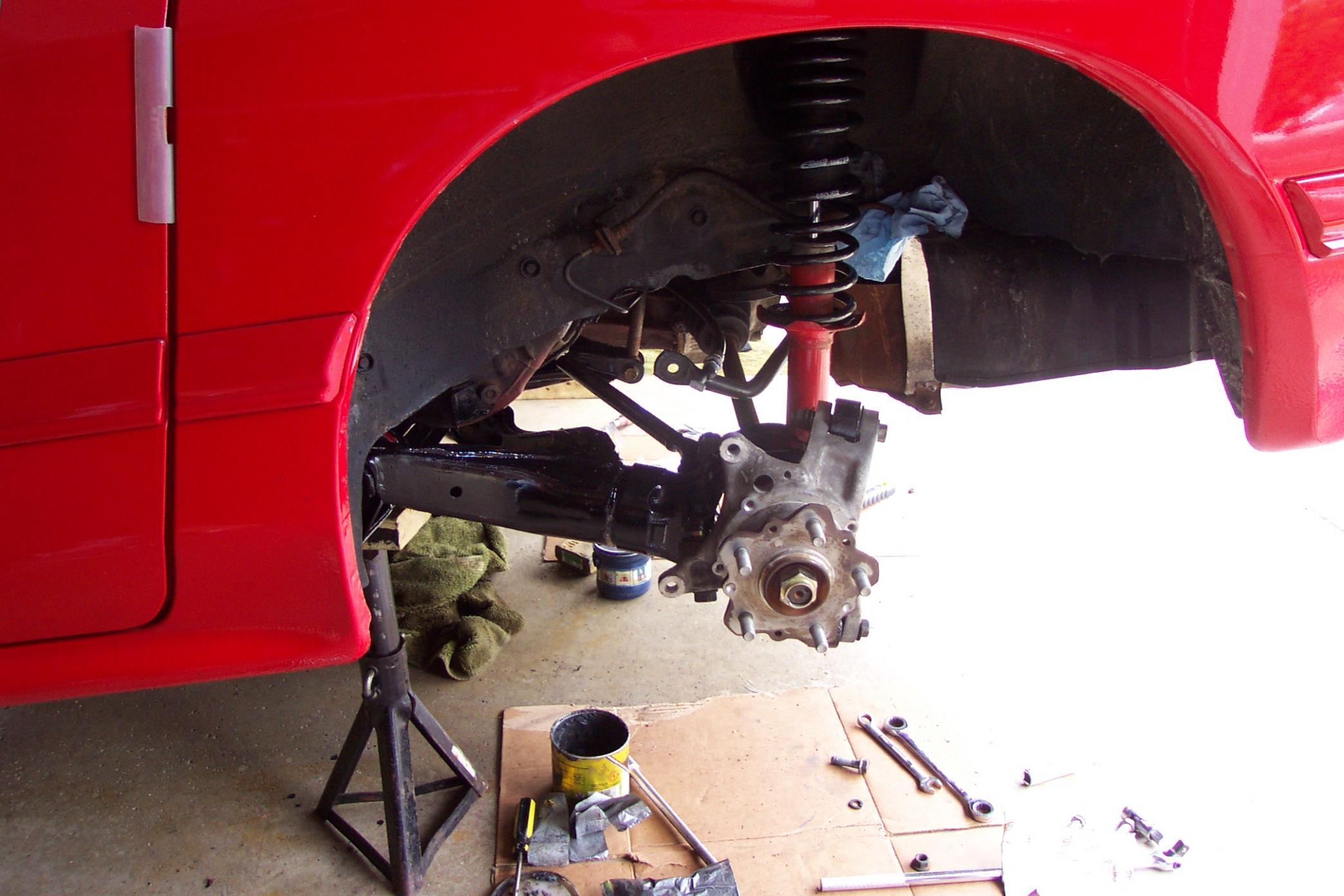

Yes McPherson strut up front with Chapman strut in the rear. Both have concentric mounted springs. The difference between the two designs is the the McPherson also acts as the upper control arm in the front suspension.

See the attached photos.
Attached Thumbnails Stupid strut question :facepalm:-dcp_1754.jpg   Stupid strut question :facepalm:-dcp_1818.jpg
Reply
Old Oct 5, 2011 | 08:32 AM
  #8
Travis R's Avatar
trying to build a racecar
Tenured Member 15 Years

Joined: Sep 2002
Posts: 580
Likes: 1
From: Austin, Tx.
Uh, it absolutely does NOT have a Chapman strut in the rear.
It's called a strut when it takes side loads, and it necessary to "locate" the wheel. The rear suspension on an FC is a semi trailing arm. Front is a MacPherson strut.
http://en.wikipedia.org/wiki/Chapman_strut
Reply
Old Oct 5, 2011 | 10:20 AM
  #9
DeaconBlue's Avatar
Living on the North Coast
iTrader: (31)

Joined: Mar 2009
Posts: 600
Likes: 7
From: Avon Lake
You are correct, I was confusing it with the rear strut on the S30 Datsun cars (240Z-280Z).
