Linguo415

iTrader: (1)

Whats up everyone? Im starting a build thread for my 89 turbo. Its the first turbo FC ive ever owned. Im curretly waiting for my new engine to be delivered so I can drop it in with my boy.
Ive started this thread because I will have lots of questions as I go and it would be nice to get some advice and opinions as I progress with the build. I plan on later rebuilding the current blown engine that sits i the car now. I also will be swapping out the blue and grey interior it has for all black. So nothing too crazy at the moment.

Ill post pics as I go.

Just thought it would be fun.

K-Tune

iTrader: (26)

I think you made this thread to keep from having to use the search feature.

EVERY question you are going to ask has been covered.

Linguo415

iTrader: (1)

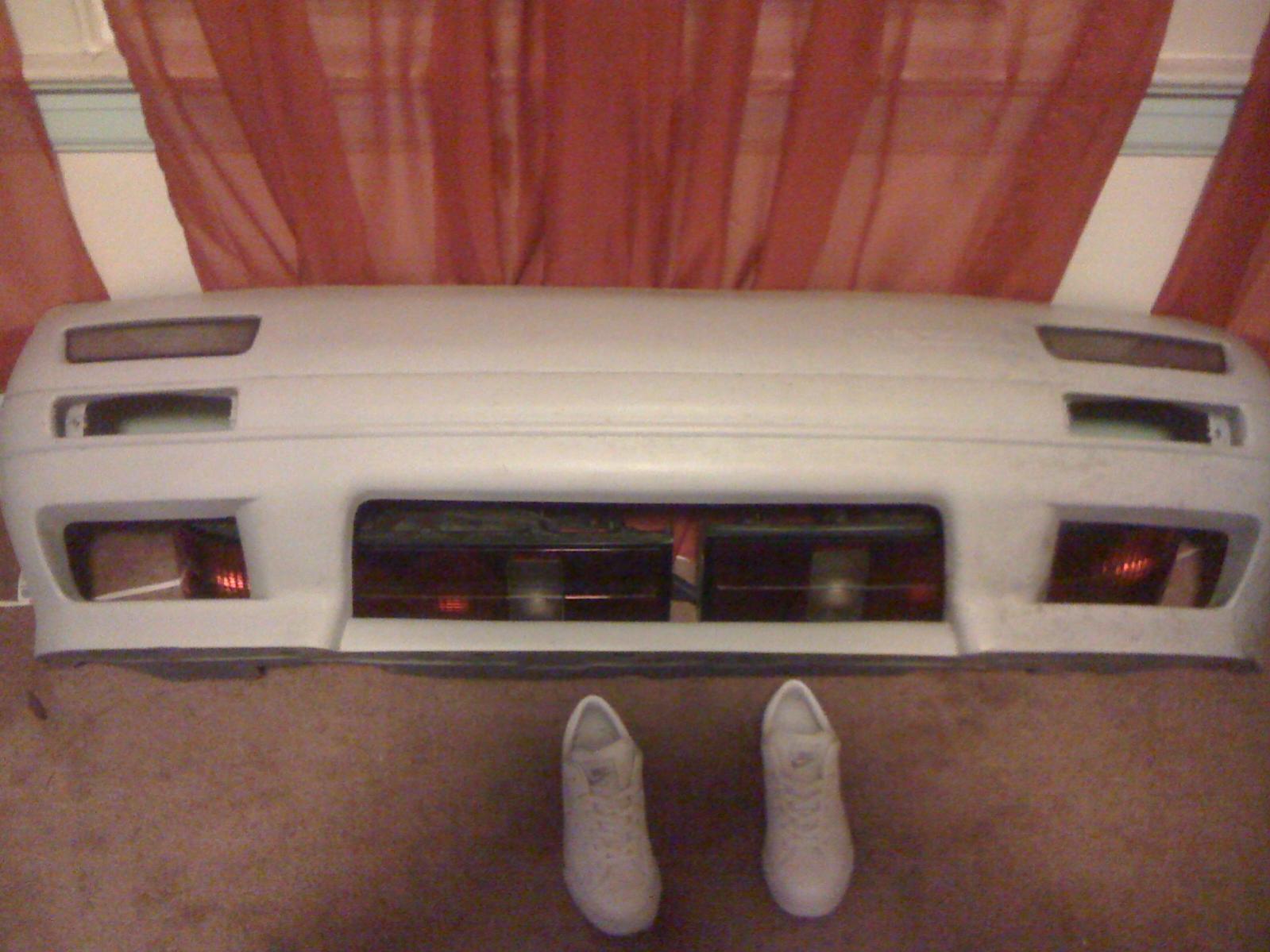

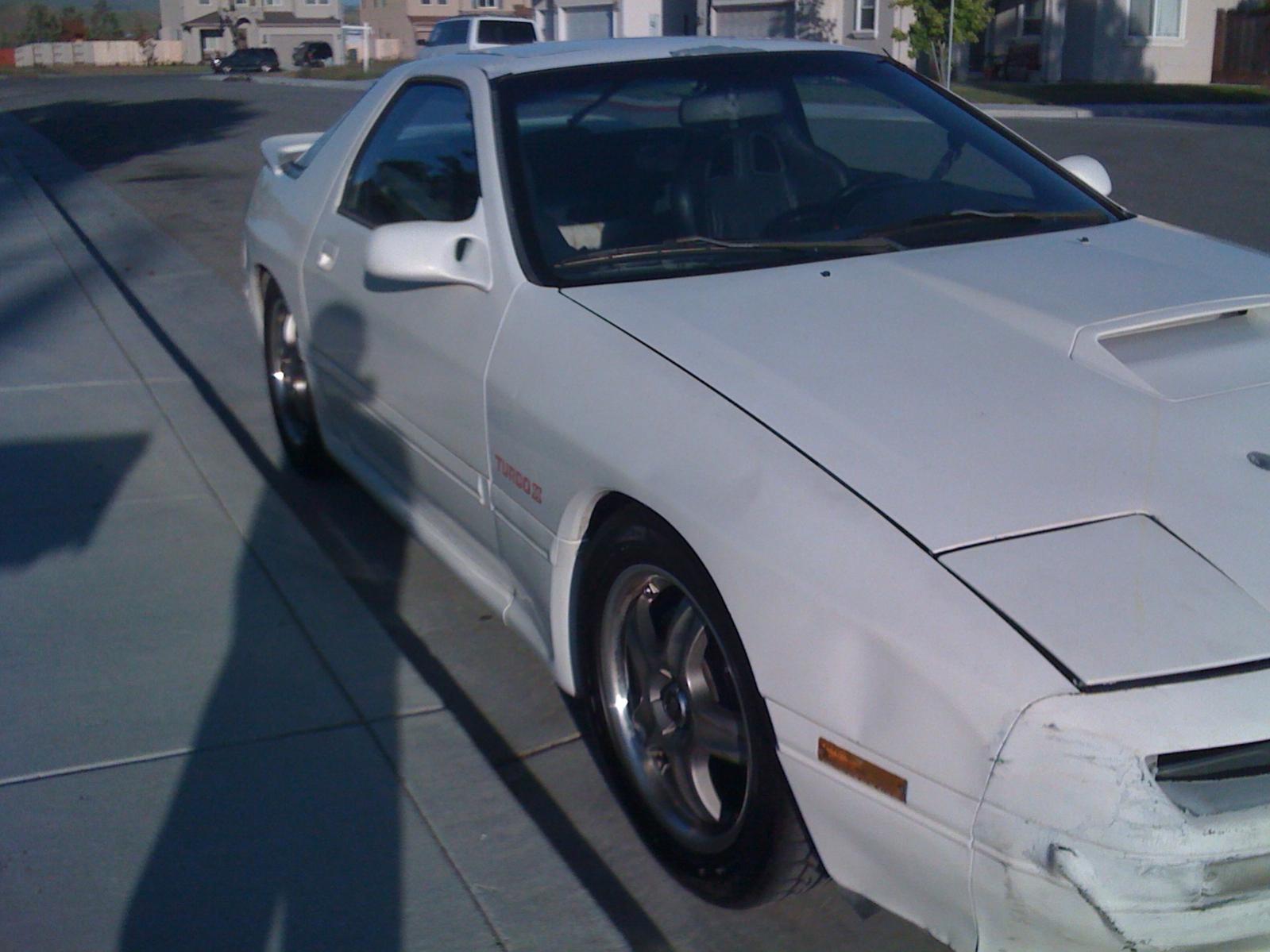

This is what it looks like right now. Ive got another stck front end to put on it with JDM ftp lights.

Linguo415

iTrader: (1)

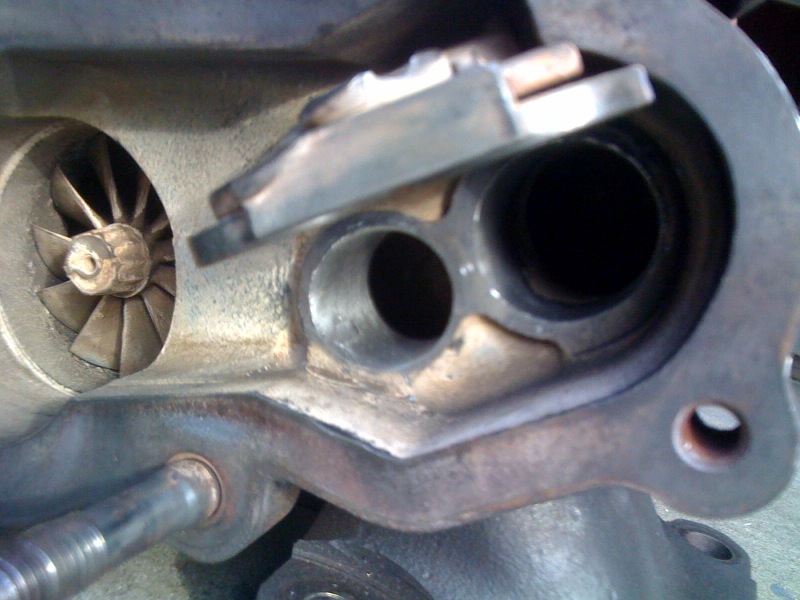

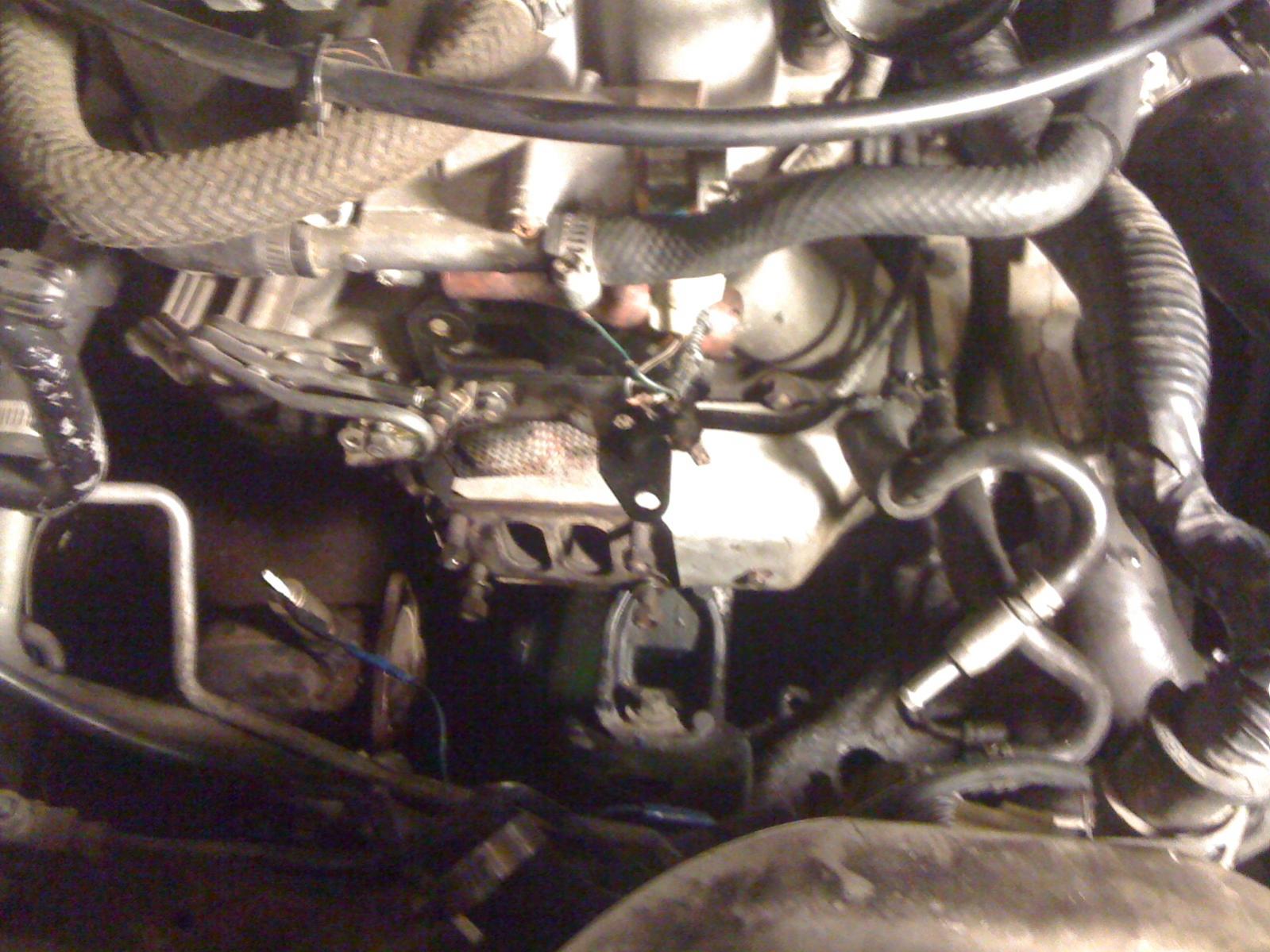

When I took out the turbo and cleaned and ported the waste gate. You ca fit a quarter through the bigger port. I only boost to 5psi now. Nothing too crazy going on right now. Just basic reliablilty mods at the moment. youve gotta start somewhere right?

I plan on goin with a halteck p1000 in the future and upgrading injectors. I have a supra fuel pump ready to be put in already.

K-Tune

iTrader: (26)

Nice edit. Keep it productive.

Linguo415

iTrader: (1)

Well i dont have many questions yet. Ive got my mazda FSM so i know Ill be able to find what i need in there. I cat wait for my new engine to get here.

Linguo415

iTrader: (1)

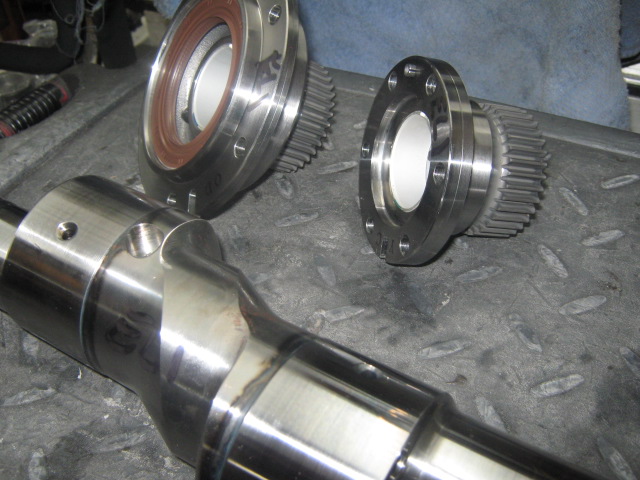

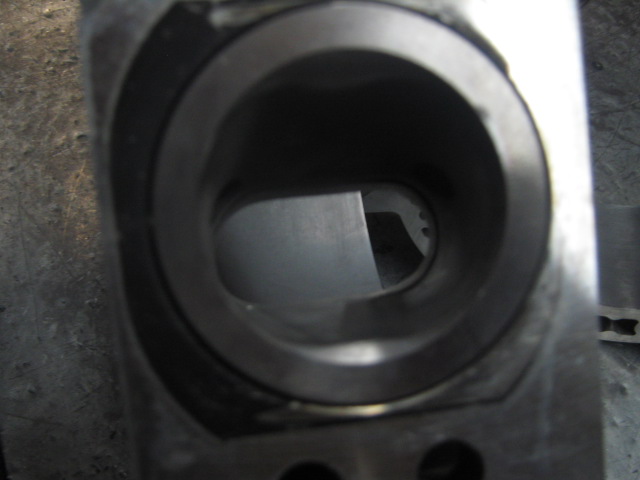

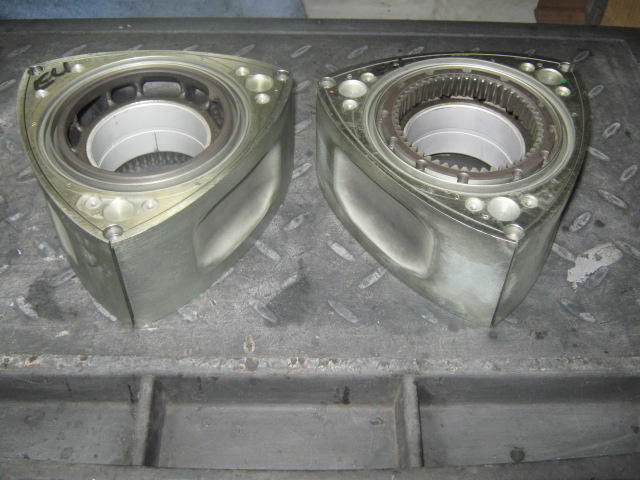

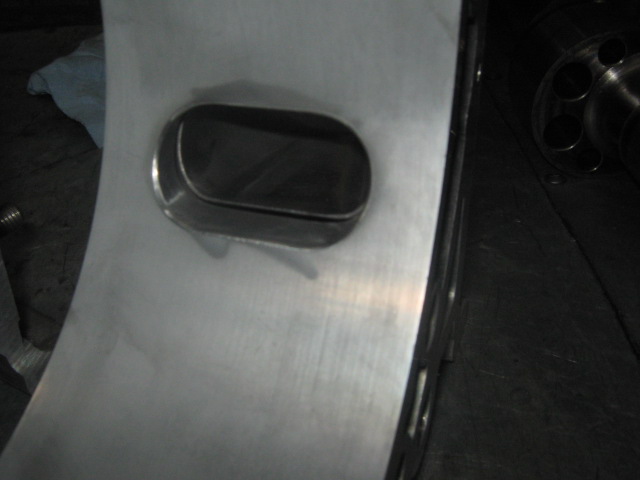

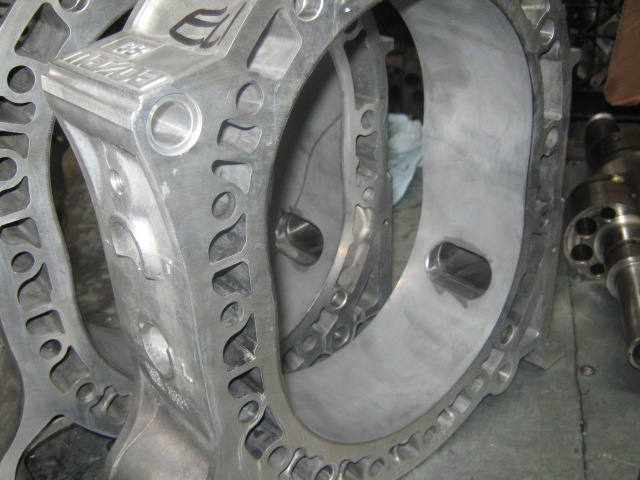

Got some pics of my new engine parts. New Rotor housings, S6 rotors and E shaft. RX8 stationary gears.

Linguo415

iTrader: (1)

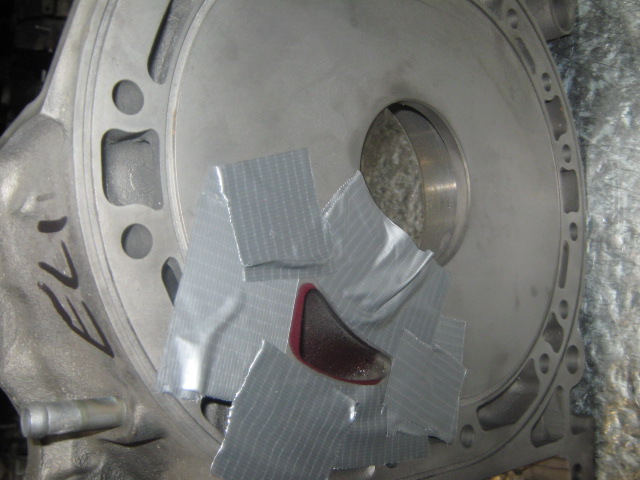

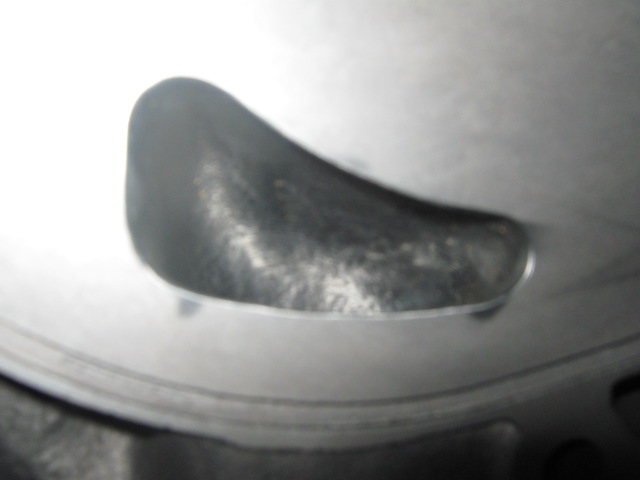

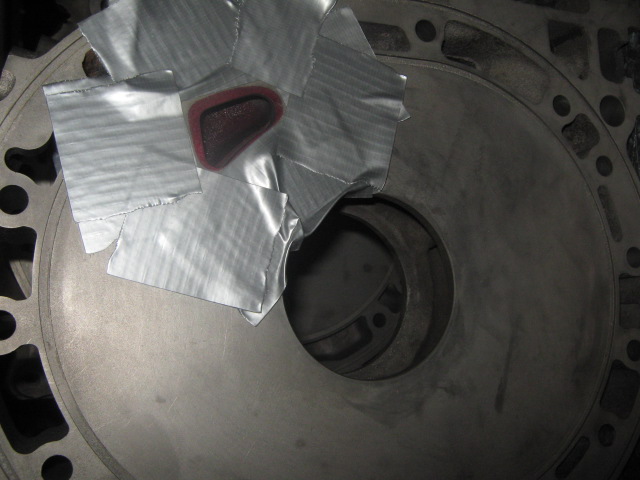

A couple of portig pics

RotaryRabbit

subscribed. love build threads - they keep me inspired that the FC is capable of reliable turbo power.

xeccentric

iTrader: (2)

OHHH s6 rotors. Fancy -_- /jealous. AHAHA BTW I decided to not trade for the s14. After that drive we took in my FC, I decided to continue with it. I hadn't boosted like that in a while. Remember If you got questions i'm only a few blocks away.

xeccentric

iTrader: (2)

Oh and im subscribing too

diabolical1

iTrader: (3)

you're looking at it the right way. good luck.

who's building the engine?

Linguo415

iTrader: (1)

Thanks guys. I went with these parts with longevity in mind. Ofcourse it's all about tuning in the end but I believe it'd good to have a good base to start with also. I think it's a little bit of an over build because this engine will be able to flow about 500hp with a full stand alone and all the extra boost goods. I only plan on getting to about 350 or so if that. After riding in xeccentrics fc the other day I may be happy with very minor upgrades. It's plenty fast and responsive. As far as who built my new engine it's RX7 specialties in Canada. I know I know why so far. It worked out real well for this build. I'll be taking the old engine out of the bay tomorrow and taking pics also. I've never done this before but I have my fsm on hand. On hand. So here we go.

Linguo415

iTrader: (1)

Good I'm glad. After driving it I was sad to think that you were going to trade it for a 240. I like 240 but I wouldn't trade my fc for one. I'll hit you up soon.

Linguo415

iTrader: (1)

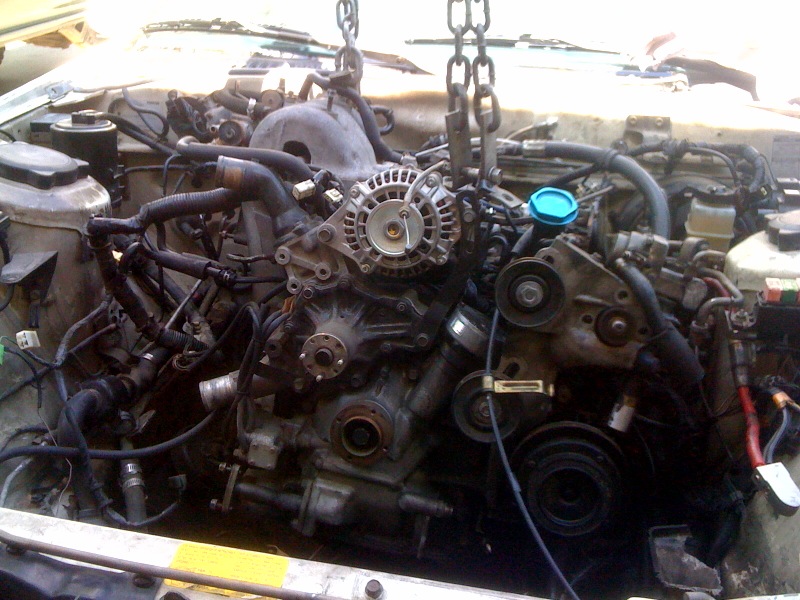

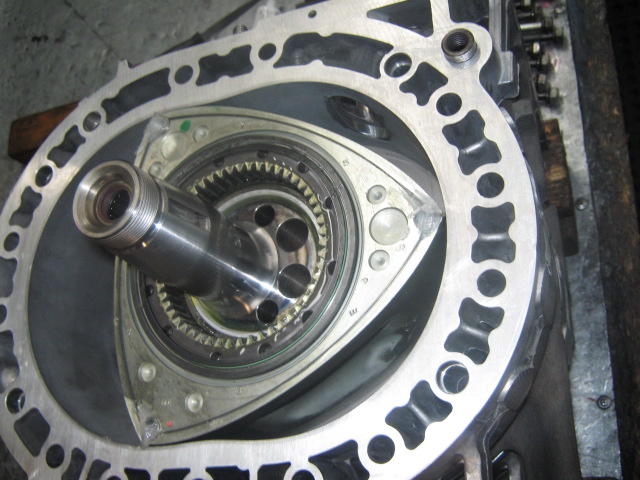

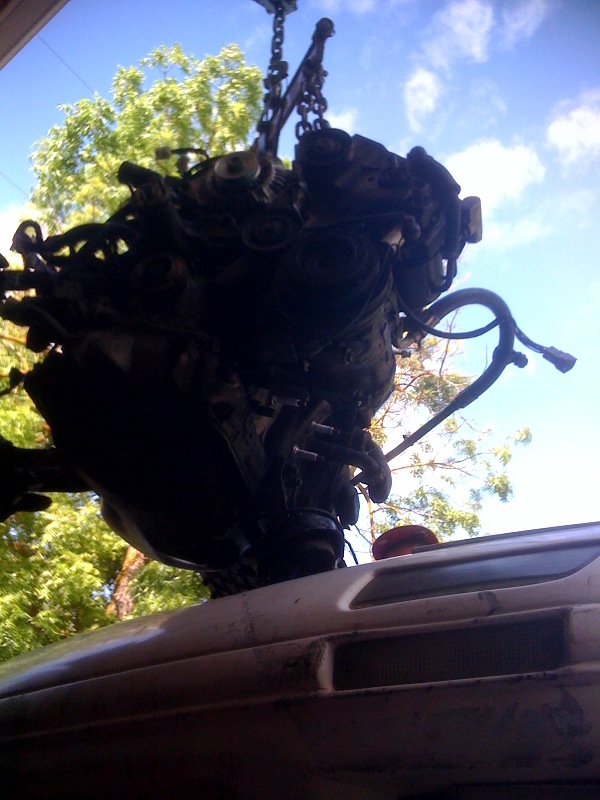

Got to work this weekend with my buddy and we pulled the old egine out (Fun) and my builder sent me more pics of the new engine semi assembled.

Len-Len

iTrader: (9)

subscribed. New engine looks damn good

Linguo415

iTrader: (1)

Hey thanks man. I can't wait till it gets here myself.

Linguo415

iTrader: (1)

So Ive started transferring parts over from the old block onto my new one and I have a question now. i know that on the crank angle sensor the dimple has to line up with the protrusion, but how do i make sure it stays that way when I install it in the socket? I did it like 10 times and i would pull it out to see if it stayed in place but it wouldnt. What do I do?

younG_Gunner

iTrader: (2)

Haha. K-tune called it. This has been covered. But, to make sure it keeps still, unscrew the two screws on top of the CAS and the rubber piece on the gear will point to the lower left end, lining up to a square piece. When its done correctly, the lower gear and dimple should match.

Linguo415

iTrader: (1)

Ha. I figured I had to open it up. I was just afraid of messing the cas up. Thanks for the info. I was bound to ask something at some point I guess.

I did my timing though. It was a little tricky with the RB crank puley but I got it done.

Linguo415

iTrader: (1)

so I havent been doing much with stacee for the last month. I have no money and I need to replace my water pump housing.

rotary#10

iTrader: (38)

What's up does the car run? Lets see some pictures of it in action!
