Split air pipe only flows toward the cat?
#1
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Split air pipe only flows toward the cat?
After a little discussion yesterday about exhaust pressure being used to operate the port actuators, I went digging through some parts. I found that a series 5 split air pipe will only allow air to flow from the air pump to the cat. I was hoping I could use the pressure from the exhaust through the split air pipe to supply the needed pressure to open the 6th ports and VDI. I guess I could cut off the valve section that prevents flow back to the air pump, but I'm beginning to think that there will not be enough pressure in that line. If in stock form the air pump was pushing air into the cat through that pipe, then there must have been more pressure from the pump than the exhaust or the air from the pump would have never made it to the cat. Does anyone know how much air pressure would be present through the split air pipe hooked up to a presilencer?
91 vert
91 vert
#2
Rotary Enthusiast
Re: Split air pipe only flows toward the cat?
Originally posted by Samps
Does anyone know how much air pressure would be present through the split air pipe hooked up to a presilencer?
Does anyone know how much air pressure would be present through the split air pipe hooked up to a presilencer?
You might get enough pressure, but it may not be at the desired RPM range.
#4
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
samps:
it looks like you want to have (on your S5) a setup similar to what's on the S4. Right ?
on the s4, the exhaust pressure finds it way to the actuators from the cat via the split air pipe via a tee just before the check valve (which prevents exhaust gases to go back to the ACV)
in your case, with your setup, as wozzoom said, they probably will open but at higher rpms, maybe 4,500
hugues -
it looks like you want to have (on your S5) a setup similar to what's on the S4. Right ?
on the s4, the exhaust pressure finds it way to the actuators from the cat via the split air pipe via a tee just before the check valve (which prevents exhaust gases to go back to the ACV)
in your case, with your setup, as wozzoom said, they probably will open but at higher rpms, maybe 4,500
hugues -
#5
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
OK thanks hugues, I was unaware that the series 4s used a "T" before the check valve. I was wondering how the series 4s worked; I thought maybe they had a different split air pipe without the check valve. I guess I could just leave the airpump in and just try out the split air pipe to see if it works. Anybody have any ideas on how to increase the pressure in that line without plugging up the exhaust? How about decreasing the diameter of the outlet? And do you think the heat from the exhaust will damage the rubber inside the actuators?
#6
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Another option: Maybe I could try just wiring open the 6th ports and use the split air pipe to actuate the VDI only. I have a GTUS rear so I'm above 4 grand most of the time anyways, and the VDI seems to have a much bigger impact on performance. Although I would prefer to have both systems fuctioning.
#7
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
If in stock form the air pump was pushing air into the cat through that pipe, then there must have been more pressure from the pump than the exhaust or the air from the pump would have never made it to the cat.
The S5 ports open up via air pump pressure only (I think).
The injected air from air pump to the cat via the split air pipe and the exhaust flow "add up" in terms of the pressure you would see at the actuators (at least, that's how I see it)
but then what do I know ? since everybody says that on the S4, only exhaust backpressure opens the port.
hugues -
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Just curious. You have a 91vert, a series five. What's the deal? Did you take the airpump off? Or do away with the solenoids for the VDI and aux ports?
On a series four, the tee for the aux ports is b/t the checkvalve and the cat. The amount of air from the airpump/acv varies. When the pedal is to the metal, the relief valve on the acv opens and dumps overboard, so there won't be much air going to the split air pipe. Something to take into consideration.
I just wrote because I can't figure out what your up to.
On a series four, the tee for the aux ports is b/t the checkvalve and the cat. The amount of air from the airpump/acv varies. When the pedal is to the metal, the relief valve on the acv opens and dumps overboard, so there won't be much air going to the split air pipe. Something to take into consideration.
I just wrote because I can't figure out what your up to.
#9
Rotary Enthusiast
Originally posted by Samps
Another option: Maybe I could try just wiring open the 6th ports and use the split air pipe to actuate the VDI only. I have a GTUS rear so I'm above 4 grand most of the time anyways, and the VDI seems to have a much bigger impact on performance. Although I would prefer to have both systems fuctioning.
Another option: Maybe I could try just wiring open the 6th ports and use the split air pipe to actuate the VDI only. I have a GTUS rear so I'm above 4 grand most of the time anyways, and the VDI seems to have a much bigger impact on performance. Although I would prefer to have both systems fuctioning.
I honestly think you should try to pursue the electronic actuation of the 6-ports and VDI. On my "86 Mutt", I opperate the VDI and 6-ports with one RPM switch and one of the left over solenoid valves from the vacuum spider. When I dynoed the 86 last september, I picked up about 12 RWHP on the bottom end having the 6-ports open at 4500 RPM vs. wiring them open.
To actuate your system is very easy, all you need is an electric air pump and a 12V relay! You can dig up an air pump from an old cadillac, a late model Vet or buy one for around 30-40 bucks.
Wire the 12V relay to your existing 6-port actuator solenoid so that when the solenoid sees power, the relay switches. Then run 12V power from the battery to the air pump. When the relay kicks on, the air pump will kick on and provide you with more than enough pressure for the VDI and 6-Ports. PM me if you have questions.
Jeff
#10
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Hehehe, HAILERS! Sorry, maybe I didn't give enough info. Right now I have the air pump running directly into a single hose which has three hose barbs in it. Two of the barbs go to the 6th port actuators and the other goes to the VDI actuator. I do not have any solenoids or any of the spider in fact. I also do not have the ACV. My system includes only the air pump and the actuators. It has been working flawlessly for about 6 months now, but it has some drawbacks. The air pump is routed into a single hose which just dumps air right on top of the headers. The air pump is pretty loud for those of you who have never left it vent to atmosphere (that little silencer was there for a reason). Anywho, the car is loud enough as it is without the added noise from the airpump.

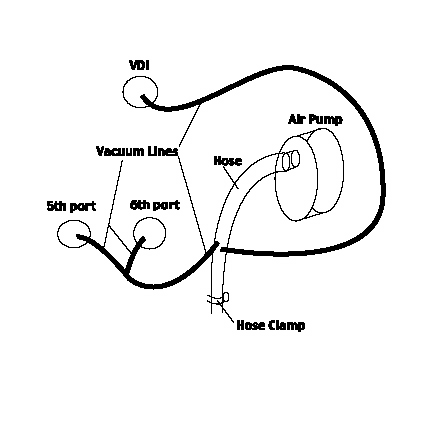

Here is a pic of what is going on now. I would like to just replace the airpump as the source of air pressure with the exhaust. I am not worried about smog, this car is mileage exempt.
Here is a pic of what is going on now. I would like to just replace the airpump as the source of air pressure with the exhaust. I am not worried about smog, this car is mileage exempt.
#11
Rotary Enthusiast
Originally posted by Samps
Two of the barbs go to the 6th port actuators and the other goes to the VDI actuator. I do not have any solenoids or any of the spider in fact. I also do not have the ACV. My system includes only the air pump and the actuators. It has been working flawlessly for about 6 months now, but it has some drawbacks. The air pump is routed into a single hose which just dumps air right on top of the headers. The air pump is pretty loud for those of you who have never left it vent to atmosphere
Two of the barbs go to the 6th port actuators and the other goes to the VDI actuator. I do not have any solenoids or any of the spider in fact. I also do not have the ACV. My system includes only the air pump and the actuators. It has been working flawlessly for about 6 months now, but it has some drawbacks. The air pump is routed into a single hose which just dumps air right on top of the headers. The air pump is pretty loud for those of you who have never left it vent to atmosphere
#13
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
They are connected directly to the air pump via vacuum hose. The pic pretty much says it all. I still have all of the solenoids and even located the corresponding wires from the ECU that used to control the solenoids. An electrical setup is another option, but I like mechanical things.
This is not so much of a modification; it is more of a "I'm gonna be bored on Sunday, what can I do to the car" type thing.
This is not so much of a modification; it is more of a "I'm gonna be bored on Sunday, what can I do to the car" type thing.
#14
Yup, still here
iTrader: (1)
Quick semi-related question:
On an S4 with no air pump/acv, what should I do with the split air pipe? The "T" goes to the actuators as normal, but the other end of the check valve is open to the air. (because there is no tube going to the air pump) Should I plug it or leave it as is - or does it make no difference?
Thanks
On an S4 with no air pump/acv, what should I do with the split air pipe? The "T" goes to the actuators as normal, but the other end of the check valve is open to the air. (because there is no tube going to the air pump) Should I plug it or leave it as is - or does it make no difference?
Thanks
#16
Rotary Enthusiast
Originally posted by hugues
WOZZOOM:
sounds like a good setup (with electric air pump) !!!
Hugues -
WOZZOOM:
sounds like a good setup (with electric air pump) !!!
Hugues -
Now if Samps wants to try this method with exhaust back pressure instead of wiring in an electric air pump???
#17
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
I'm not AGAINST the electrical option. I just would like to give the back pressure route a chance first. If it does work it will be very crude without any type of adjustment and may even prove to be unreliable in the years to come. But I can do it at home without actually buying anything and it will be easily returned back to the way it is now if it does not work. I have spent thousands on this car and money is not really an issue, I really just like to fart around with stuff when I'm bored, and electrical equipment doesn't usually present allot of farting around opportunities.
#18
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
Exhaust pressure is max at beginning of exhaust tract, so I would put the pressure pipe feedin the actuators as close to the exhaust port as possible, but
is it enough to open the ports, that I don't have a clue
also, the exhaust flow is a pulse that is pretty much undampened so close to the ports, so that could create problems but I assume, at high rpms, that might be ok.
hugues -
is it enough to open the ports, that I don't have a clue
also, the exhaust flow is a pulse that is pretty much undampened so close to the ports, so that could create problems but I assume, at high rpms, that might be ok.
hugues -
#19
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
I have no plan on making any holes in my exhaust. I already have a Racing Beat presilencer which has that little tube hanging out the side of it. Right now I have a bolt threaded into it to plug it up. But I can connect the split air pipe to it within minutes and run some hoses. It probably won't work but if nobody can say it deffinitely won't work then I'm gonna try it. Even if it doesn't work, it will at least prove that it can't be done and I can just go about my way.
#21
Senior Member
Join Date: Sep 2002
Location: "You take my car, I take your knee caps"
Posts: 724
Likes: 0
Received 0 Likes
on
0 Posts
I am sooo lost by this damn thread, to put it simply, you are trying to get your 5th and 6th ports working becuase you have a strait through exhaust...but essentially they should be working becuase arent the s5's only actuated by electric anyway? or something? i thought they stilll worked with strait through exhaust.
#22
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Didn't work! Not enough pressure. The actuators didn't open up untill almost 7k and anywhere under that they were bouncing violently. This idea should go away now.
#24
~~~~~~~~~~~~~~~~~~~~~~~
Thread Starter
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
The 86 base does not have a VDI (Variable Dynamic Intake), this feature was only available on the series 5 (89-92). The ports should open at about 3800 rpm.
#25
Rotary Enthusiast
Originally posted by Samps
Didn't work! Not enough pressure. The actuators didn't open up untill almost 7k and anywhere under that they were bouncing violently. This idea should go away now.
Didn't work! Not enough pressure. The actuators didn't open up untill almost 7k and anywhere under that they were bouncing violently. This idea should go away now.
