Here ya go guys thanks for all the questions and and information everyone on the forum has provided me with.
I tore apart everything on this motor except the LIM and the exhaust and turbo stuff etc....
Replaced all of the following
-BAC valve gasket

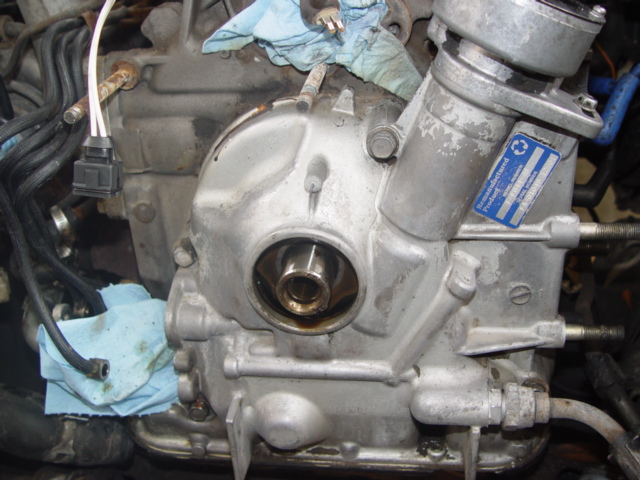

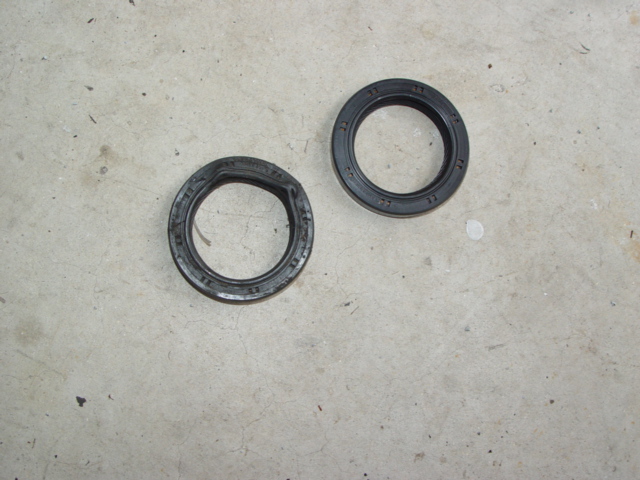

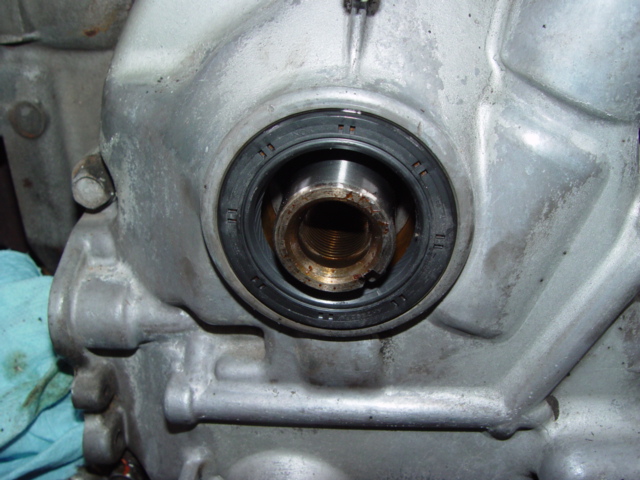

-Front main oil seal
-All turbo return line gaskets

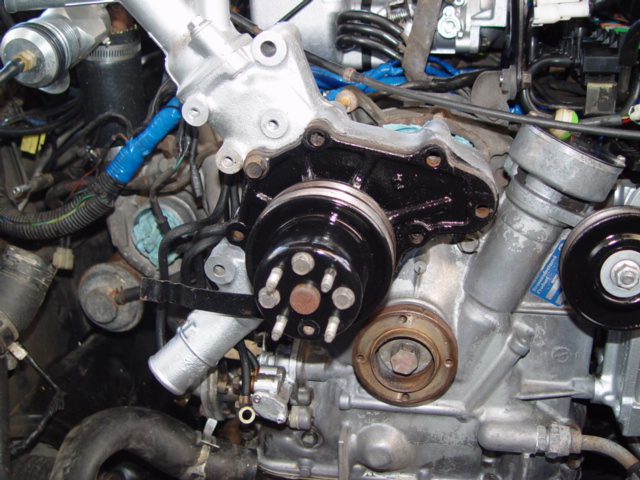

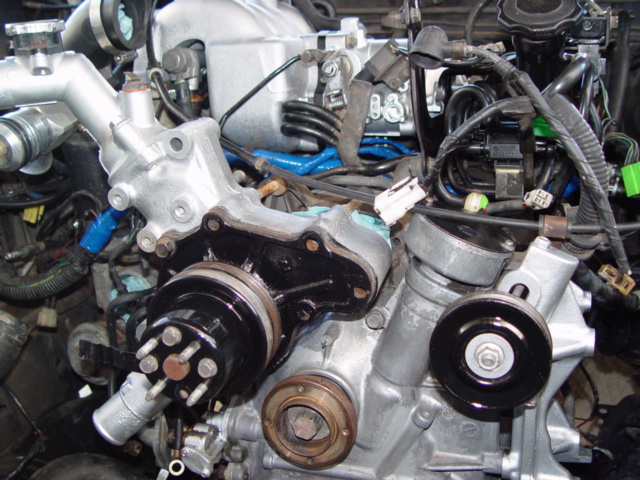

-Water pump and gasket with water pump housing to motor gasket
-Fuel injector harness clips

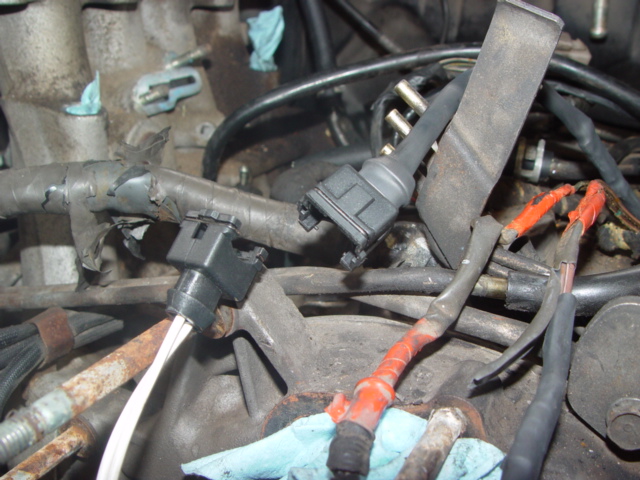

-Re-did (knock sensor wiring, water temp sensor wiring and a couple of other clips -that needed some TLC)
-Painted and cleaned everything i removed.

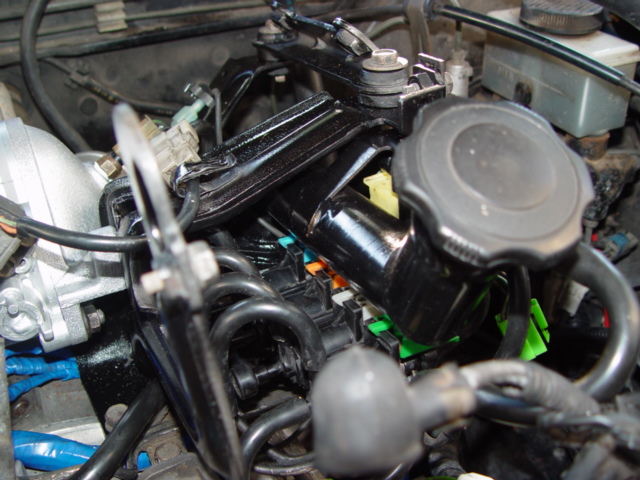

-Resealed the oil filler neck to block which is why the whole engine bay was covered in oil crud.
-new fuel lines

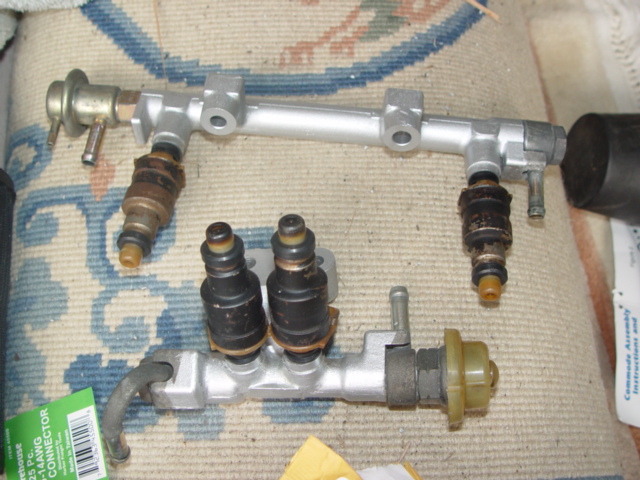

-All new injector upper and lower grommets and O-rings
-new vacuum lines for Oil squirter air bleeds and some other new vacuum lines where they were needed.
-New intercooler hoses, except for intercooler to Throttle Body hose.
-New OMP O-ring

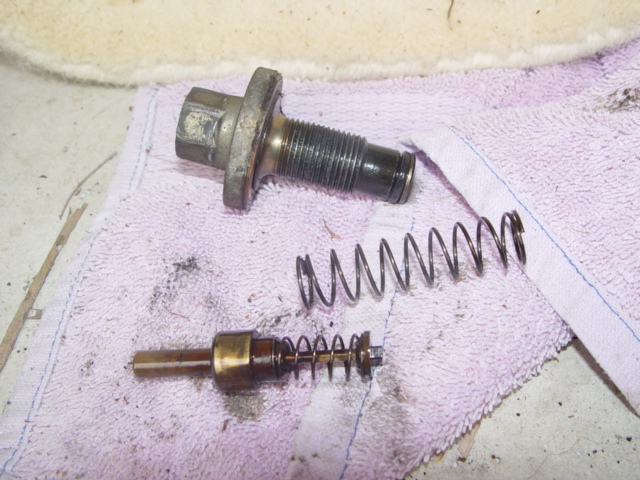

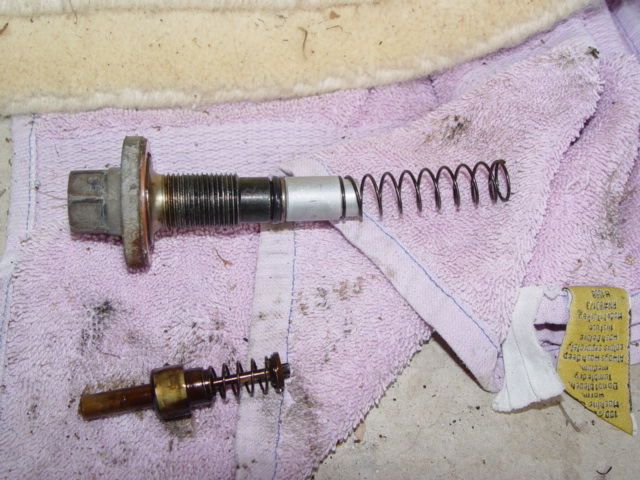

-OIL thermostat bypass pellet
-oil change to 20w50 Havoline
-Coolant flush and refill
and a wash with my pressure cleaner when everything was removed from the motor.

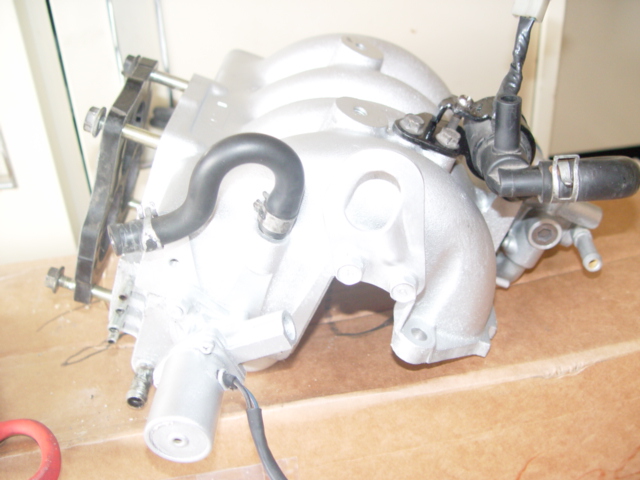

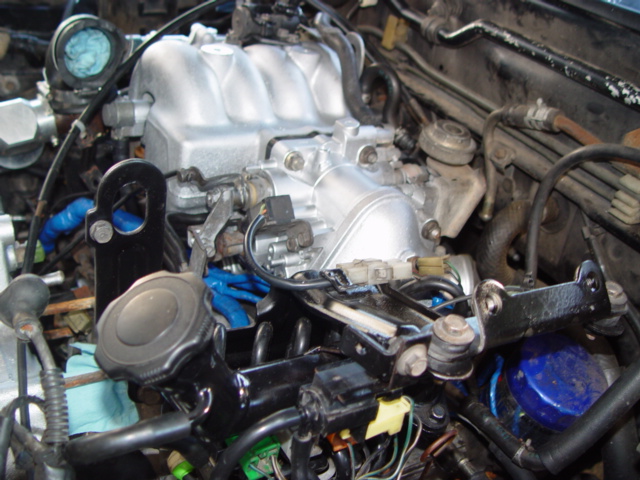

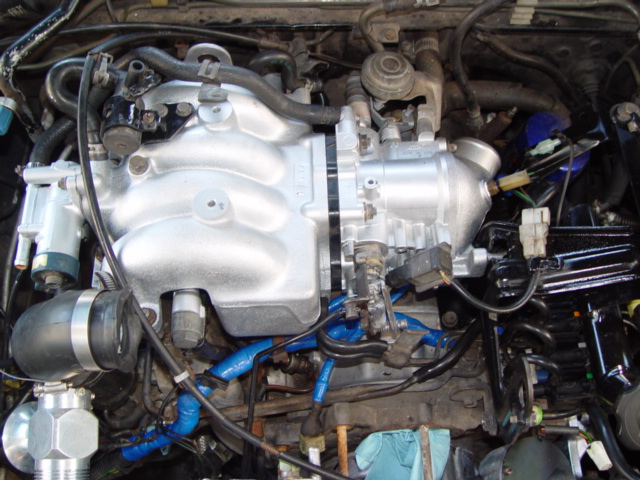

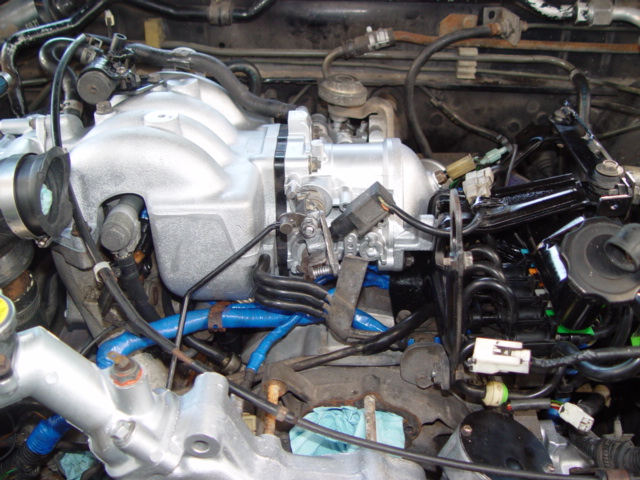

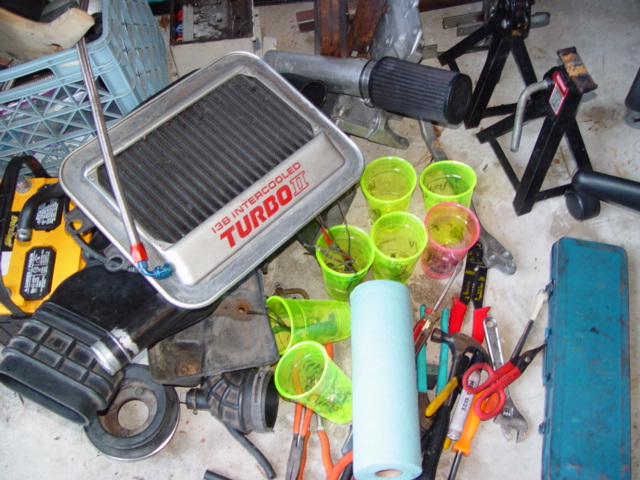

Here are some progress pics
don't have much plans to modify the car but mainly to bring it back to perfect condition

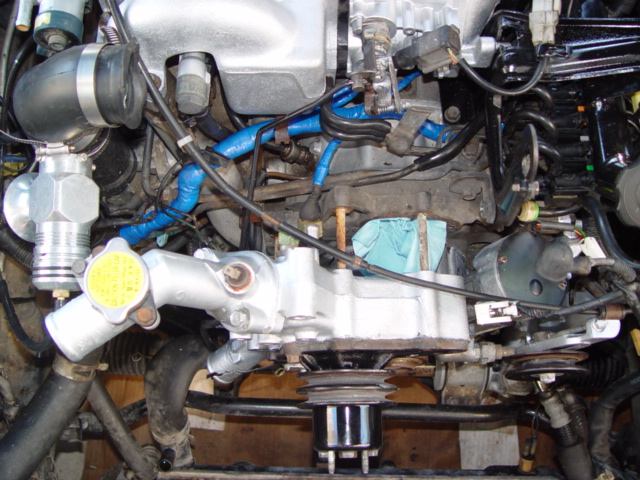

OH and try not to flame too much on the electrical tape color that i used on the wiring harness. AT LEAST ITS ALL FIXED AND IN TOTAL WORKING CONDITION. which is more than most can say about their Fc's wiring harness.

enjoy!



more...



more......



and the last shot



Awesome! I dont suppose you'd do mine too?



not for free but deffinately for a great price.
I know i have spoken to you about having some work done just give me a ring if you are interested or PM
Thanks



Looks good. I did mine too.



I havent forgotten - just been busy with work

I'll give you a ring this week!



looks good.

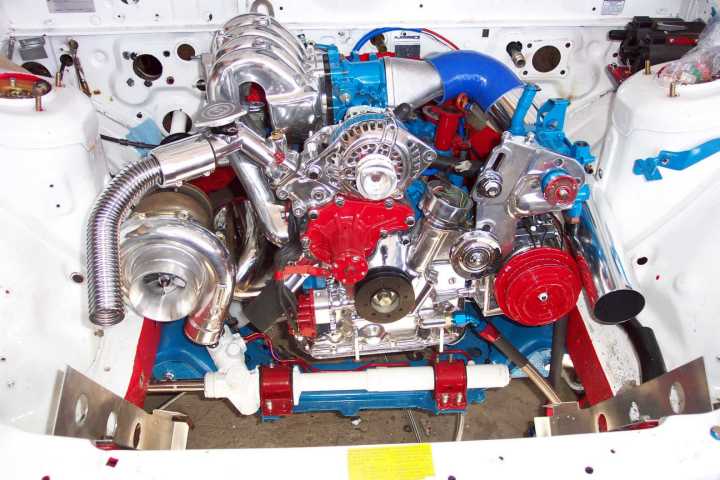

damn you put my work to shame with that fully detailed engine bay picture....Great looking engine bay by the way
++



like you said yours is running. Mine has yet to turn that corner. And I like your blue electrical tape it adds detail.



awesome yeah i thought that if i did it in a different color people would realize that the wiring harness is in great condition by the looks and it shows that work has been done to it. People are partial to having something that looks clean.
i cant wait to see how yours turns out thats for sure
Good luck



I don't see "replaced pulsation dampner" or "added banjo bolt" anywhere..don't burn up all that nice work



nice job man I am glad when people attempt to restore their car first instead of all those owners that have to put an exhaust, intake,boost controller ect. when there damn car is leaking oil everywhere and overheating with 180,000 miles on it lol keep up the good work



Nice! I like clean.



thanks for the good replies
i inspected all fuel fittings and dampener and regulater and both appeared to be in good working condition



Dude U R so dam frigin right all U C round here is people with dam loud *** exhausts and big *** Spoilers with bling bling rims. Then when U come up to one of these dudes (there like man U gonna put on a clod air exhaust and some headers but there **** needs a oil change and there dam engine could use a seroius cleaning with all the oil every were. But I can't say to much cuz i got a HKS intake and repalced my rusty *** cat. But all my add ons were tings dat need sum serious TLC.

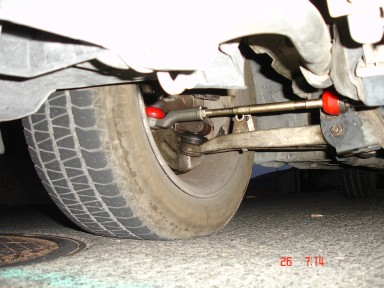

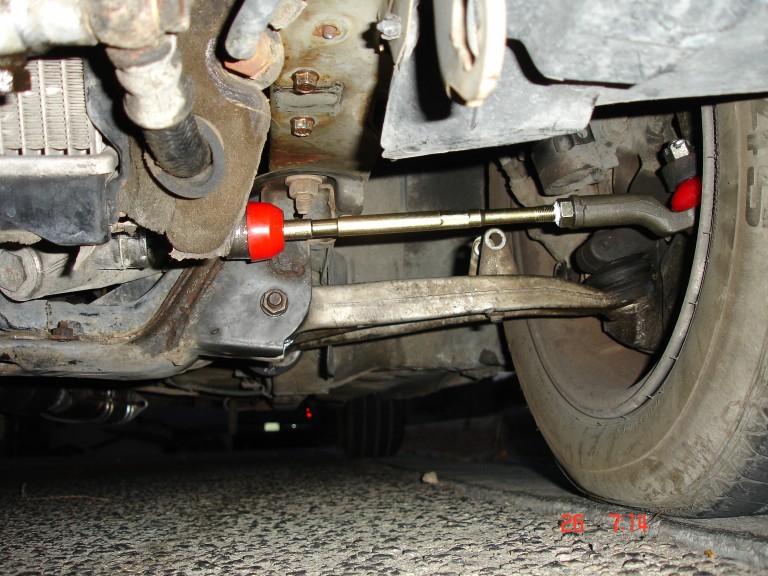

Just finished today replacing all front suspension bushings with Engery Suspension and also repalced my tie rod and tie rod ends



yeah first thing I did was replace my turbo manifold when I bought mine cause it was cracked and sounded like a dirt bike then changed the exhaust cause it was craked so bad with holes in it, changed everysingle fluid, engine tranny, power steering, brake fluid, clutch, differential, now I just recently pulled the engine and changed everysingle gasket and o ring so there is zero seepage of oil, and cleaned and painted some engine parts like this guy just did, I will worry about upping the boost and everything else one I get a rebuild for now I am fine with the power I make



exactly!!!!!
Oh well thats why i buy and sell FC's i love these cars so much and they are all in my price range. So i can buy one fix it up and sell it and make sure i keep these cars out of the junkyard. This is my 4th FC by the way.

Nice job with the suspension work up front zionfarm.
Where did you buy the bushings? ebay?
peace



Nah went online from energy suspension .com



Finished? I think a finished front end would be including a sway bar.......you seemto be without one....



Yeah waiting on my suspension tech's
