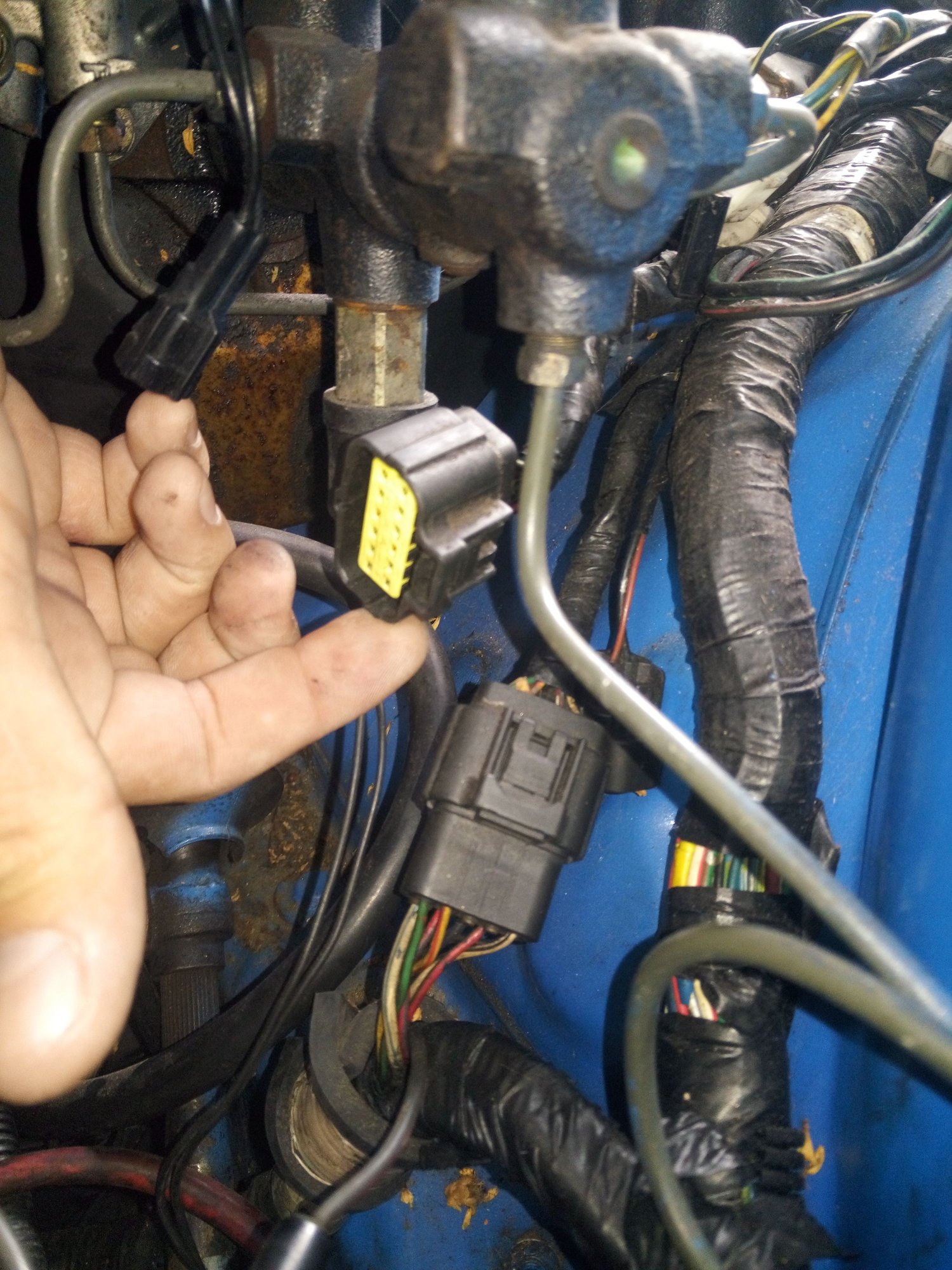

So im really close to starting my fc. Just need help figuring out were these plugs go, the chassis os a s4 amd the wiring is s5 wich is why im lost.



I'd have to go look real quick at my own car to 100% sure but, those don't look factory. Those look like GM Weatherpack connectors.



Yea that would help alot plz. Really? Am i going to have to replace the harness again lol?



Nah, those are all stock.
#1...not sure
#2...green plug is diagnostic, the rest are for lights, I think-turn, run, fog and side marker.
#3...I'm thinking sensors on the trans- 5th gear and neutral switches.
Could be wrong on any/all of these but it's a start to try and match wire colors with the FSM.



Yea #1 is the one confusing me the most since its a big plug. Well #3 is super far from the tranny, its tucked behind the alternator



Indeed, classic brain fart on my part.
The black connector in #3 is the AWS solenoid, need wire colors on the white one.



Lol it happends, here i got the picture of the white plug, the big high lighter green plus is what concerns me the monst, i tried to start the car but there is no power going to the ignition switch at all. Nothing in the cabin had power.



Bump. Help a rx7 get back on the raod lol



There is a Black wire which comes from the main fuse which then connects to a Black/White wire which then runs to the ignition switch. These two wires mate just below the engine fuse box.



Hey Jesus, FSM.



I would love to buy one, but im resently unemployed and cant aford one, now i got time to work on my car so im trying to do my best to get her running.
