S5 N/A gauge cluster on a S4 N/A...
I know this question has been asked before, I remember reading about it, but I've searched and cant find anything
Anyway, i want to swap a S5 instument cluster onto my S/4 N/A. One because I just think it looks better, and 2 because when i get my rebuild I will be switching to S5 rotors and a SP, so I will be making power above my 7K redline now. I know there was a complete write-up on how to swap the gauges, so If anyone can post that up I would really appreciate it. Thanks
Anyway, i want to swap a S5 instument cluster onto my S/4 N/A. One because I just think it looks better, and 2 because when i get my rebuild I will be switching to S5 rotors and a SP, so I will be making power above my 7K redline now. I know there was a complete write-up on how to swap the gauges, so If anyone can post that up I would really appreciate it. Thanks
02-03-03, 01:49 AM
#2
Moderatorator
Join Date: Apr 2002
Location: Canton, Michigan
Posts: 507
Likes: 0
Received 0 Likes
on
0 Posts
I haven't done it, but you have to rewire the plugs. Here's a link to a diagram.
http://brfoundation.com/RX-7/Images/...sterfrom87.jpg
http://brfoundation.com/RX-7/Images/...sterfrom87.jpg
Last edited by mazdamanda; 02-03-03 at 02:37 AM.
02-03-03, 09:56 AM
#4
Former Moderator. RIP Icemark.
This has been covered quite a few times both here and on the teamFC3S.org board.
But the short of it is that you will need either the S5 cluster harness or move pins on the S4 harness to match up to the S5 layout.

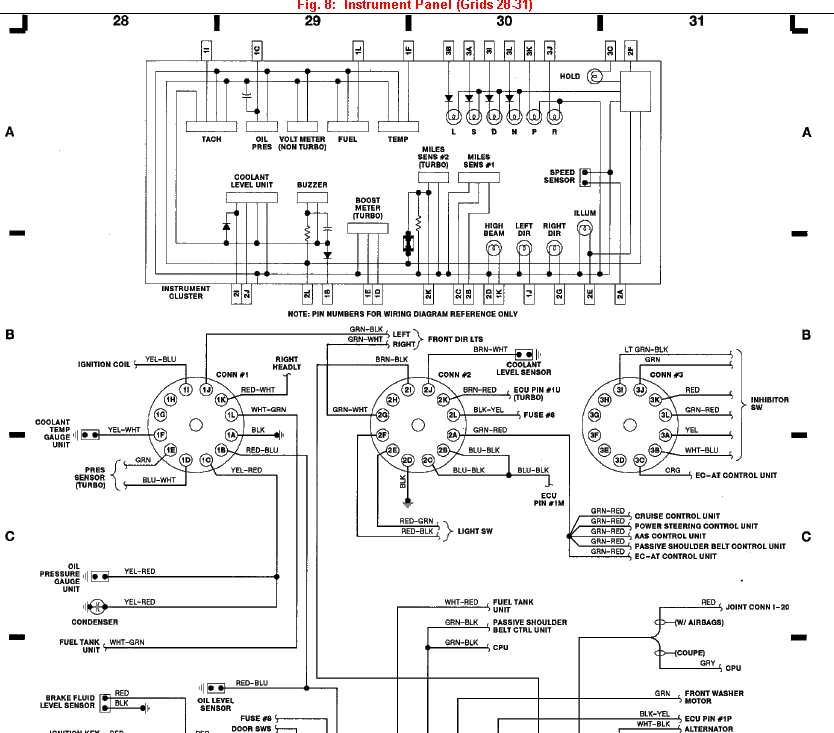

This is the S5 layout:
But the short of it is that you will need either the S5 cluster harness or move pins on the S4 harness to match up to the S5 layout.
This is the S5 layout:
Last edited by Icemark; 02-03-03 at 09:59 AM.
Trending Topics
02-03-03, 05:15 PM
#8
Former Moderator. RIP Icemark.
yeah I remember someone I gave that schematic too did do a nice write up... but can't think of who it was off the top of my head.
The S5 harness should plug right into the dash harness, (someone PM'd me that it would about 6 months back) but you should double check the wires just to make sure (and since I hadn't personally tried plugging just a S5 cluster harness into a S4 dash harness).
The S5 harness should plug right into the dash harness, (someone PM'd me that it would about 6 months back) but you should double check the wires just to make sure (and since I hadn't personally tried plugging just a S5 cluster harness into a S4 dash harness).
