s4 vert stereo writup
#1
phirzcol
Thread Starter
s4 vert stereo writup
Whats the level of interest in a writeup for door woofer delete and no headset audio? i just did mine and haven't buttoned up the stereo bay yet will be fabricating mounts and a panel. Setup uses existing wiring for rca+ single wire to run amp under back compartment. can throw in ps2 and lcd screen info. just checking for interest.
#2
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
I guess I'm confused why anyone would want to delete the headrest speakers or door woofers in the first place.
I've always thought the headrest speakers were one of the best things about Verts, as close to wearing headphones and stay legal you can get. Especially considering trying to have a decent hear to your tunes when the top is down.
Converting the door speakers to mids with woofer's in the rear compartment does make sense. But deleting the door speakers entirely, I'm not so sure is an improvement unless I"m missing something. But absolutely nothing wrong with putting you write up out there as there are probably folks in your camp that would want to benefit from your experience.
I've always thought the headrest speakers were one of the best things about Verts, as close to wearing headphones and stay legal you can get. Especially considering trying to have a decent hear to your tunes when the top is down.
Converting the door speakers to mids with woofer's in the rear compartment does make sense. But deleting the door speakers entirely, I'm not so sure is an improvement unless I"m missing something. But absolutely nothing wrong with putting you write up out there as there are probably folks in your camp that would want to benefit from your experience.
#3
phirzcol
Thread Starter
step one the vert harness

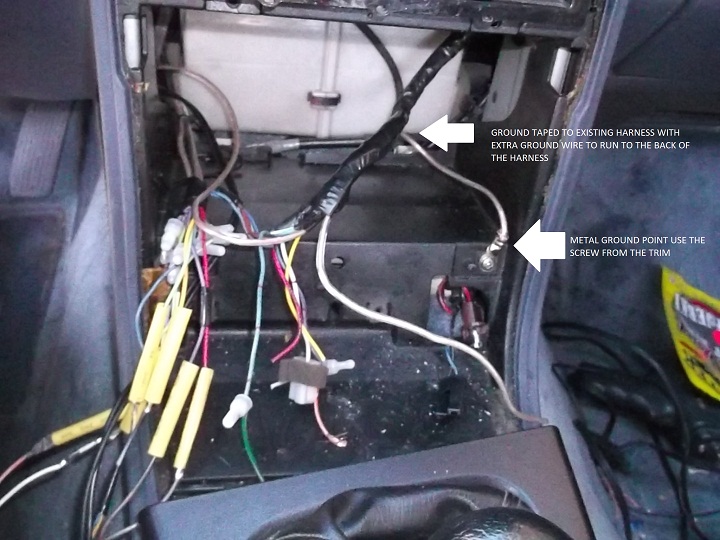

use the left or right trim screw hole for your ground. just use an o fitting on the wire and screw in the trim screw before replacing the trim.
With the key out of the ignition use a multimeter to find the batt+ (interior lighting fuse) wire
Again with the multimeter, turn the key on check all the wires and a new wire should be hot this is the keyed power tie it in for all amps etc you want to come on with the ignition on (if you are going to run a large number of things with this contemplate using this to trigger a relay to turn on everything)

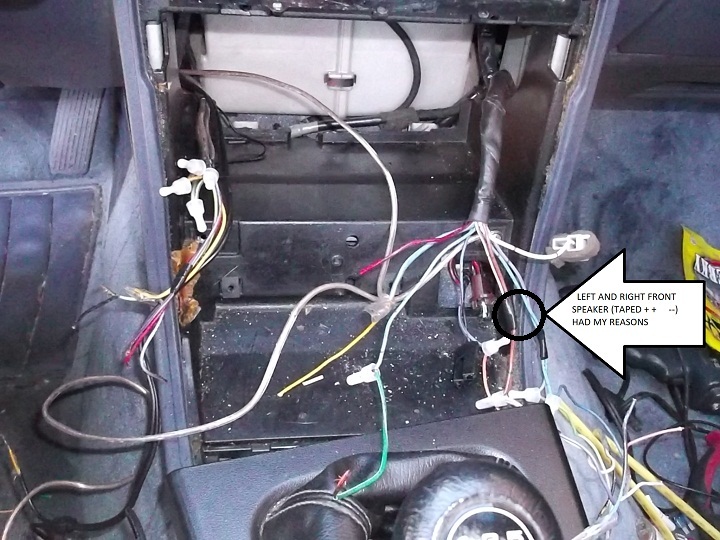

With a 9 volt battery test the remaining wires with the key off to locate the front 4 speaker wires

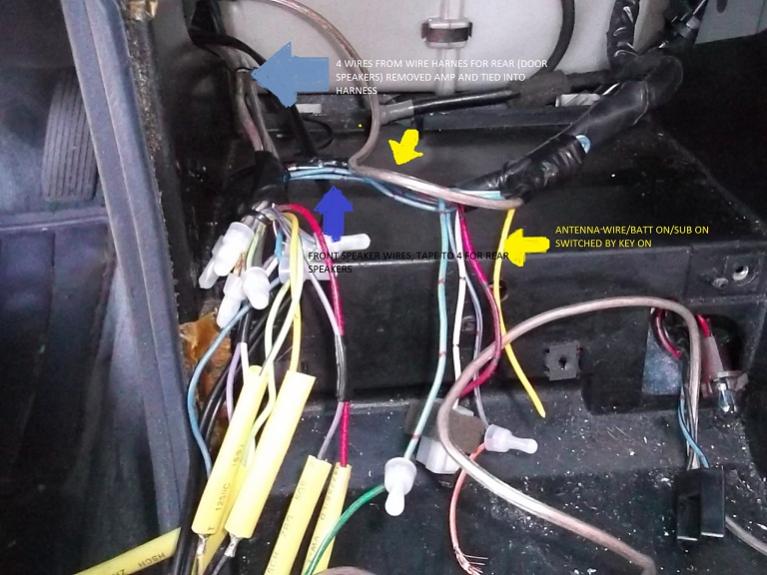

On the driver side of the steering wheel locate the door sub amp. remove this and tie wires in (4) and run the over the steering wheel and over to the stereo bay

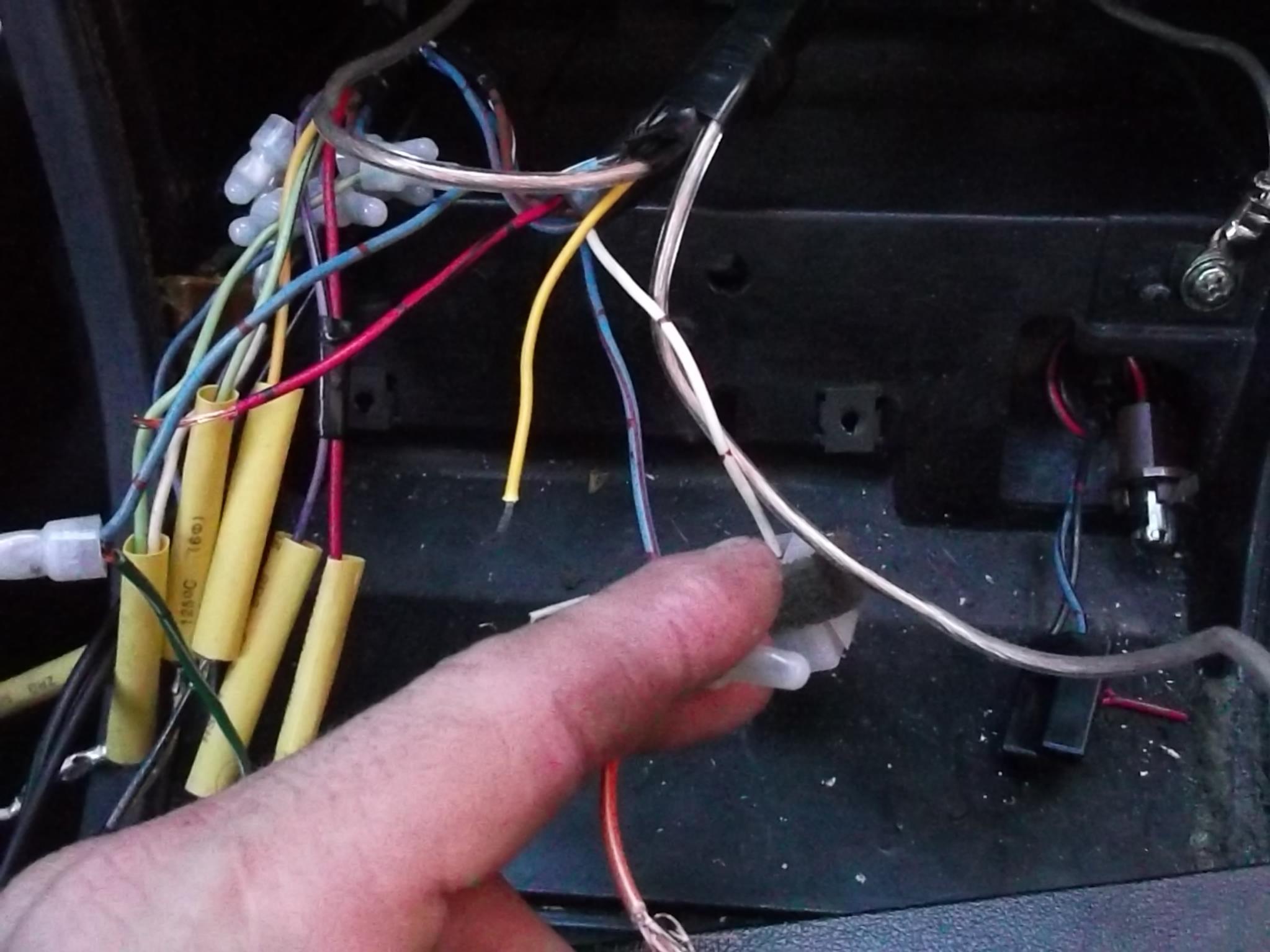

Tape the 8 speaker wires together for a single speaker wire harness(after labeling or taking down the color combos)
in my case i ran the power to a crossover and a 75 watt 4 channel amp
left input direct to amp for door speakers(aftermarket) right channel into crossover high out to 75 watt amp for front speakers low out to 400 watt sub amp in back everything just fits sideways behind the trim rca into crossover/75 watt amp to headphone cable for tablet
With the key out of the ignition use a multimeter to find the batt+ (interior lighting fuse) wire
Again with the multimeter, turn the key on check all the wires and a new wire should be hot this is the keyed power tie it in for all amps etc you want to come on with the ignition on (if you are going to run a large number of things with this contemplate using this to trigger a relay to turn on everything)
With a 9 volt battery test the remaining wires with the key off to locate the front 4 speaker wires
On the driver side of the steering wheel locate the door sub amp. remove this and tie wires in (4) and run the over the steering wheel and over to the stereo bay
Tape the 8 speaker wires together for a single speaker wire harness(after labeling or taking down the color combos)
in my case i ran the power to a crossover and a 75 watt 4 channel amp
left input direct to amp for door speakers(aftermarket) right channel into crossover high out to 75 watt amp for front speakers low out to 400 watt sub amp in back everything just fits sideways behind the trim rca into crossover/75 watt amp to headphone cable for tablet
Trending Topics
#8
phirzcol
Thread Starter

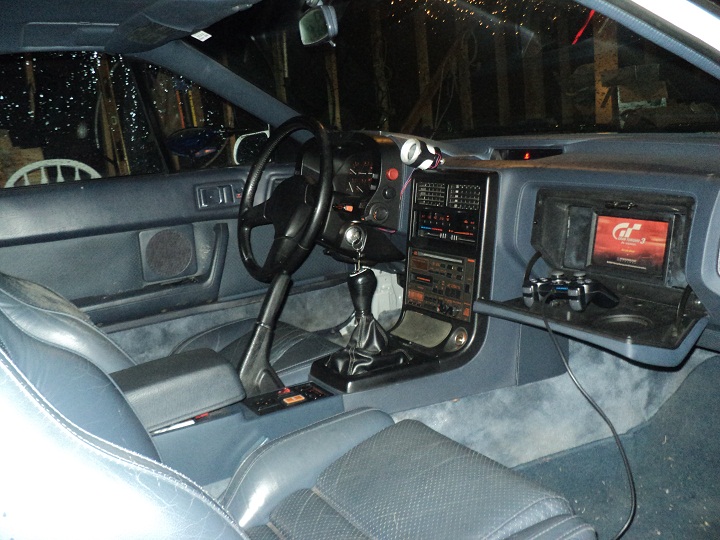

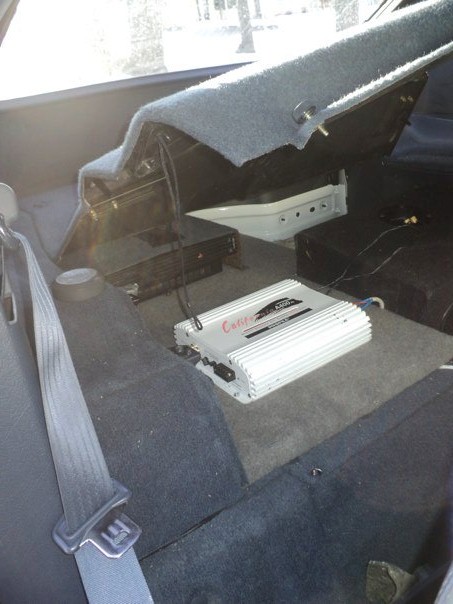

carpet for amp ps2 insert is off head wind reducer board , this vert is so little wind went 500 miles in 2 days w top down. not even as loud as the whapm whamp whamp my sa made

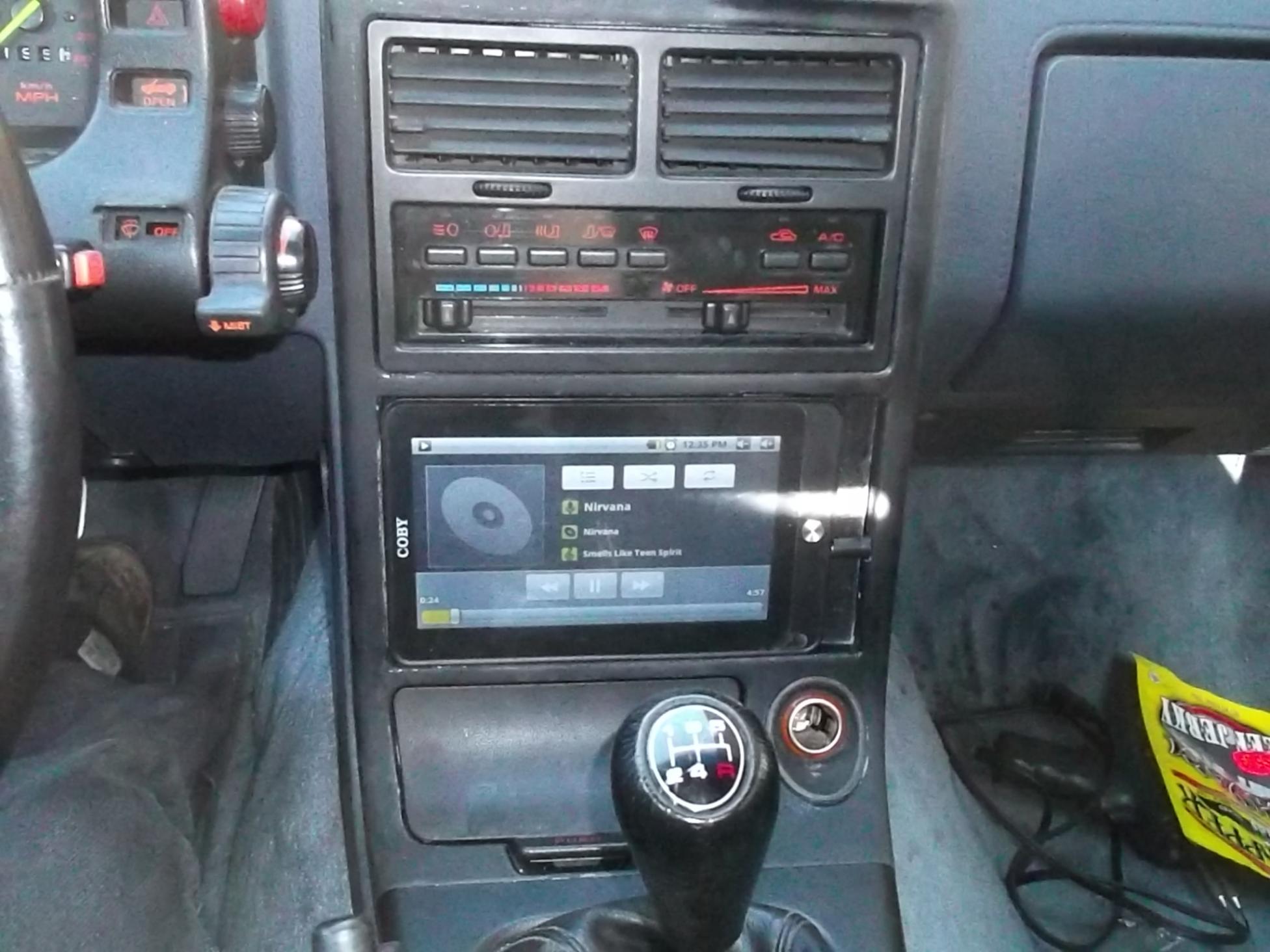

pic w dash is before tablet
Last edited by phirzcol88; 08-19-11 at 10:46 PM.
#11
phirzcol
Thread Starter
i have a control box for the sub amp glove screen and dash uv light (painted dash cluster dials with florescent paint an extra button. one of these days i will open it up and solder leads onto the power switch for the control box. but yes and with the top down its harder!
