S4-s5-s6 Interchangeable Parts
OK As I work my way through the RX7 world of parts and cars, modifying and interchanging parts, thought there would be a thread put together about this but haven't seen it in archives, in any in depth topics. I think most 7 owners, know the basic cosmetic changes wings, taillights, mirrors, wheels but say putting a fd upper intake and s5 lower intake on a s4 motor. Or turbo drive train or fd into a n/a. What all works between the gens 1,2,3rd. If you have experience and time, I think this thread will answer a lot of question on the subject if you post it.
#3
No es bueno.
iTrader: (1)
Originally Posted by SirCygnus
um.... the spark plugs pretty much are interchangeable, i dont know about the lug nuts though.
S4 clutch type lsd can be swapped into an S5 to get rid of the Viscous LSD.
#4
ROBRXRAY
Thread Starter
Join Date: Aug 2004
Location: florida
Posts: 2,988
Likes: 0
Received 0 Likes
on
0 Posts
what no info out there except obvious expert sircygnus
find out for yourself bs, wtf?
Break it down into categories and I will copy and post and keep thread going,
example
FD TO FC UPGRADES
FUEL PUMP - insert installation info
UPPER INTAKE- insert installation info
ALTERNATOR - insert installation info
I can sort by systems electrical, fuel, engine etc.
find out for yourself bs, wtf?
Break it down into categories and I will copy and post and keep thread going,
example
FD TO FC UPGRADES
FUEL PUMP - insert installation info
UPPER INTAKE- insert installation info
ALTERNATOR - insert installation info
I can sort by systems electrical, fuel, engine etc.
#6
Senior Member
Join Date: Feb 2004
Location: NYC/Stony Brook Univ.
Posts: 702
Likes: 0
Received 0 Likes
on
0 Posts
I see this thread is going places....

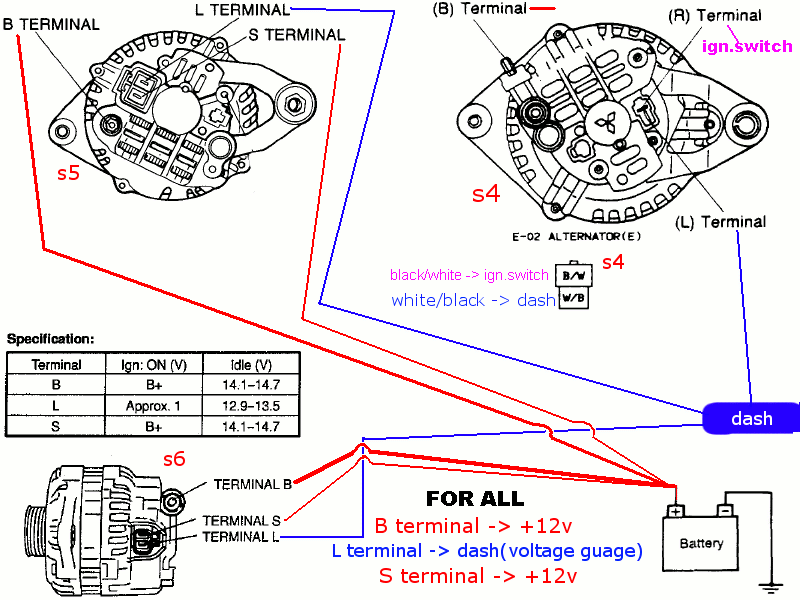

Anyway, to contribute...here is a installation schemeatic for the s4,s5,s6 alternator.
I wish i knew who to give credit to, but i don't.
ALTHOUGH...i don't know about the actual mechanical modifications you have to make...as in pulley's and spacers, etc.
Anyway, to contribute...here is a installation schemeatic for the s4,s5,s6 alternator.
I wish i knew who to give credit to, but i don't.
ALTHOUGH...i don't know about the actual mechanical modifications you have to make...as in pulley's and spacers, etc.
Trending Topics
#10
Lives on the Forum
Basically, a lot of the parts from FD to FC are almost FC turbo specific.
Any of the FC non-turbos that use Turbo II parts can use the FD parts - i.e. the brake calipers.
Almost everything you mentioned (UIM, alternator) are not drop in.
The FD alternator can drop in (I think) to a Kouki FC turbo, but the pulley is all wrong.
FD Torsen diff can swap with any Turbo II diff.
-Ted
Any of the FC non-turbos that use Turbo II parts can use the FD parts - i.e. the brake calipers.
Almost everything you mentioned (UIM, alternator) are not drop in.
The FD alternator can drop in (I think) to a Kouki FC turbo, but the pulley is all wrong.
FD Torsen diff can swap with any Turbo II diff.
-Ted
#12
ROBRXRAY
Thread Starter
Join Date: Aug 2004
Location: florida
Posts: 2,988
Likes: 0
Received 0 Likes
on
0 Posts
RETed can you elaborate some on FD to FC turbo specific parts, I know the motor isn't direct bolt in, but people use the rotors and housings, other engine parts? there is a FD uim people use also to FC and ssomeone has already posted about the alternators on this thread.
I know you have wheel fitment taken care of for FD to FC because that is what I used. Again, wheeladapter.com Fred Goeske made mine that are hubcentric/wheelcentric one piece adapters that are perfect, if interested let me know and I will talk with him about group buys.
satanicmechanic you can change out the warning lights from s5 into s4 and use the s5 surround.
I think the S5 steering wheel is adaptable to s4 also.
I know you have wheel fitment taken care of for FD to FC because that is what I used. Again, wheeladapter.com Fred Goeske made mine that are hubcentric/wheelcentric one piece adapters that are perfect, if interested let me know and I will talk with him about group buys.
satanicmechanic you can change out the warning lights from s5 into s4 and use the s5 surround.
I think the S5 steering wheel is adaptable to s4 also.
#13
Lives on the Forum
Originally Posted by robrxray
RETed can you elaborate some on FD to FC turbo specific parts, I know the motor isn't direct bolt in, but people use the rotors and housings, other engine parts?
The rotor housings bolt together, but 1) the spark plug positions are like the Kouki motors - a little lower than the Zenki ones, and 2) if you need the water passage for the stock turbo, they are not drilled on the 13B-REW.
So, I don't call them swapable at all - not without a little custom machining.
Rotors are basically the same as the Kouki FC 13BT.
Front stat gear is not the same, and the 13B-REW uses different Torrington bearings in the front, which are not swappable with the FC 13BT parts.
The eccentric shaft is the same, but this is for all 13B from the 1984 GSL-SE 13B on up.
There is no real adavantage to eccentric shaft design with maybe the exception of the 1984 - 1985 GSL-SE e-shaft due to NO STUPID THERMO PELLET in the front "nose".
there is a FD uim people use also to FC and ssomeone has already posted about the alternators on this thread.
Even if you manage to make it fit, you need to address the issues of:
1) TB adapter
2) TPS
3) Vacuum fittings
4) BAC valve
Thus, I don't call this an easy swap.
Same thing with the alternator...
There is no easily available v-belt pulley that will bolt onto the FD alternator that will make this drop-in.
The plugs for the Kouki FC will work, but you need to custom wire a Zenki FC to make it work properly.
-Ted
#14
Originally Posted by RETed
Basically, a lot of the parts from FD to FC are almost FC turbo specific.
Any of the FC non-turbos that use Turbo II parts can use the FD parts - i.e. the brake calipers.
Almost everything you mentioned (UIM, alternator) are not drop in.
The FD alternator can drop in (I think) to a Kouki FC turbo, but the pulley is all wrong.
FD Torsen diff can swap with any Turbo II diff.
-Ted
Any of the FC non-turbos that use Turbo II parts can use the FD parts - i.e. the brake calipers.
Almost everything you mentioned (UIM, alternator) are not drop in.
The FD alternator can drop in (I think) to a Kouki FC turbo, but the pulley is all wrong.
FD Torsen diff can swap with any Turbo II diff.
-Ted
#15
Lives on the Forum
Originally Posted by sao1
Would the FD's 3.90 ring and pinion swap into TII diff?
I know for sure the ring gear side is swappable.
The pinion side should also swap too.
-Ted
