s4 rats nest solenoids
Hi guys,
i need some help putting the rats nest solenoids back into my jap spec s4.
Ive got my hands on a set of solenoids & the electrical plugs, which i will need to re solder into the loom as the originals were cut off.
But anyways, i have no idea which vac lines go where. It looks like the top 4, side of the TB, just got to that side of solenoids in order of placement, but the bottom looks more complicated.

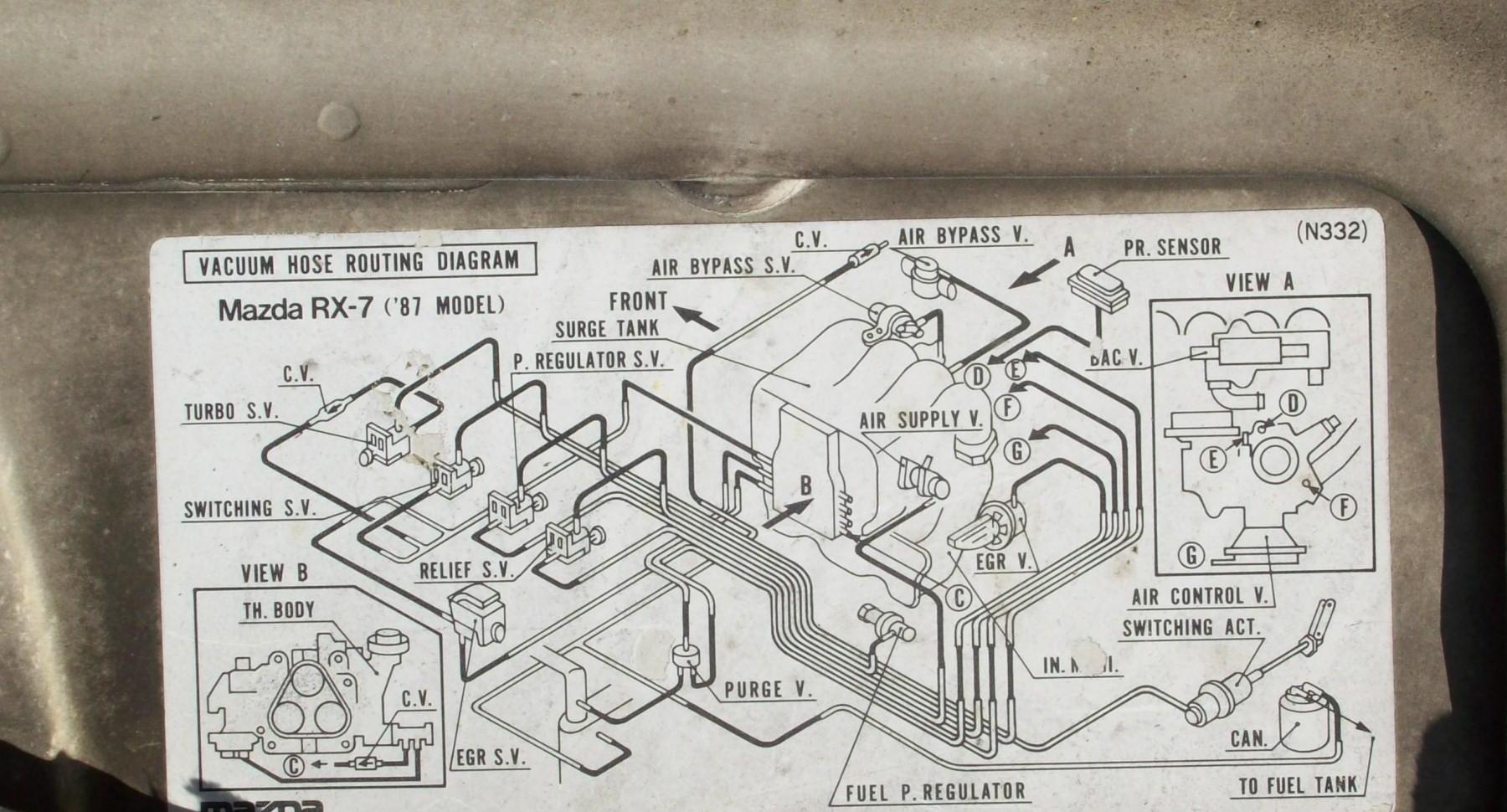

Ive got a pic, if somebody can draw in which vac lines go where. Or just a good pic of yours should help me work out where they go.
Any help would be greatly appreciated
i need some help putting the rats nest solenoids back into my jap spec s4.
Ive got my hands on a set of solenoids & the electrical plugs, which i will need to re solder into the loom as the originals were cut off.
But anyways, i have no idea which vac lines go where. It looks like the top 4, side of the TB, just got to that side of solenoids in order of placement, but the bottom looks more complicated.
Ive got a pic, if somebody can draw in which vac lines go where. Or just a good pic of yours should help me work out where they go.
Any help would be greatly appreciated
