S4 FC Ignition Switch Connector types
Does anybody know the connector types that come from the ignition switch harness and maybe where I could purchase? I'm specifically looking for the 2 pinconnector that contains the 12V constant and switched, and the 1 pin connector for the starter.
#2
Hey...Cut it out!
iTrader: (4)
I'm fairly sure those are Yazaki CN-A 250 series connectors. Look at the S4 radio harness (and reverse radio harness) from Scosche. Eastern Beaver also carries them.
If all else fails, a 0.250" Quick Disconnect tab from any hardware store will do the trick too. Not exactly "pretty", but it will work.
If all else fails, a 0.250" Quick Disconnect tab from any hardware store will do the trick too. Not exactly "pretty", but it will work.
#3
Senior Member
iTrader: (3)
Not sure what was up with my internet connection but I hadn't been able to upload an image for a couple days

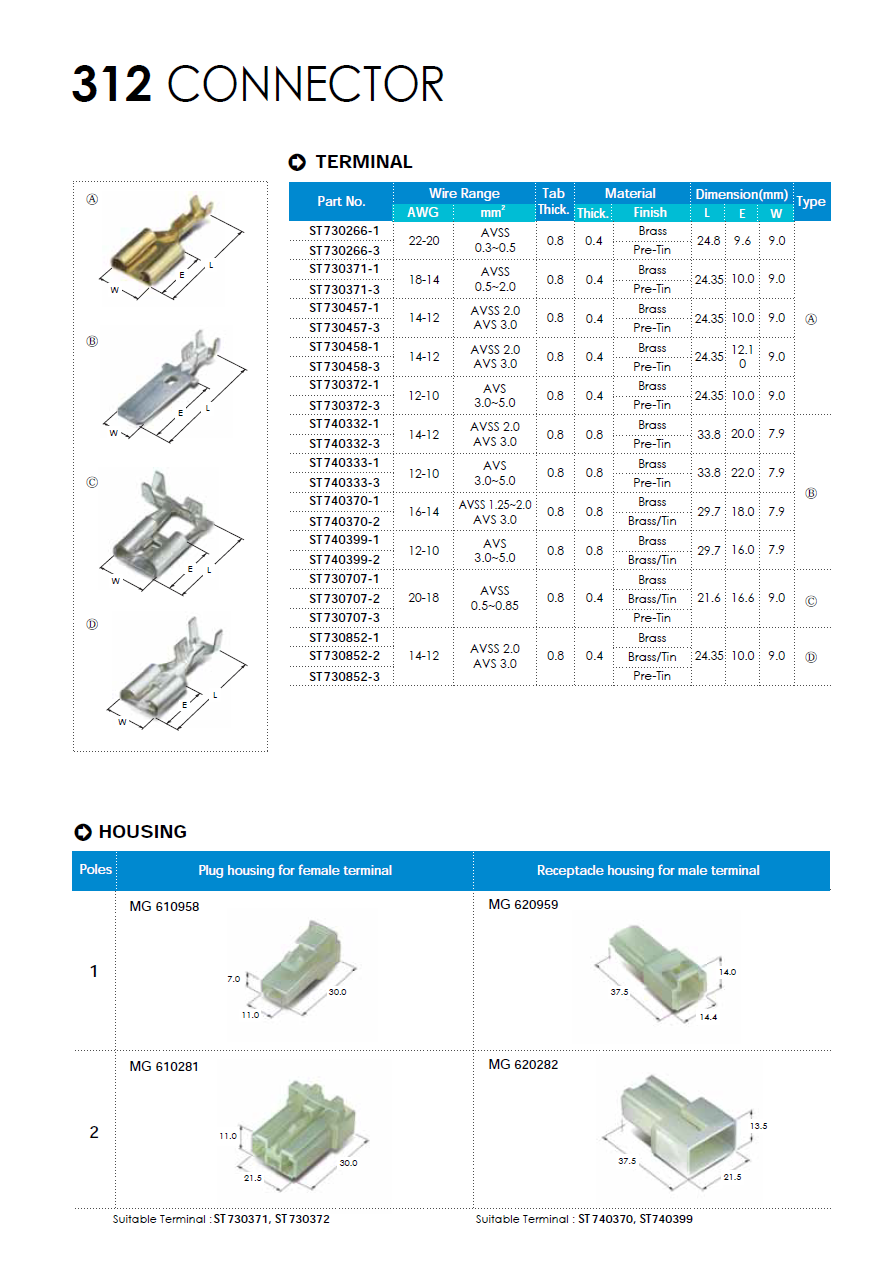

Here's a snippet from the KET catalog. They should be from the .312 family. I can't really find an equivalent Yazaki connector, so I'm assuming its a unique housing design by KET, but if you just need the terminals, Eastern Beaver/Corsa Technic carry Yazaki's .312 terminals which fit (as with the fusebox connectors). I don't have a source for KET connectors, so best of luck with that.
Here's a snippet from the KET catalog. They should be from the .312 family. I can't really find an equivalent Yazaki connector, so I'm assuming its a unique housing design by KET, but if you just need the terminals, Eastern Beaver/Corsa Technic carry Yazaki's .312 terminals which fit (as with the fusebox connectors). I don't have a source for KET connectors, so best of luck with that.
