S4 5 Spd swap
02-08-12, 10:25 AM
#3
http://www.rotaryresurrection.com/2n...to_5speed.html
for the next person that searches instead, and finds this thread... at least this thread will have a link... right?
for the next person that searches instead, and finds this thread... at least this thread will have a link... right?
02-08-12, 09:49 PM
#7
Full Member
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
different mounting locations and try this one more pics lol https://www.rx7club.com/2nd-generation-specific-1986-1992-17/complete-automatic-manual-conversion-write-up-201073/
Trending Topics
02-09-12, 03:20 PM
#10
I thinkso... But it's slightly different [Never tried it though..]
Fabricating the adapter mounts is actually much simpler than v8killa's adapters, if you don't mind a couple mm difference in transmission height at the rear [hasn't caused me any problems].
Go to Home Depot or wherever and buy the thickest piece of angle iron they have [should be around 2mm thick if I remember correctly..] use v8killa's measurements to drill the holes and voila! Cheap and easy manual adapter, that's better than the Rotary Resurrection writeup's.
https://www.rx7club.com/forum/attach...9&d=1311810025

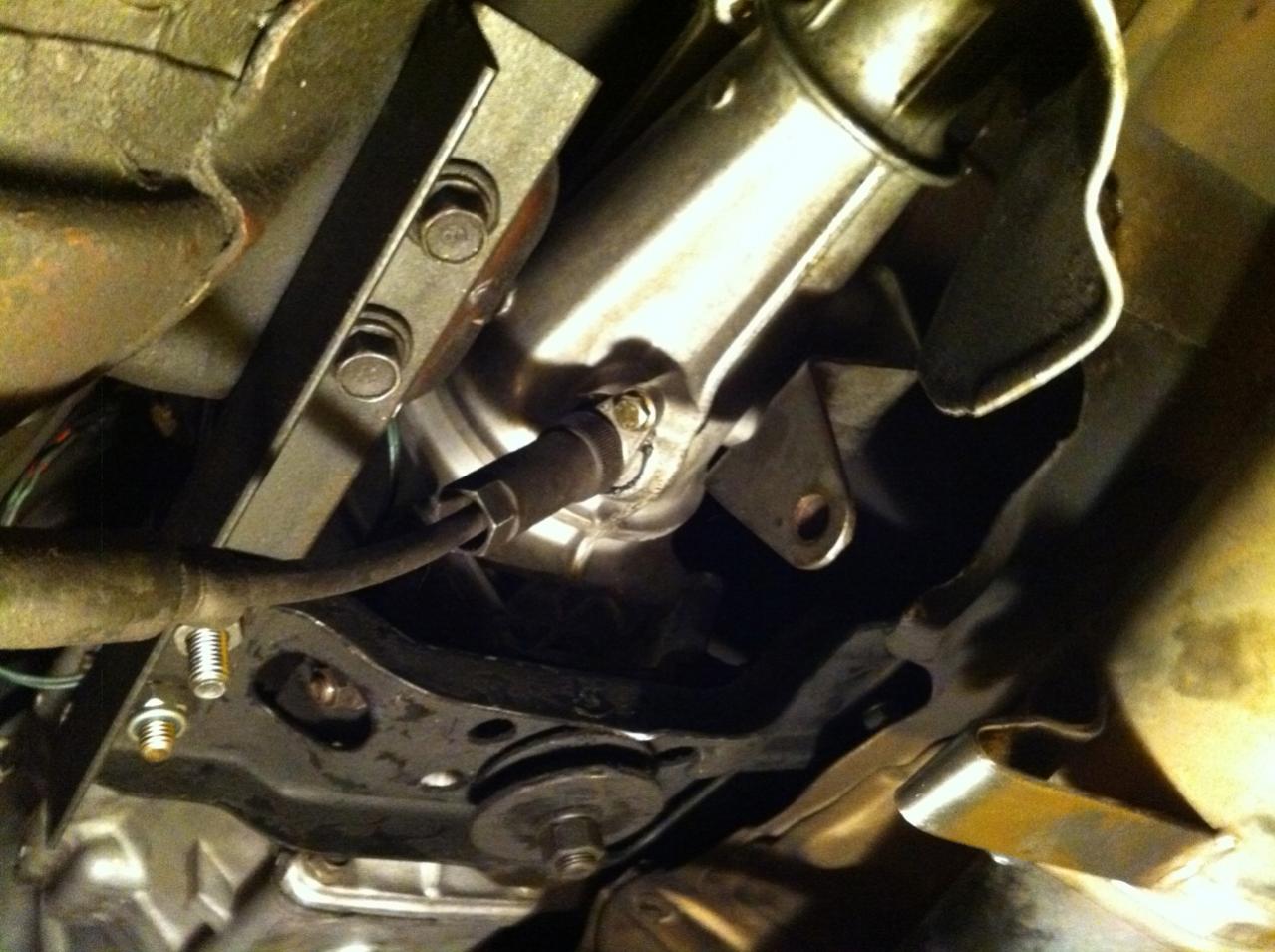

That's what it'll look like done and installed. [mine]
https://www.rx7club.com/forum/showth...highlight=Auto
And if you look at post #7 in there, that's ALL you have change wiring wise for an S4. ^_^
Fabricating the adapter mounts is actually much simpler than v8killa's adapters, if you don't mind a couple mm difference in transmission height at the rear [hasn't caused me any problems].
Go to Home Depot or wherever and buy the thickest piece of angle iron they have [should be around 2mm thick if I remember correctly..] use v8killa's measurements to drill the holes and voila! Cheap and easy manual adapter, that's better than the Rotary Resurrection writeup's.
https://www.rx7club.com/forum/attach...9&d=1311810025
That's what it'll look like done and installed. [mine]
https://www.rx7club.com/forum/showth...highlight=Auto
And if you look at post #7 in there, that's ALL you have change wiring wise for an S4. ^_^
02-09-12, 08:11 PM
#11
Apprentice Tech.
Thread Starter
iTrader: (5)
Join Date: Nov 2005
Location: Marysville, Wa
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
I thinkso... But it's slightly different [Never tried it though..]
Fabricating the adapter mounts is actually much simpler than v8killa's adapters, if you don't mind a couple mm difference in transmission height at the rear [hasn't caused me any problems].
Go to Home Depot or wherever and buy the thickest piece of angle iron they have [should be around 2mm thick if I remember correctly..] use v8killa's measurements to drill the holes and voila! Cheap and easy manual adapter, that's better than the Rotary Resurrection writeup's.
https://www.rx7club.com/forum/attach...9&d=1311810025
That's what it'll look like done and installed. [mine]
https://www.rx7club.com/forum/showth...highlight=Auto
And if you look at post #7 in there, that's ALL you have change wiring wise for an S4. ^_^
Fabricating the adapter mounts is actually much simpler than v8killa's adapters, if you don't mind a couple mm difference in transmission height at the rear [hasn't caused me any problems].
Go to Home Depot or wherever and buy the thickest piece of angle iron they have [should be around 2mm thick if I remember correctly..] use v8killa's measurements to drill the holes and voila! Cheap and easy manual adapter, that's better than the Rotary Resurrection writeup's.
https://www.rx7club.com/forum/attach...9&d=1311810025
That's what it'll look like done and installed. [mine]
https://www.rx7club.com/forum/showth...highlight=Auto
And if you look at post #7 in there, that's ALL you have change wiring wise for an S4. ^_^
02-10-12, 02:36 AM
#13
lol XD
I re-read my post and want to clarify, the picture of my adapter mounts looks nearly identical on both sides [just a straight piece of angle iron on each side, attached to the auto-body-side-mounts and the Auto crossmember]
Oh, and something else helpful... When you're swapping the pedals, you don't have to drop the column and take out the whole assembly.. Just undo the long bolt that the brake/clutch are mounted to. It'll be a little tight but easily do-able [I pulled the whole assembly out of a manual car, and then just the bolt out of the auto and I was able to install the manual bolt+clutch/brake pedals with the assembly still in place]
...Also, when you're halfway through that part[auto bolt/brake pedal removed], install your clutch master cylinder, it'll be the only time in your car's life that it'll be very easy to get at the nuts for it.
I re-read my post and want to clarify, the picture of my adapter mounts looks nearly identical on both sides [just a straight piece of angle iron on each side, attached to the auto-body-side-mounts and the Auto crossmember]
Oh, and something else helpful... When you're swapping the pedals, you don't have to drop the column and take out the whole assembly.. Just undo the long bolt that the brake/clutch are mounted to. It'll be a little tight but easily do-able [I pulled the whole assembly out of a manual car, and then just the bolt out of the auto and I was able to install the manual bolt+clutch/brake pedals with the assembly still in place]
...Also, when you're halfway through that part[auto bolt/brake pedal removed], install your clutch master cylinder, it'll be the only time in your car's life that it'll be very easy to get at the nuts for it.
02-13-12, 09:39 PM
#16
The ones in my picture have been running the car since about Oct 09'. The picture attached is from Dec 15 2010 B)
Still working perfectly with DDing [and 157 RWHP!] Angle iron is very stiff.. Driving it around, feels just as stiff as proper manual mounts.
Still working perfectly with DDing [and 157 RWHP!] Angle iron is very stiff.. Driving it around, feels just as stiff as proper manual mounts.
02-14-12, 08:14 PM
#17
Registered Loser
iTrader: (6)
Join Date: Dec 2002
Location: Whiterock
Posts: 2,224
Likes: 0
Received 0 Likes
on
0 Posts
you throw everything manual in with a jack holding your tranny up. then measure the angle iron and cut then drill the hole for the manual transmission (stock manual mount removed) then weld that to the auto transmission mount and bolt them in. 55/54mm skateboard polyurethane wheel works perfect for a mount bushing.
02-15-12, 01:12 PM
#18
Smells like 2 stroke.
Auto to manual swap is easy, save for the trans mounting and getting the reverse lights and starter wiring to work. I'm still working on wiring on my car. I was actually surprised at now easy it was to install the clutch hydraulics and pedals though, I was thinking that would be the hardest part. Just get someone to make you some mounts or move the stock ones if you can't do it yourself... As for wiring, I'm still lost. lol
02-17-12, 02:15 AM
#22
You can.... With an S5 tailshaft housing :/
The S4 manual transmission has a Y-bracket that attaches with two vertical bolts to the housing, the S5 and auto use 4 [3 on the auto, but that doesn't matter] little diagonal bolts.
There's no reasonable way to modify the crossmember or Y-bracket to accept the S4 style.
But if you can source one [Pineapple Racing? Atkins?] an S5 manual tailshaft housing should be pretty easy to swap onto your S4 trans. [This is what I had to do.. Someone sold me a trans that came out of an 89, but it was S4 style.. Rob at Pineapple had one and installed it for $50 if I remember correctly.]
The S4 manual transmission has a Y-bracket that attaches with two vertical bolts to the housing, the S5 and auto use 4 [3 on the auto, but that doesn't matter] little diagonal bolts.
There's no reasonable way to modify the crossmember or Y-bracket to accept the S4 style.
But if you can source one [Pineapple Racing? Atkins?] an S5 manual tailshaft housing should be pretty easy to swap onto your S4 trans. [This is what I had to do.. Someone sold me a trans that came out of an 89, but it was S4 style.. Rob at Pineapple had one and installed it for $50 if I remember correctly.]
02-17-12, 09:08 AM
#23
Apprentice Tech.
Thread Starter
iTrader: (5)
Join Date: Nov 2005
Location: Marysville, Wa
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
Craaaaaaaaaap..... Would it be better to just use an S5 tranny? (assuming everything else that I have will work, clutch, flywheel, slave and master, yadda yadda.......)
02-17-12, 02:56 PM
#24
Once you swap the tailshaft housing the transmission should be near as makes no difference the same.
If you're not close enough to someone that can supply you with the housing... Then it would be easier just to source the trans. I imagine shipping the housing probably wouldn't be worthwhile, but you could shoot Rob an email?
"Hey I need an S5 tailshaft housing for my S4 manual transmission, do you have any and if so would it be unreasonably expensive to sell and ship one to me?"
If you're not close enough to someone that can supply you with the housing... Then it would be easier just to source the trans. I imagine shipping the housing probably wouldn't be worthwhile, but you could shoot Rob an email?
"Hey I need an S5 tailshaft housing for my S4 manual transmission, do you have any and if so would it be unreasonably expensive to sell and ship one to me?"
