RPM signal from ECU s4TII
i was wondering if there was an RPM signal coming out of the ECU for my oldschool Super AFC? if so what pin is it if it does exist? i have all the other pinouts already...thanks alot!
i already searched
i already searched
#5
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Yeah there is. Pin 1X on S4's or pin 1G on S5's is the trailing ignition timing signal, which gives you rpm. How did you wire up your S-AFC? Didn't you follow the instructions?

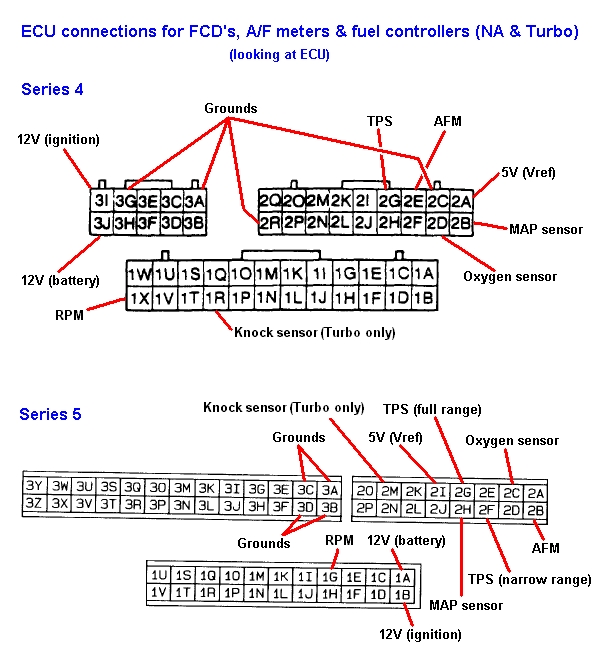

The diagram I posted above had an error (wrong pin for rpm on S5) so I've deleted it. Here's a corrected one. Sorry about that.
The diagram I posted above had an error (wrong pin for rpm on S5) so I've deleted it. Here's a corrected one. Sorry about that.
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Oh? Really?
Let's see now. You've got a IG-T that goes from the ECU to the Ignitor. PIn 1M.
You've a Select signal from the ECU to the Ignitor. Pin 1U.
And last you have a FEEDBACK signal from the ignitor to the ECU. The famous pin 1-X in your diagram.
Now I see the FEEDBACK signal as going From the Ignitor TO the ECU. To me that means that Pin 1X is a INPUT signal to the ECU.
Put a very large SMILEY HERE x.
I wired my SAFC just like you'all. Until I dismantled them the last couple of weeks and installed a RTEK2.0. Put a even larger SMILEY HERE x.
http://www.teamfc3s.org/info/articles/demystifying.html
edit: as usual, there is a SMALL chance I might be ..........................w r o n g
Let's see now. You've got a IG-T that goes from the ECU to the Ignitor. PIn 1M.
You've a Select signal from the ECU to the Ignitor. Pin 1U.
And last you have a FEEDBACK signal from the ignitor to the ECU. The famous pin 1-X in your diagram.
Now I see the FEEDBACK signal as going From the Ignitor TO the ECU. To me that means that Pin 1X is a INPUT signal to the ECU.
Put a very large SMILEY HERE x.
I wired my SAFC just like you'all. Until I dismantled them the last couple of weeks and installed a RTEK2.0. Put a even larger SMILEY HERE x.
http://www.teamfc3s.org/info/articles/demystifying.html
edit: as usual, there is a SMALL chance I might be ..........................w r o n g
Last edited by HAILERS; 03-31-06 at 02:43 PM.
#7
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Go look at the 88 FSM ECU chart on page 4A-30 or 4B-31. For S4's Pin 1X is the trailing ignition timing signal, i.e. the ECU tells the trailing coil to fire. That is the pin Apexi tells you to use for the rpm signal in the instructions for the S-AFC and Rev-Speed Meter.
Pin 1U is the trailing select signal and pin 1M is only described as being for the trailing coil, but must be the feedback signal.
Pin 1U is the trailing select signal and pin 1M is only described as being for the trailing coil, but must be the feedback signal.
