Repairing the front harness

So yesterday I decided to grab the battery out of my daily and test the state of the rx7s electrical system to see how my wiring repair has been going. Previous owner snipped and ripped the 13b out for a v8 but never finished the job 🤦‍♂️

After hooking it up I confirmed that I had power to the headlights, taillights, and hazards. I believe to have traced the issue to the ignition switch not getting power because of the threads I read mentioning to test turn signals. A common problem seems to be "a spade connector 6 inches from the engine fuse box" being disconnected but Im having trouble finding it. There is a thicker wire probably around 6 gauge about 6 inches under the fuse box but I don't know if it's supposed to be the spade connector. Where does this spade connector even connect to?

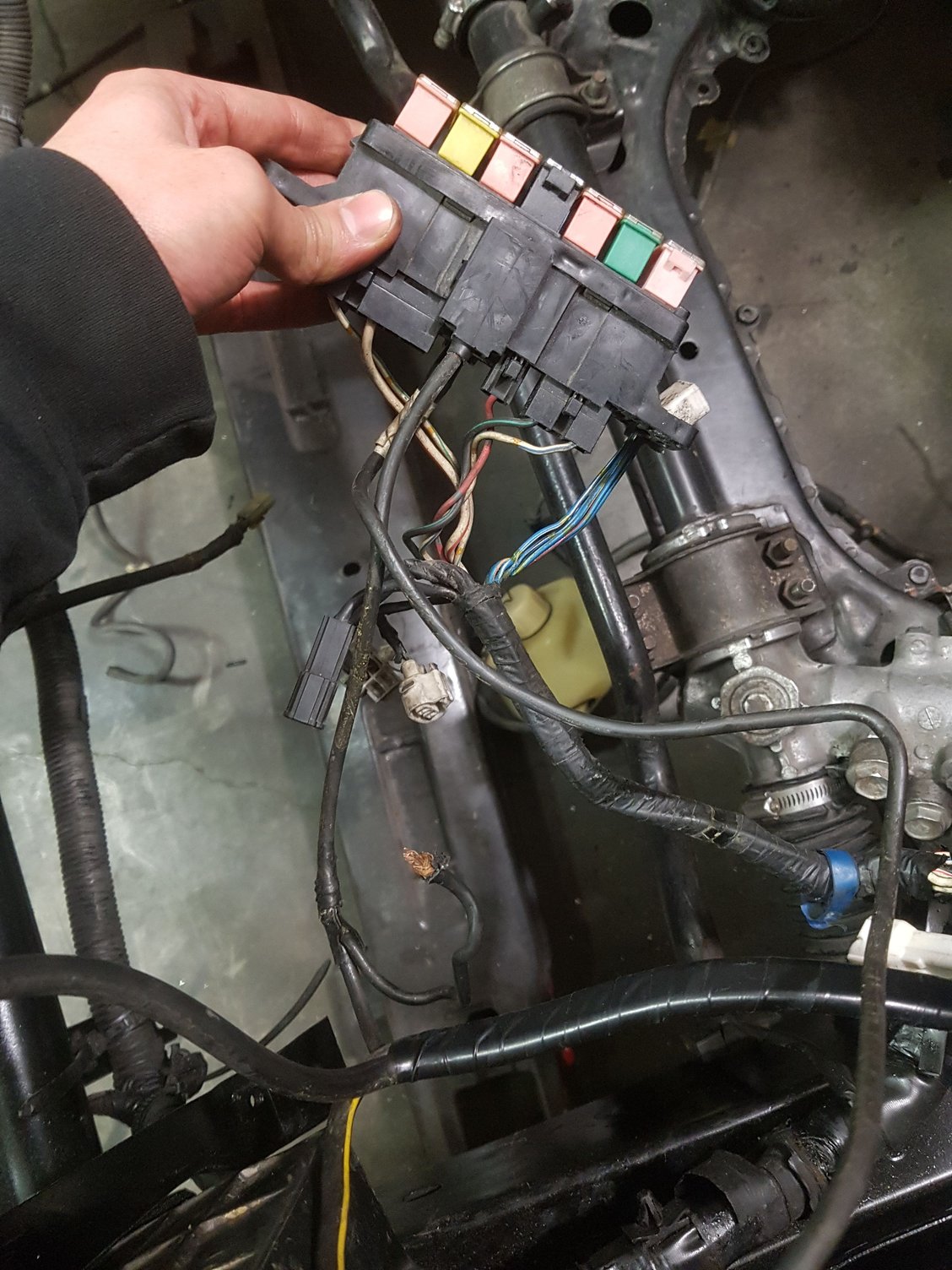

Below is a pic of the mentioned wire. I have the positive, negative, and other fuse box wire that runs to the positive terminal.


If j9fd3s answers this I might just have to buy them a coffee 😅
Reply
Old Dec 29, 2020 | 10:20 AM
  #2
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,835
Likes: 3,233
From: https://www2.mazda.com/en/100th/

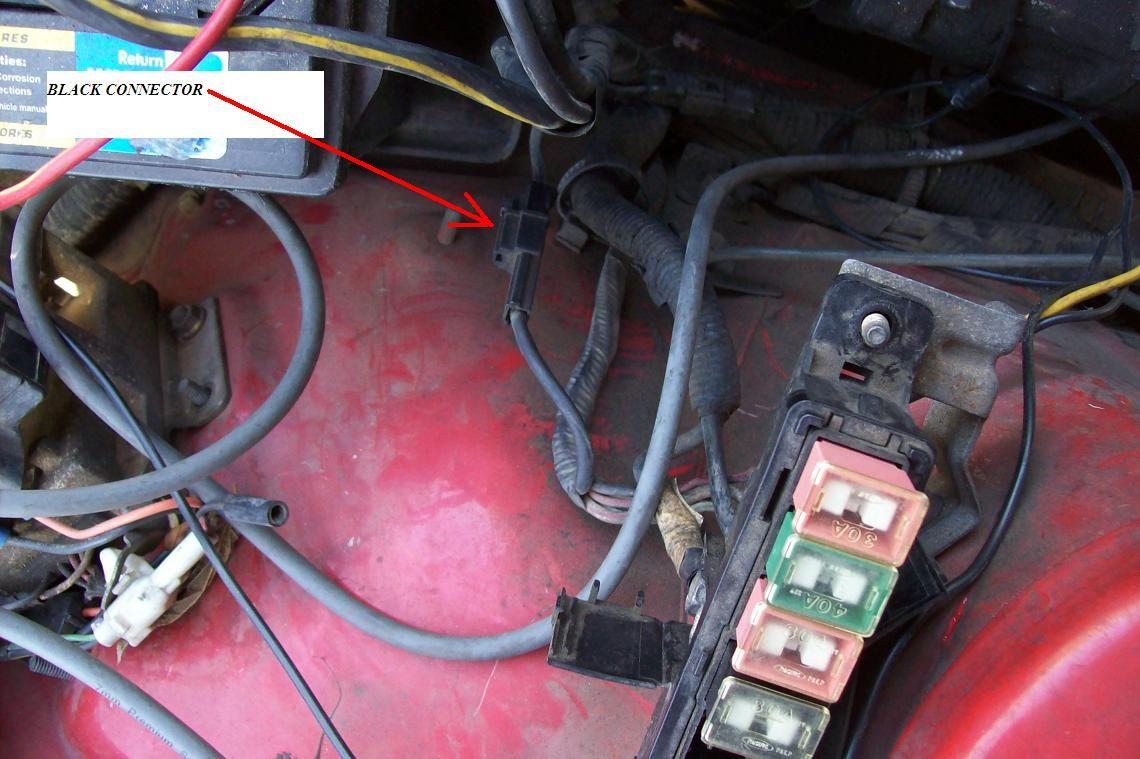

lol, i like coffee! um i have no idea, and apparently its too cold to go look, but the red arrow goes somewhere, and the one green arrow should have a connector, and maybe they go together?
the hot start assist bottle is in the wrong place, and the clamp on the steering rack boot clamp is not concours correct either

Reply
Old Dec 29, 2020 | 12:11 PM
  #3
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
As j9fd3s eluded to, I believe those two wires (as indicated by red & green arrows in j9fd3s' photo) are connected together. Your wire with the bare end provides 12V battery voltage to the interior fuse block and ignition switch which than powers the interior accessories.


Last edited by Hot_Dog; Dec 29, 2020 at 05:59 PM.
Reply
Old Jan 7, 2021 | 12:31 AM
  #4
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
Thanks for the help guys, did some testing and got power to the interior with that wire connected looks like a previous owner snipped that connector off so I'll figure out something in the meantime.

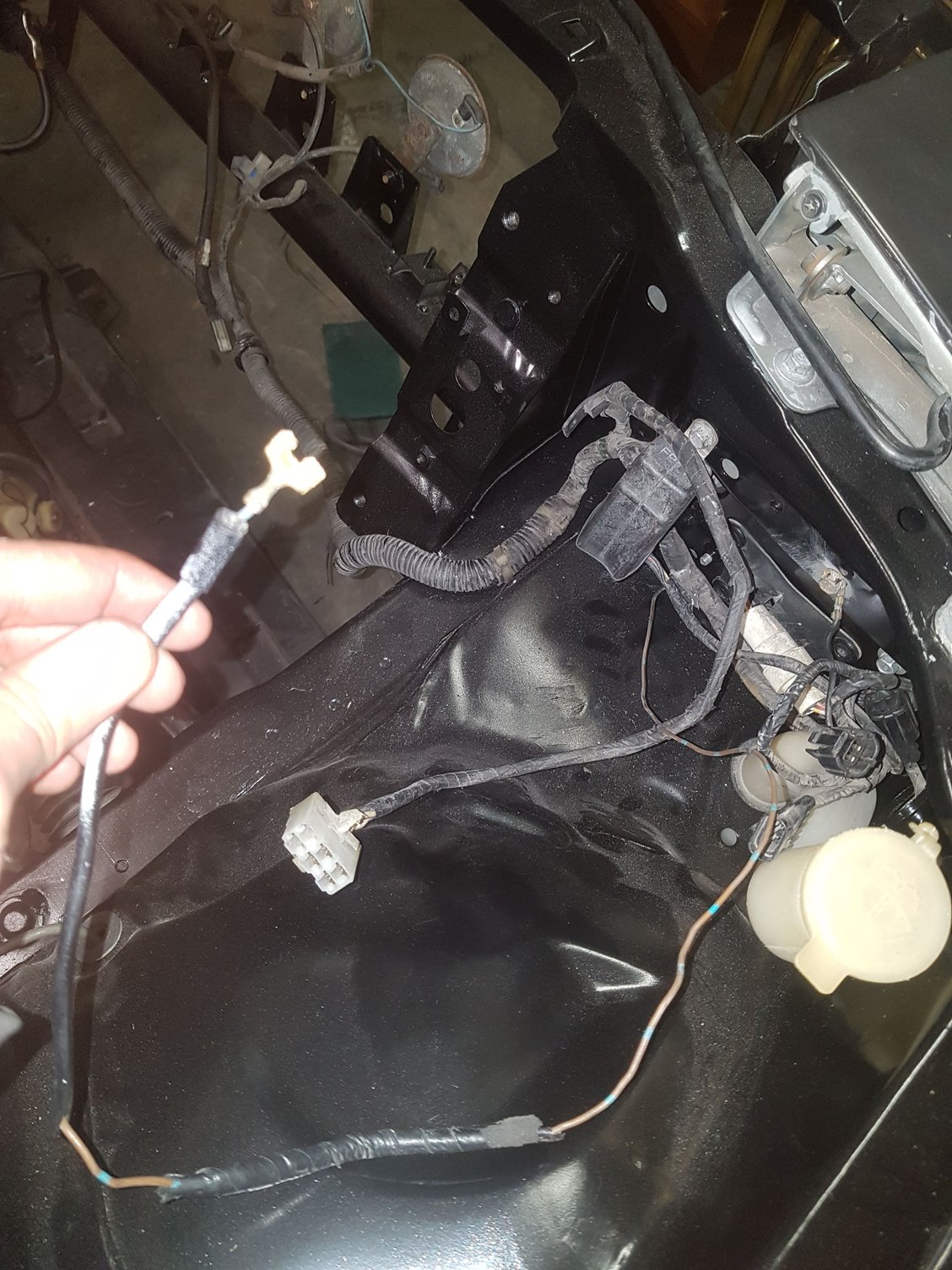

After looking over the harnesses and reading up on them I believe I have most of it figured out. There are 2 connections I'm confused about and I have them pictured below. Does anyone know if these are indeed OEM or if they might be some aftermarket thing someone installed. The brown/blue wire is on the front harness and the other is on the emissions harness.



Reply
Old Jan 7, 2021 | 11:48 AM
  #5
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
The 7-pin straight connector looks like it attaches to the airflow meter (AFM). I don't recognize the connector with the single brown/blue (BR/L) wire. Maybe it attaches to a temperature or pressure sensor?
Reply
Old Jan 7, 2021 | 04:50 PM
  #6
BrapMobile's Avatar
Junior Member
Tenured Member: 10 Years
iTrader: (3)

Joined: Mar 2014
Posts: 46
Likes: 4
From: New Mexico
Does a buzzard go off when you turn your ignition on? I'm pretty sure that brown wire is the coolant level sensor. It should be attached to the sensor that goes into the radiator but looks like the PO snipped it. You'll need to ground it else the warning buzzard won't turn off.
Reply
Old Jan 7, 2021 | 11:33 PM
  #7
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
Originally Posted by BrapMobile
Does a buzzard go off when you turn your ignition on? I'm pretty sure that brown wire is the coolant level sensor. It should be attached to the sensor that goes into the radiator but looks like the PO snipped it. You'll need to ground it else the warning buzzard won't turn off.
Interesting that you mention that, when I hooked the battery up I actually was getting a buzzer going off a few seconds after turning the ignition to acc/on and forgot to mention that. I'll take a look at the radiator tomorrow and see what sensor you're talking about.
Reply
Old Jan 8, 2021 | 01:28 AM
  #8
mr_vaughn's Avatar
Chillin
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Feb 2002
Posts: 684
Likes: 5
From: LA,CA
For the 7 pin connector it look like that is in the firewall area where the grommet goes to the ECU.
I think it could the the Wiper motor connector since it looks like the ABS/Cruise contrl connector is right by it.

When asking questions, add harness locations.
Reply
Old Jan 8, 2021 | 09:52 PM
  #9
BrapMobile's Avatar
Junior Member
Tenured Member: 10 Years
iTrader: (3)

Joined: Mar 2014
Posts: 46
Likes: 4
From: New Mexico
Originally Posted by DirtyVert
Interesting that you mention that, when I hooked the battery up I actually was getting a buzzer going off a few seconds after turning the ignition to acc/on and forgot to mention that. I'll take a look at the radiator tomorrow and see what sensor you're talking about.
In that case it's almost certainly that wire. The sensor should be at the top of the radiator near the cap. If it doesn't exist or if you can't reconnect it you can just ground the wire. The 7 pin connect is most likely the AFM the wiper motor connection looks much different.
Reply
Old Jan 9, 2021 | 02:05 AM
  #10
mr_vaughn's Avatar
Chillin
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Feb 2002
Posts: 684
Likes: 5
From: LA,CA
S4 or S5?
the S5 AFM is a 5 ping connector
Reply
Old Jan 10, 2021 | 09:03 AM
  #11
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
Originally Posted by mr_vaughn
S4 or S5?
the S5 AFM is a 5 ping connector
Not clear on that either, but in his profile he mentions '87 NA RX7 and I assumed that was the car. Apparently, the S4 AFM uses a 7-pin straight connector (https://www.rockauto.com/en/moreinfo...192339&jsn=394).
Reply
Old Jan 22, 2021 | 12:28 PM
  #12
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
Those who said it was the AFM sensor were correct, I forgot those had a fairly different looking connector compared to others in the engine bay.

On the bundle of wires that runs to the trans there appears to be a small white spade connector half way down that's been snipped. The end thats attached to the front harness is a yellow/red wire and the end that has been snipped is a solid black. This appears to be the last cut wire and it has me stumped since both transmission sensor connectors are intact. Even worse is that the partial spare harness I've been using as a guide has been snipped in the exact same spot. Here are some pics I took, any help is appreciated



Reply
Old Jan 22, 2021 | 06:34 PM
  #13
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
The transmission has two switches on it. One is the neutral switch which has a 2-wire connector with a green/black (GB) and a black (B) wire going to it. The other switch has 4-wires for the 5th gear / reverse (or backup light ) switch. The reverse switch wires are, I believe, brown (BR)/yellow (Y) and red (R)/green (G) with male and female bullet connectors. The other two wires for the 5th gear switch are the two white male and female spade connectors as shown in your first photo in post #12. Here's a pic of the switch https://www.atkinsrotary.com/store/8...0-17-640D.html

Last edited by Hot_Dog; Jan 22, 2021 at 06:52 PM.
Reply
Old Jan 25, 2021 | 02:33 PM
  #14
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
Originally Posted by Hot_Dog
The transmission has two switches on it. One is the neutral switch which has a 2-wire connector with a green/black (GB) and a black (B) wire going to it. The other switch has 4-wires for the 5th gear / reverse (or backup light ) switch. The reverse switch wires are, I believe, brown (BR)/yellow (Y) and red (R)/green (G) with male and female bullet connectors. The other two wires for the 5th gear switch are the two white male and female spade connectors as shown in your first photo in post #12. Here's a pic of the switch https://www.atkinsrotary.com/store/8...0-17-640D.html
Ok it looks like both transmission sensors are intact then. The snipped connector is located maybe 4-6 inches above the wires that run from the main harness to the transmission sensors.

Also as a side question, bullet connectors don't have polarity right? (They can be connected either way)
Reply
Old Jan 25, 2021 | 04:54 PM
  #15
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
>>> Also as a side question, bullet connectors don't have polarity right?

Correct. The backup light switch just completes the circuit. One wire that goes to the switch supplies 12V and the other wire from the switch goes to the backup light bulbs which are than grounded.
Reply
Old Feb 3, 2021 | 10:17 AM
  #16
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
So moving onto the fuel system and I discovered most of my injector clips were cracked or broken. This seemed to be fairly common after doing some research and it looks like there are a couple replacement options (some Borg warner part number or ebay aftermarket). I took one look at them and noticed they kinda looked like ones off a civic so I took a trip to the junkyard and snipped a set. Got home and they are almost a perfect fit! Just needed to shave off a small tab on the inside of the injector clip. Plus there are literally millions out there and most seem to not be brittle at all.

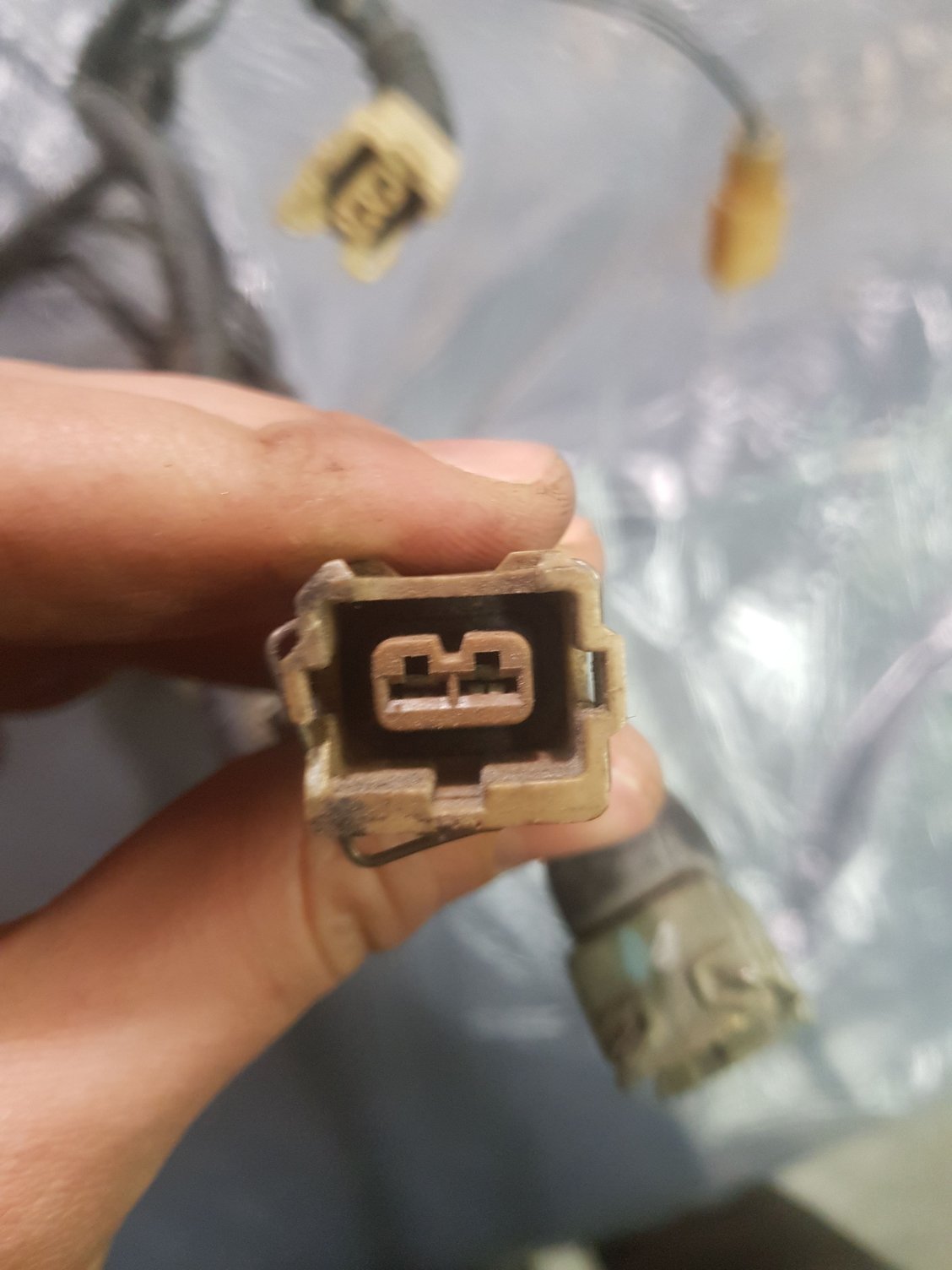

When preparing to splice them into the harness I noticed there are these 2 green plugs that look similar to the injector one but have an off-center tab. I almost thought they were injector plugs but the location didn't really make sense. Does anyone know off the top of their head what these attach to? If I had to guess maybe a solenoid of some sort. Also I believe injector wires just complete a circuit (no polarity), can anyone confirm before I crimp them on backwards lol






Reply
Old Feb 3, 2021 | 12:41 PM
  #17
Hot_Dog's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Nov 2001
Posts: 1,520
Likes: 231
From: Alexandria, VA
One of those connectors probably connects to the water temperature sensor (https://www.ebay.com/itm/39239187698...BoCbyAQAvD_BwE)

I'm not sure where the other one connects to.
Reply
Old Feb 4, 2021 | 10:07 PM
  #18
BrapMobile's Avatar
Junior Member
Tenured Member: 10 Years
iTrader: (3)

Joined: Mar 2014
Posts: 46
Likes: 4
From: New Mexico
The plug that branches off the injector is your water temp sensor plug. I think the other one is the by-pass air control valve but it's hard to tell without knowing the wire colors.
I tried posting a screenshot but it didn't seem to work scroll down to the bottom of this wiring diagram and you'll see emission harness. Reference that.

http://www.wright-here.net/files/man...ingDiagram.pdf
Reply
Old Feb 6, 2021 | 11:38 AM
  #19
DirtyVert's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 43
Likes: 3
From: Kelowna BC
Thanks for the replies I think you two are right, I took another look and those 2 sensors use that style of connector. It just had me confused because of where they were on the harness.
Reply
Old Apr 16, 2021 | 08:30 AM
  #20
Ithad1980's Avatar

Joined: Apr 2021
Posts: 2
Likes: 0
From: New York
Wink re

Originally Posted by DirtyVert
So yesterday I decided to grab the battery out of my daily and test the state of the rx7s electrical system to see how my wiring repair has been going. Previous owner snipped and ripped the 13b out for a v8 but never finished the job 🤦‍♂️

After hooking it up I confirmed that I had power to the headlights, taillights, and hazards. I believe to have traced the issue to the ignition switch not getting power because of the threads I read mentioning to test turn signals. A common problem seems to be "a spade connector 6 inches from the engine fuse box" being disconnected but Im having trouble finding it. There is a thicker wire probably around 6 gauge about 6 inches under the fuse box but I don't know if it's supposed to be the spade connector. Where does this spade connector even connect to?

Below is a pic of the mentioned wire. I have the positive, negative, and other fuse box wire that runs to the positive terminal.


If j9fd3s answers this I might just have to buy them a coffee 😅
Well, I don't know but I think that this repair manual of rx7 could be helpful for you. You can download a PDF from https://onlypdfmanuals.com/workshop/mazda/rx-7. Repair manual have all infromation about the repairing.

Last edited by Ithad1980; Apr 17, 2021 at 06:39 AM.
