Ok yall, I tried searching and my searchin fu fails me, it seems.

Anyhow, As I understand from the Haynes manual there was just the 2 top nuts and the one screw. So I took the screw out and got the shock out but then I was stuck trying to get the last bit off.

I mean, it does come off right? The Tokico shocks already have the bushing and then a little metal bit.

Do i need to get a big monkey wrench on it? I have tried applying a torch for a little bit after some liquid wrench.

And If am doing this wrong, I apologize, but thank you for any help/suggestions.

misterstyx69

iTrader: (142)

put a pry bar in between the shock and the spindle.
the shock is just sitting on that with a rubber bushing.
You don't need to take that PIN off(the 21mm or so thingie that the shock is on.)The bottom of The shock is just holding on with the rubber bushing onto that,Using the bar and a bit of spray lube it should pop and slide right off.

thatman

iTrader: (4)

Im sorry, I wasn't describing it right.

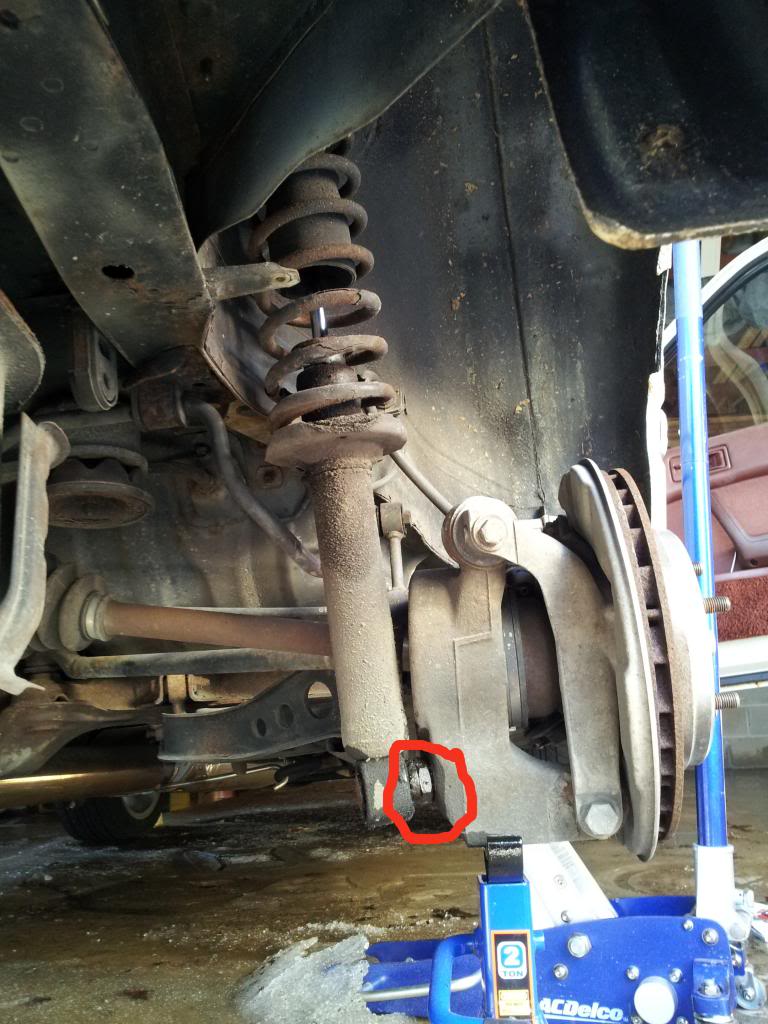

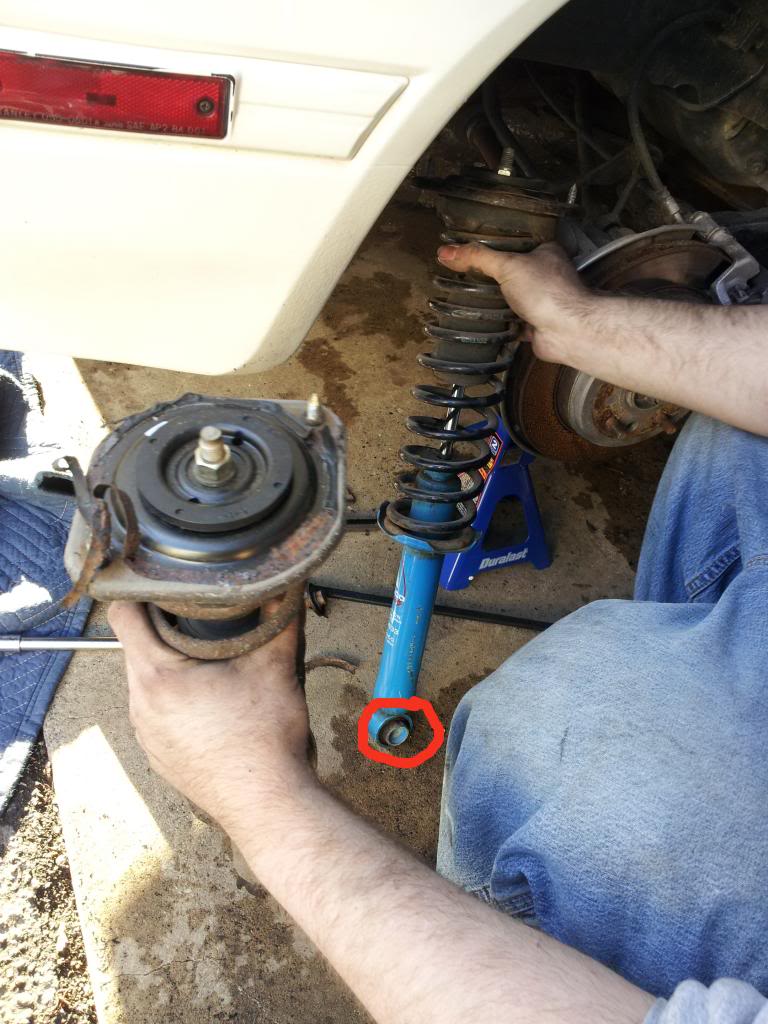

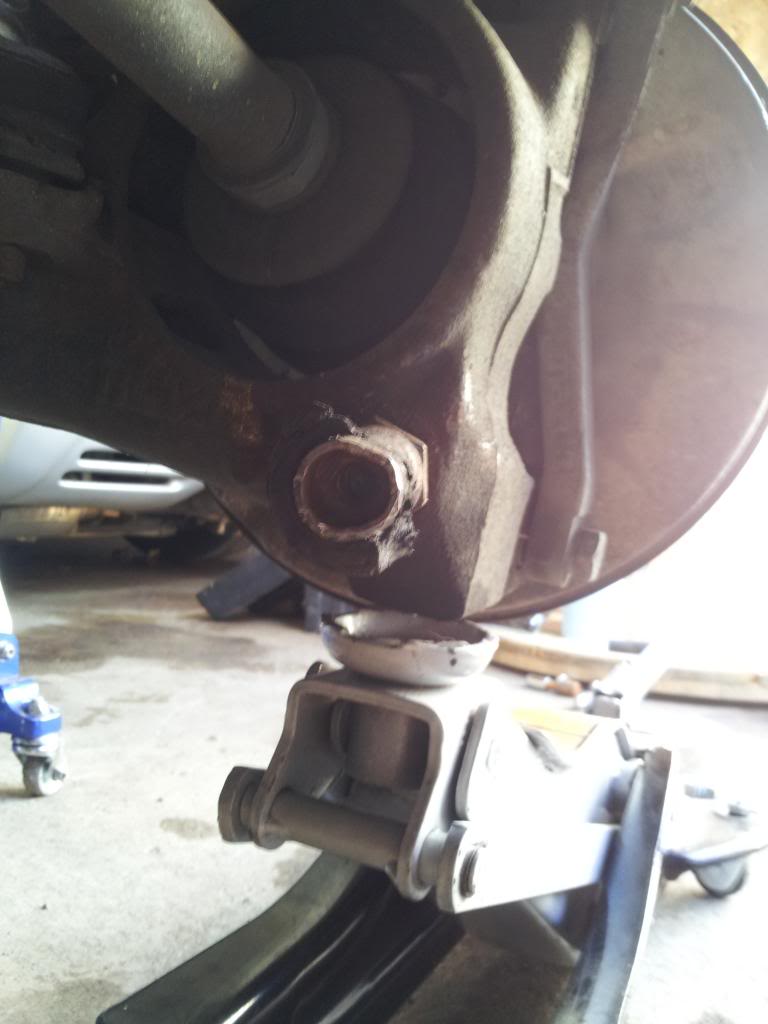

So I got the shock off but the bushing was stuck onto the spindle that I circled before.

Am I just to get the bushing off and this ^ part should slide over it?

midnightbluefc

iTrader: (19)

i dont believe that you remove that bigger fitting on the arm. its just the 17mm bolt and the assembly slides off. i have never removed that piece off putting several types of coil overs on different cars

thatman

iTrader: (4)

So then the metal pit on the Tokico goes over that and I just really need to clean the bushing that's stuck on there off. Correct? Because the Bushing was still stuck on there after the shock came off.

clokker

iTrader: (2)

Correctamundo.

thatman

iTrader: (4)

OOOK. Well I will show some pictures then when I re-tackle this next weekend.

Thank you all for the help!

misterstyx69

iTrader: (142)

I know what happened!
If the Sleeve of the Bushing from the shock is on there,then it needs to come off.
That was the FIRST big encounter I had with my First shock swap,and was the MAIN reason for Buying a Dremel,which I will not go without now!
I cut that bushing off and It put a big smile on my face.
..another thing you "could do" is just get that Part OFF the spindle assembly and buy another one.That is if you don't want to cut that shock bushing sleeve off of it.
Buy that at the dealer.

thatman

iTrader: (4)

So, I can cut just a little bit into whats left on there and it should dislodge itself? And then if I cut too far I have to get it off the spindle assembly and buy a new par then?

So

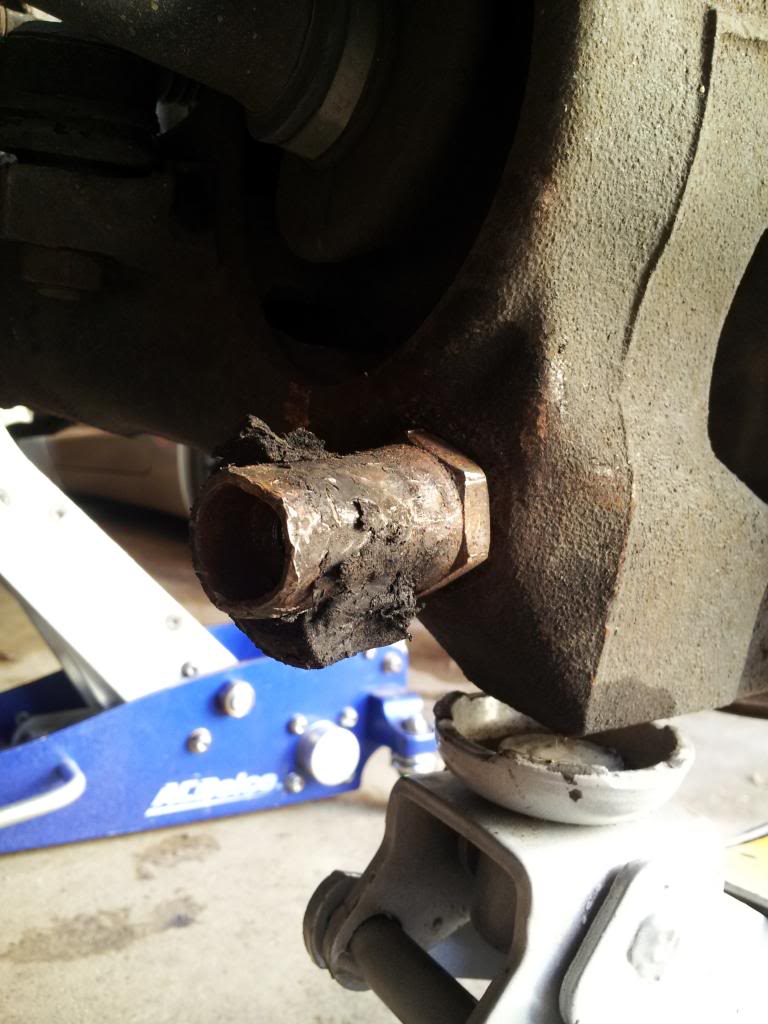

Try to cut into this:

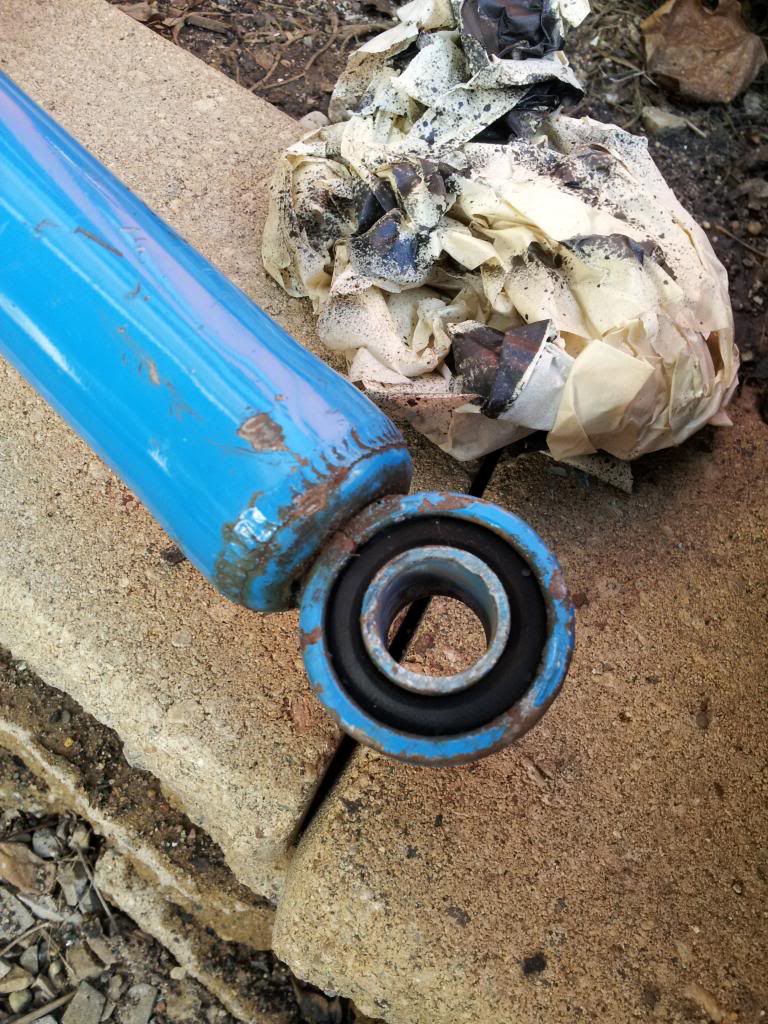

and dont just try to remove the metal bit here.

Thanks again for all the help!

clokker

iTrader: (2)

Cut the old sleeve off.

misterstyx69

iTrader: (142)

/\..this.
that sleeve is from the shock so it needs to be cut off to get the new shock on.
Take a dremel cutting disc and slowly make a line down the length of the bushing.
you can cut through at the Outer part,but once you get ON the PIN,then BE CAREFUL or else you have to take that part off and get another one.
I used the dremel and a chisel.I didn't cut fully through the length of the bushing,but I managed to free it off that pin.
Penetrating spray is your friend too on this job.

thatman

iTrader: (4)

Awesome, thank you all, I just needed that extra bit of explanation. On a side not, am I going to run into a similar problem with the fronts? I mean i know there isn't any bushing up there but it shouldn't be anything that some heat an PB Blaster shouldn't be able to fix right?

misterstyx69

iTrader: (142)

/\/\/\...No.
The fronts have 4 nuts(14mm?)on the top mount studs, up top and 2-17mm bolts on the bottom, that go through the shock mount collar and spindle assembly.

thatman

iTrader: (4)

Sometimes text just doesn't quite put it how it should sound. I know what the front has, I was beating the bush on asking if the fronts are usually all rusty, but that cant really be told on the internet.

But most underside bolts aren't too rusty on my car. So I kinda answered my own question.

thatman

iTrader: (4)

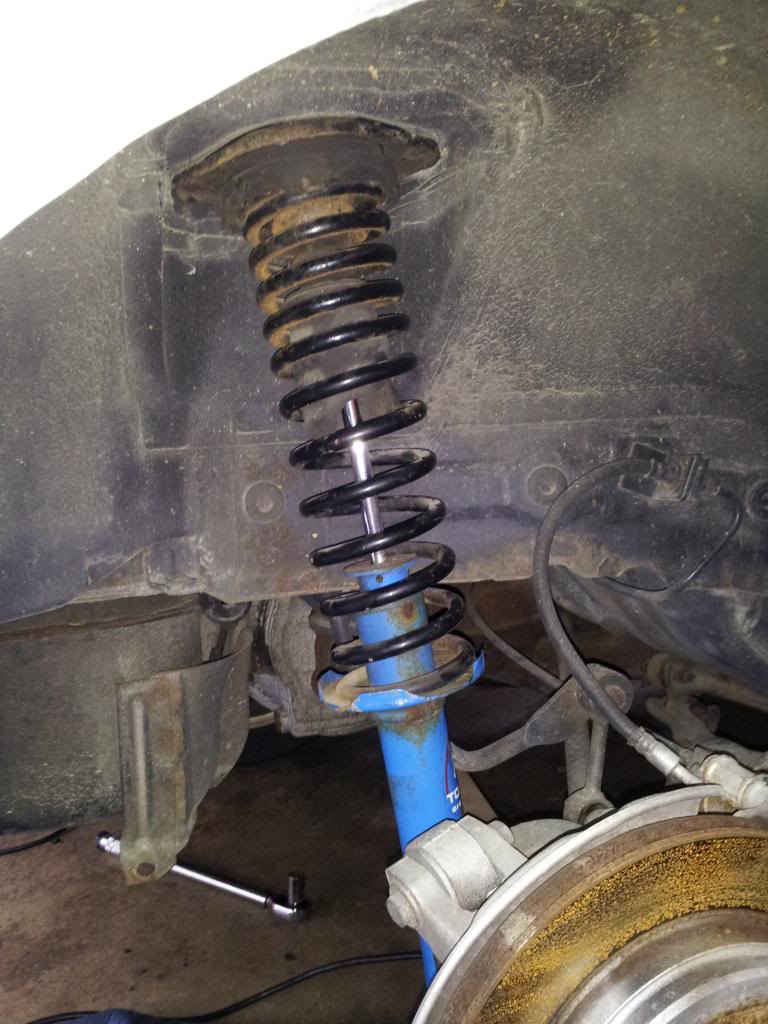

Okay, so I tried a dremel tool but it broke, so then I just used a grinder with a cutting tool and that worked amazing. Thanks again for all the help!

misterstyx69

iTrader: (142)

Fabulous job!.
welcome to the world of Rotary Mechanics!.
Fun huh?..

thatman

iTrader: (4)

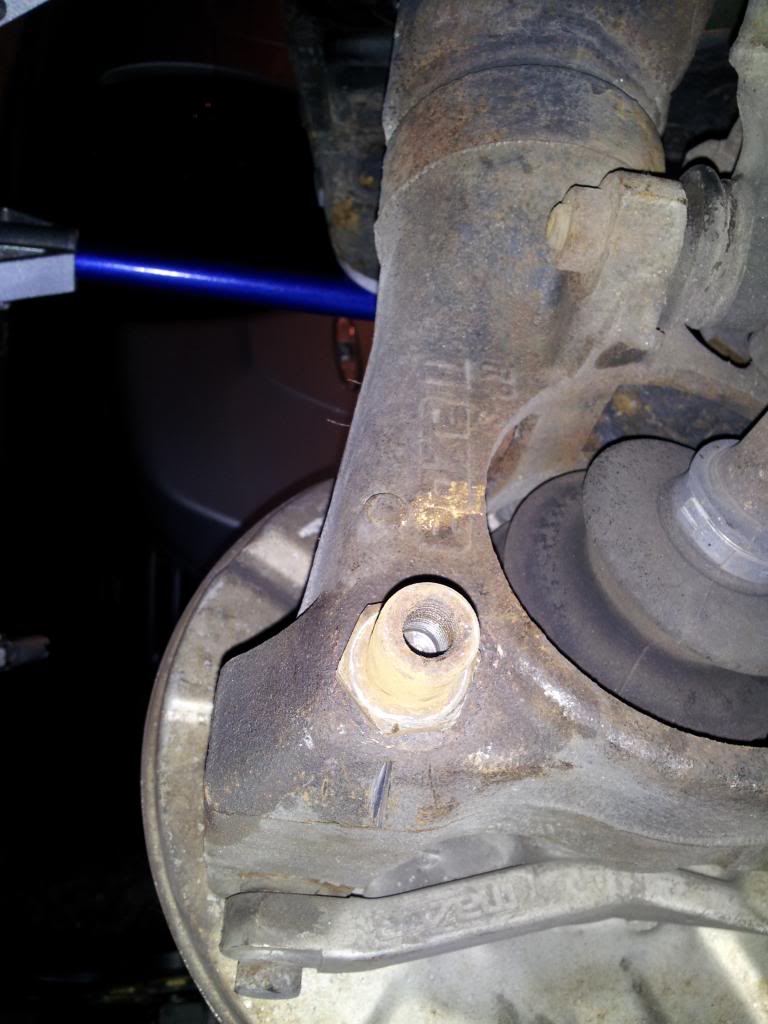

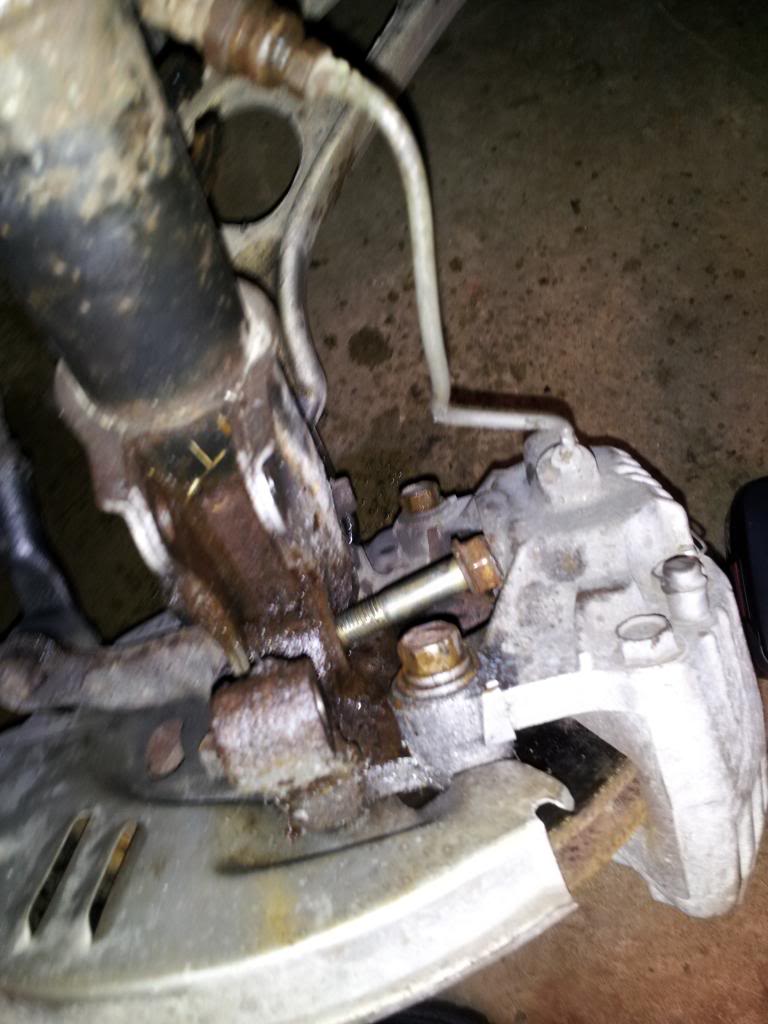

Also someone put this in wrong:

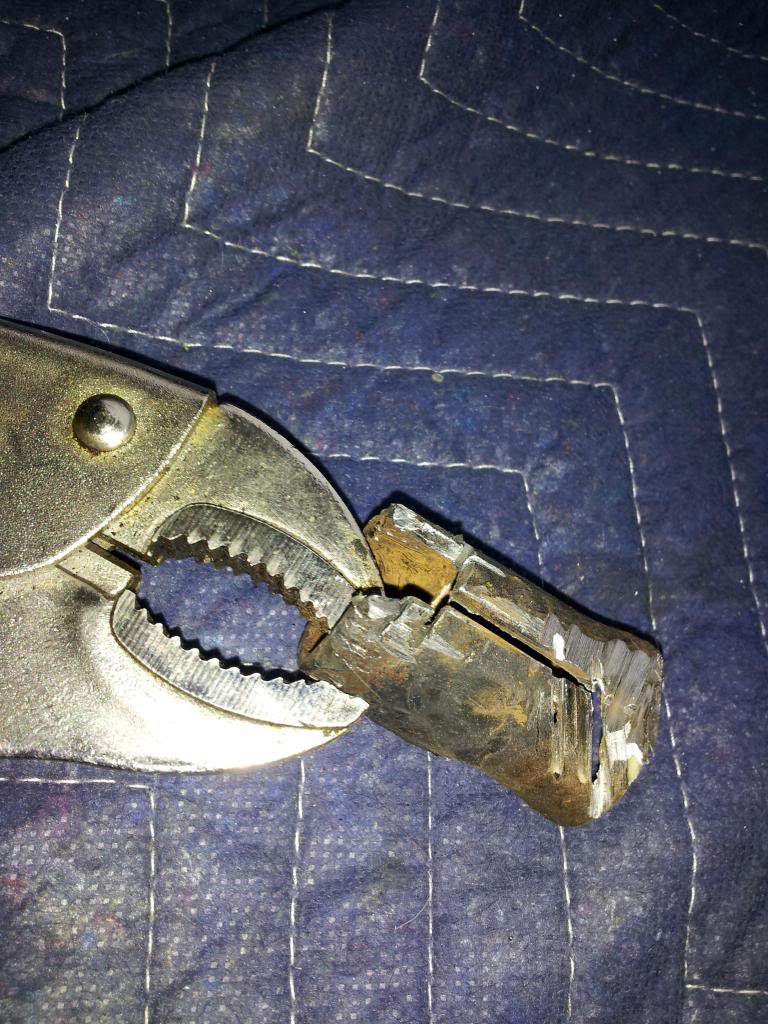

But after some cutting I got it.

clokker

iTrader: (2)

Wouldn't removing the caliper have made it possible to get the bolt out intact?

misterstyx69

iTrader: (142)

Ding,ding,ding!!!!
Makes it easy to zip the bolts on/off , as you can get at them Directly Head on.
In the future you can flip that bolt,so you do not have to take the caliper off.

thatman

iTrader: (4)

Yeah, my Impact drill just didn't have enough juice to take the caliper off.

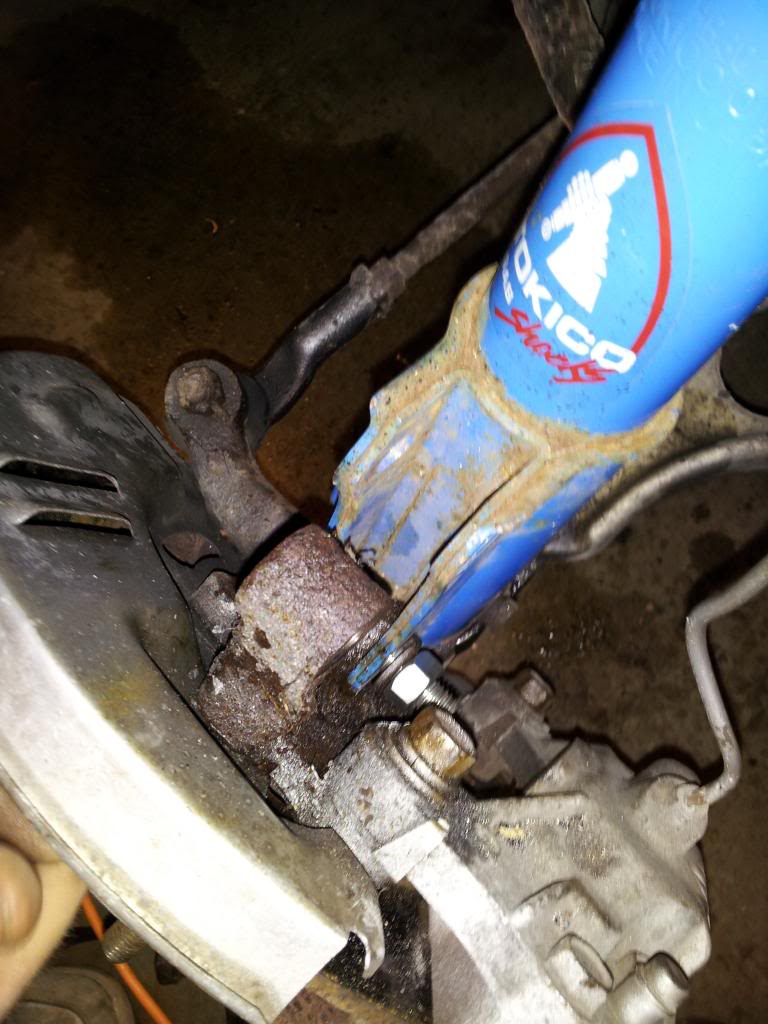

But as you can see I did flip it for any future endeavors.

misterstyx69

iTrader: (142)

Impact drill?..
Ohhhh..the the new-fangled stuff!
I remember workin on cars with a pair of lock pliers and a dream...lol!
After I got an FC,well,My tool box went from a 6.99 set of tools to a Freakin garage of duplicate **** that I still Can't FIND when I look for it..I know it's here somewhere..Dammit!!
