Ok, I searched for rats nest and I cannot find a good article with pictures on simplification of the vaccume system. Does anyone have a good post bookmarked? Why isn't there one in the archive??? I am sure it is a common issue. I want to stip it down as much as possible to simplyfy.
Thanks



Here's a link to one thread in the archives: https://www.rx7club.com/2nd-gen-archive-72/emissions-equipment-what-you-can-remove-how-112251/

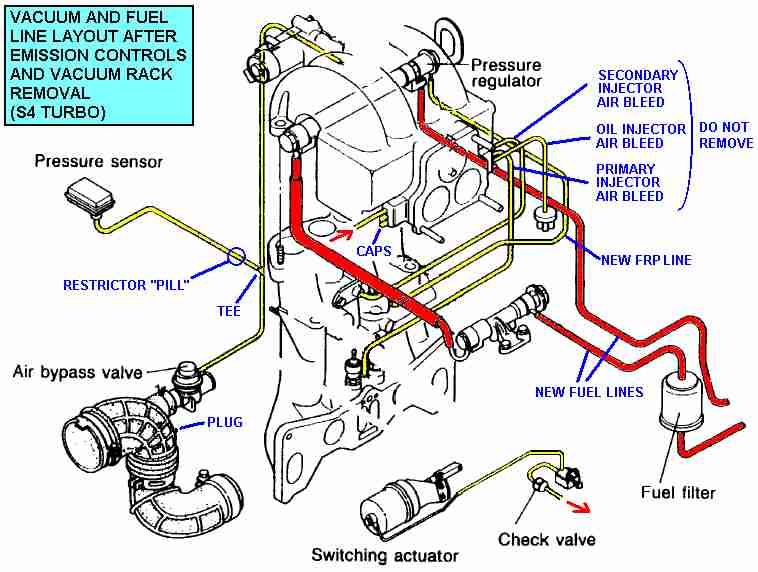

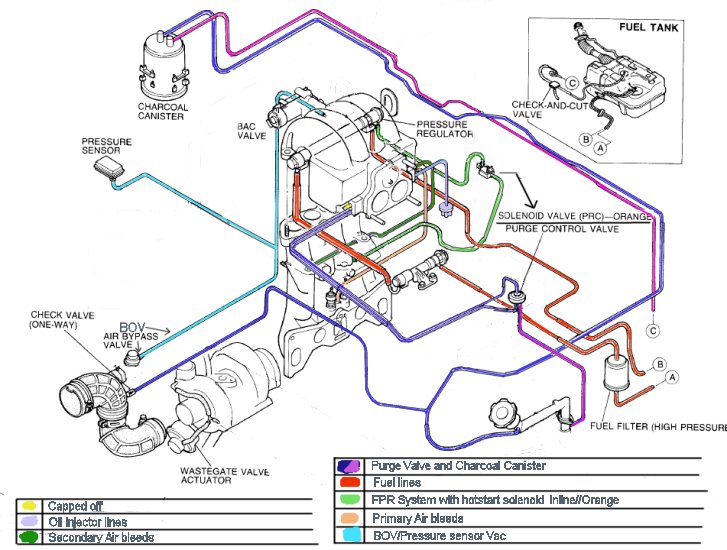

Below are attachments to three diagrams that I saved onto my computer when I was removing the rats nest.



tHANKS



I found that one... I cannot see the pictures, they are wayyyyyy too small.
Can you post them big? or email them to justin_b_hutto@yahoo.com
Thanks



I sort of disregarded the pics when I did it the first time.. Just look at the list of stuff you need to keep and do it that way. I think the pics make it more confusing.
