Question about injectors.........
#1
Senior Member
Thread Starter
Join Date: Jan 2003
Location: San Mateo
Posts: 508
Likes: 0
Received 0 Likes
on
0 Posts
Question about injectors.........

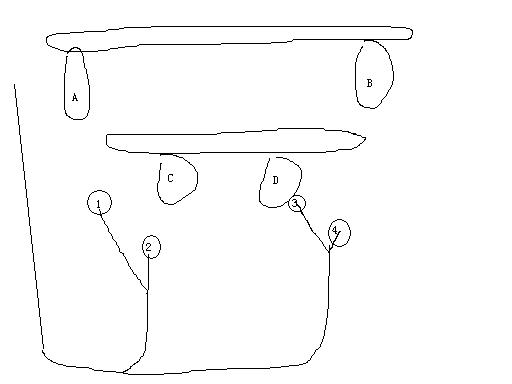

look the pic
ABCD are injectors
1234 are harness(1 & 3 are long wire)
I forgot how did them connect
anybody can tell me how?
I think should be:
1-A
2-C
3-B
4-D
but not sure
thx a lot!!!!
ABCD are injectors
1234 are harness(1 & 3 are long wire)
I forgot how did them connect
anybody can tell me how?
I think should be:
1-A
2-C
3-B
4-D
but not sure
thx a lot!!!!
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Your Primary injectors are the ones on the intermediate housing of the engine. They sit close together.
The Secondarys are on the intake manifold and sit higher up and further apart than the primays.
Attached is a picture/schematic. Notice the wire colors for the injectors. Match your car to those.
Now, in the middle of 87 they did away with the thing called a Solenoid Resistor, shown in the schematic.
So here is the trick if there is a trick to this. Just pay attention that the :
REAR SECONDARY: Gets a plug that has a LIght green wire with a Red stripe.
REAR PRIMARY: Gets a plug that has a Light green wire with a Black stripe.
FRONT SECONDARY: Gets a plug that has a Light green wire with a White stripe
FRONT PRIMARY: Gets a plug that has a plain Light green wire with NO stripe.
Each plug has two wires, just make sure that the above plugs have one wire that is the color of the above description.
The Secondarys are on the intake manifold and sit higher up and further apart than the primays.
Attached is a picture/schematic. Notice the wire colors for the injectors. Match your car to those.
Now, in the middle of 87 they did away with the thing called a Solenoid Resistor, shown in the schematic.
So here is the trick if there is a trick to this. Just pay attention that the :
REAR SECONDARY: Gets a plug that has a LIght green wire with a Red stripe.
REAR PRIMARY: Gets a plug that has a Light green wire with a Black stripe.
FRONT SECONDARY: Gets a plug that has a Light green wire with a White stripe
FRONT PRIMARY: Gets a plug that has a plain Light green wire with NO stripe.
Each plug has two wires, just make sure that the above plugs have one wire that is the color of the above description.
