rick_tj

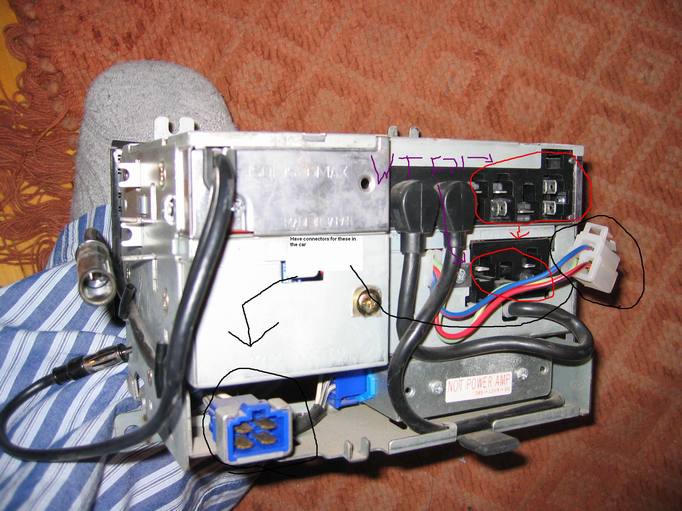

Hey guys. I was talking with BrassMonkey tonight about the factory radio. He sent me some pictures of his, but I'm not sure what some of the stuff on the back is for. Attached (if this works) is a picture with a highlighted area of what I'm talking about.

I've highlighted in black the connectors I still have in the car, and in red is what I don't know what they're for. Any help appreciated. Thanks to Monkey for the Sunday night studying pics.

Rick

Brassmonkey

iTrader: (2)

oooo you know Im always good for them

Icemark

rick_tj

Wow, thanks Mark! Does that apply to the S4 cd players as well?

Icemark

no, but they are simular

rick_tj

Where in the FSM was that under?

rick_tj

I hate to bring this back to the top again, but I have one more question. Which of those wires is supposed to be continuous power, for memory, and only intermittent power, for when the ignition is on for the thing to actually turn on? Thanks!

SureShot

The wiring diagrams are in the Body Electrical section of the manuals.

I have a mirror set at the link in my sig.

Icemark

Found in the FAQ for FC sticky thread at the top of the 2nd gen RX-7 section
