proposed tail light design LED
I'm getting a set of S5 tail in the mail this weekend. looking into fabricating som LED arrays for lights. i know about the whole oven thing to get them apart, but i just wanted some opinions on this design.

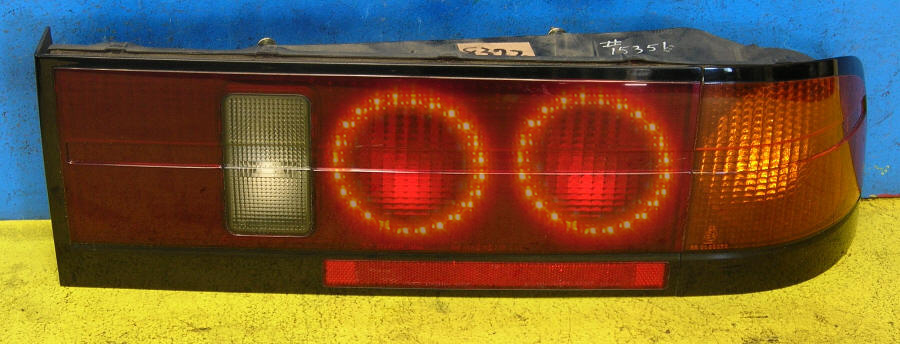

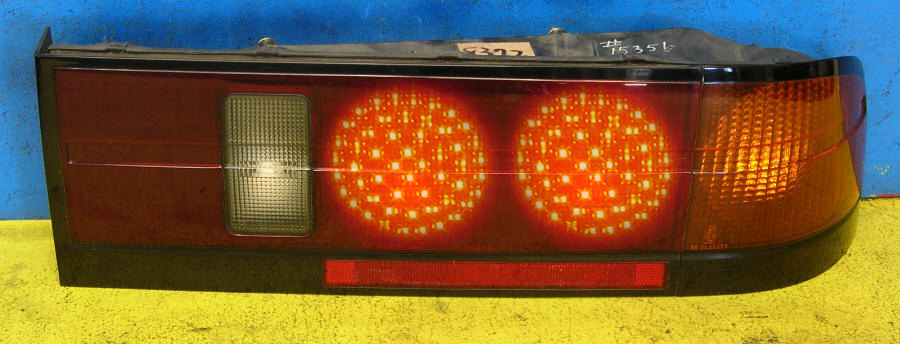

the ring of light around the outside might have the LEDs embedded in polyethylene (opaque milk bottle plastic) to soften the glow of them, and make them have more of a halo effect. while the actual "brake" light would be an array of narrow band LEDs.
the directionals would have just an array and an "emergency" flash pattern of the 4 quick pulses then steady on for 1 sec, off, repeat.
anyway, let me know what you think of my quick 5 min photoshop to see the concept.

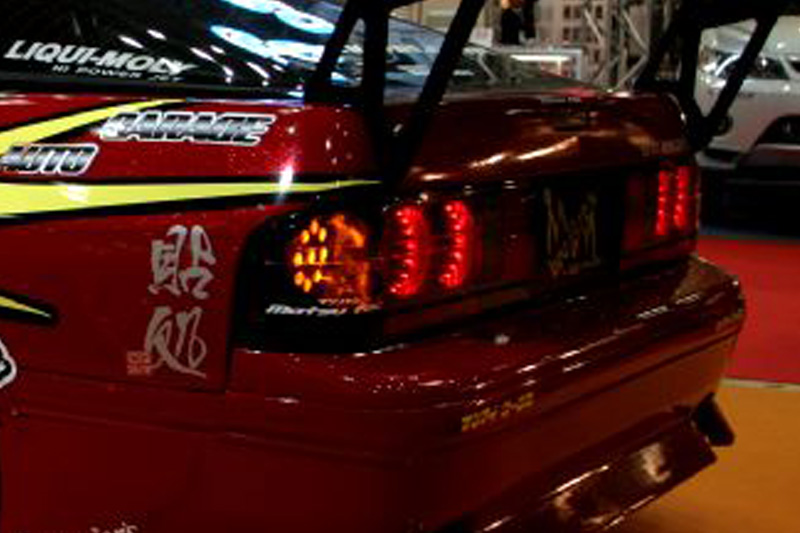

the last pic is that of the tuner that was floating around a while ago. i like the ring of light idea here but i'd change it slightly. the directionals look like tracktor trailer lights.
TR
the ring of light around the outside might have the LEDs embedded in polyethylene (opaque milk bottle plastic) to soften the glow of them, and make them have more of a halo effect. while the actual "brake" light would be an array of narrow band LEDs.
the directionals would have just an array and an "emergency" flash pattern of the 4 quick pulses then steady on for 1 sec, off, repeat.
anyway, let me know what you think of my quick 5 min photoshop to see the concept.
the last pic is that of the tuner that was floating around a while ago. i like the ring of light idea here but i'd change it slightly. the directionals look like tracktor trailer lights.
TR
12-15-06, 11:50 AM
#6
Originally Posted by hurleysurf24
not really feeling it .. if you are gonna try to pull led off you have to start with a full clear lens ... search on the forums and youll see what im talkgin about (some of the people on here took the inside junk out)
remove this..
Trending Topics
12-15-06, 07:54 PM
#14
On the prowl for an FB
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by Digi7ech
Those are some sexy LEDs
I woudl love LED's for lights. Imagine an Rx7 which all other lighst don't dim when you hit the brakes because of the voltage drain!
I woudl love LED's for lights. Imagine an Rx7 which all other lighst don't dim when you hit the brakes because of the voltage drain!
12-15-06, 08:05 PM
#15
What's the point??
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts

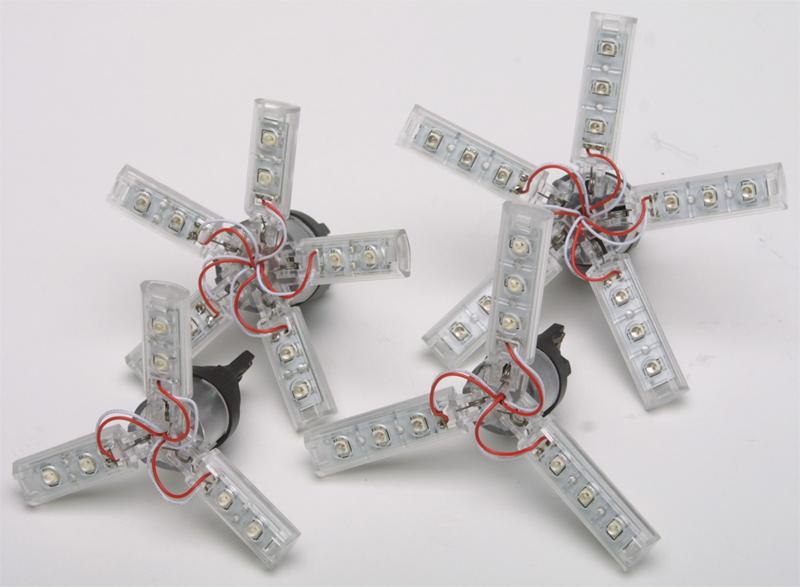

This was posted a while ago, but just in case you missed it try something like these (these are the large ones, there are also small and medium) http://cgi.ebay.com/ebaymotors/Spide...QQcmdZViewItem
12-15-06, 10:17 PM
#17
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts

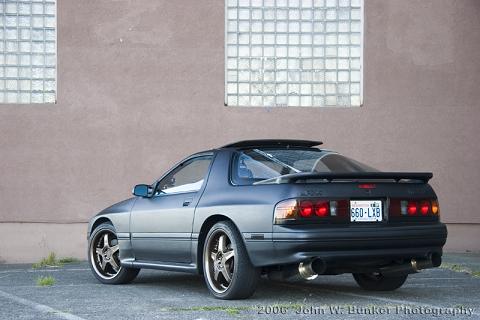

Part of me likes the clear look, the other part of me loves the stock look.. I really can't tell which way to go. Can you put the diffusers back in if you bake them out?
12-16-06, 12:10 AM
#19
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by saywhat??
i want this.
someone point me to a thread that explains how to do this? mainly just opening up the housing. i searched couldnt find anything solid.
someone point me to a thread that explains how to do this? mainly just opening up the housing. i searched couldnt find anything solid.

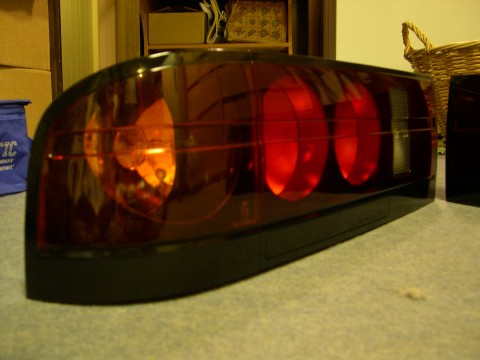

Open up the casing by putting it in the oven - certain temp/time or else.... or use a heatgun
then you take that clear **** inside.
You then spray the tails with some tint and clear coat.
Search for Modernized tails or tail lights...
Good Luck and posts the results up wheter successful or not..
12-16-06, 02:41 AM
#21
Originally Posted by micaheli
Can you put the "clear ****" back in?
Random tip: If anyone is thinking about clearcoating your taillights--wait until the weather gets warmer.
I ruined a set of my "modernized" tails because the clearcoat wasn't going on clear because of the temperature... It will get a creamy/glazed look. So unless you have a temp. controlled garage or a paint booth, you'll run into problems.
