progress pics of my 'vert
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia
progress pics of my 'vert
hey guys,, heres a few pics of were im at with my '87 Jspec 'vert
starting with my speaker pods, simple and taseful!
there house infinty 6" woofers with 1" boston neo tweeters mounted to the door trim.
the centre part of the door trims were replaced with coupe ones.
starting with my speaker pods, simple and taseful!
there house infinty 6" woofers with 1" boston neo tweeters mounted to the door trim.
the centre part of the door trims were replaced with coupe ones.
Last edited by Adsy01; Apr 9, 2003 at 06:55 AM.
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia
my 3 rockford fosgate amps and odessy battery.. these arnt normally seen, for those that dont know this area normally houses the spare wheel in the 'verts
the battery was relocated using the factory tray from the engine bay
the battery was relocated using the factory tray from the engine bay
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia

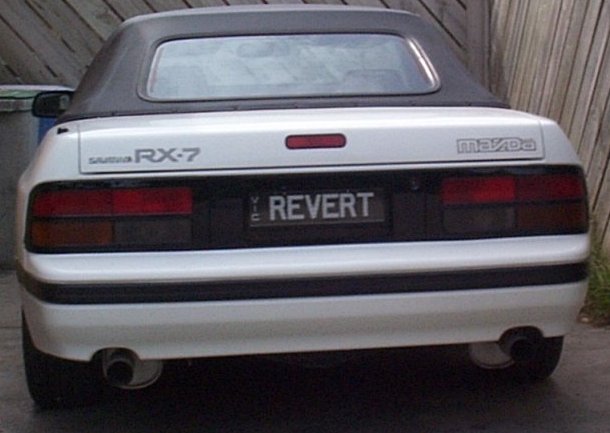

my custom plates.
for those that are slow it is Rotary Engine conVERTable
though i wanted the common folk to think "revert what?"
for those that are slow it is Rotary Engine conVERTable
though i wanted the common folk to think "revert what?"
Last edited by Adsy01; Apr 9, 2003 at 07:10 AM.
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia

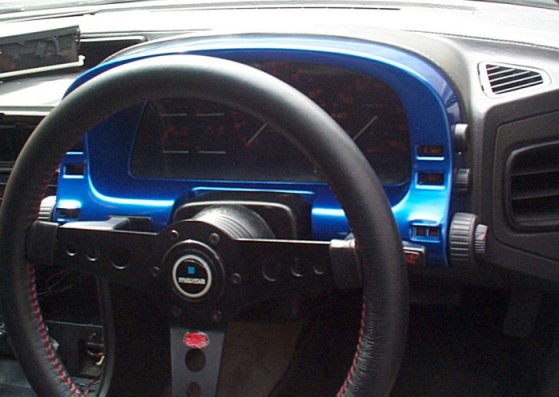

my SAAS steering wheel and rice boy blue dash parts,, i like them so nerr
the radio fascia / auto shifter surrond are also in the high bloss metalic blue.
PS its Auto because my left had got crushed and i can no longer drive a manual (Aussie RH drive cars)
the radio fascia / auto shifter surrond are also in the high bloss metalic blue.
PS its Auto because my left had got crushed and i can no longer drive a manual (Aussie RH drive cars)
Last edited by Adsy01; Apr 9, 2003 at 07:17 AM.
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia
and at 4pm today

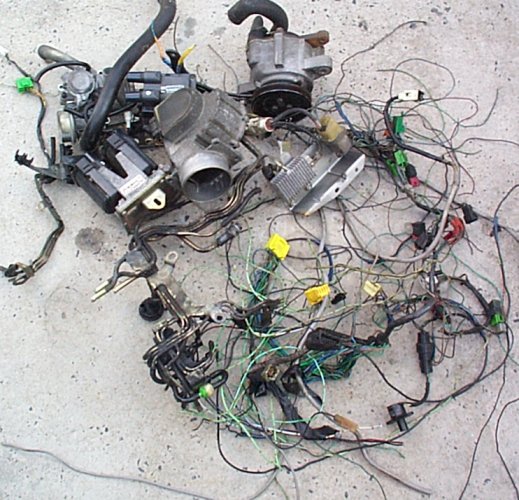

the rats nest, coils, air pump, air flow meter and anything else thats unwanted is making way for the fitment of my Microtech MTX-8L ECU and Turbosmart 2 stage boost controller
the rats nest, coils, air pump, air flow meter and anything else thats unwanted is making way for the fitment of my Microtech MTX-8L ECU and Turbosmart 2 stage boost controller
Last edited by Adsy01; Apr 9, 2003 at 07:27 AM.
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia

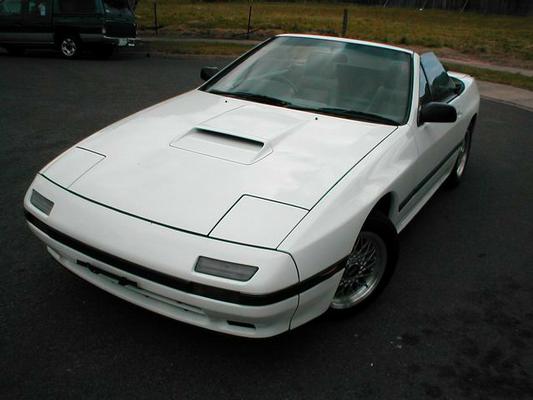

and finally
Once the ECU and boost controler are fitted, its getting the exhaust fitted, im getting two stainless mufflers made as we speak. then its off to the dyno to up the boost to a safe 14 PSI ( in cabin switchable to a lower setting too)
I will post more ECU instal pics as i make further progress, including the cleaning/ detialing of the engine bay parts( just nice and clean, not too bling bling)
Also hoping to get my 3200 RPM histall convertor soon then rebuild the auto trans with some extra clutch packs as to make it something like a sports car!! i wish i could still drive a manual!!
Once the ECU and boost controler are fitted, its getting the exhaust fitted, im getting two stainless mufflers made as we speak. then its off to the dyno to up the boost to a safe 14 PSI ( in cabin switchable to a lower setting too)
I will post more ECU instal pics as i make further progress, including the cleaning/ detialing of the engine bay parts( just nice and clean, not too bling bling)
Also hoping to get my 3200 RPM histall convertor soon then rebuild the auto trans with some extra clutch packs as to make it something like a sports car!! i wish i could still drive a manual!!
Last edited by Adsy01; Apr 9, 2003 at 07:37 AM.
Trending Topics
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia
thanks for the replys guys
they were made fron MDF they are about 2" thick, you sit them within the map pocketthen make a 1/2 circle section about 1/8" thick to make up for the thickness of the plastic of the map pocket.. then i cut out the "lipped" section at thew top edge of the map pocket with a dremel.. after trimming it you screw on the pod to the trim from the back and the speakers plastic grill trim through the mapocket into the MDF... its also good to screw it to the door itself too.
as i already pointed out i would love too, but my wrist wont stand up to changing gears, as it is i have to wear a brace when driving this!
i'll have more pics later today
Originally posted by Rotax5oo
I really like those speaker pods, could you post the secret to making nice ones like that? Nice ride.
I really like those speaker pods, could you post the secret to making nice ones like that? Nice ride.
Instead of rebuilding the auto, why not swap to a manual?
i'll have more pics later today
Thread Starter
ACBron Motorsport
Joined: Aug 2001
Posts: 608
Likes: 0
From: Melbourne Australia
Originally posted by Rotax5oo
MDF is a dense wood material right? How did you get it rounded in the shape of the speaker without fiberglass? Thats amazing.
MDF is a dense wood material right? How did you get it rounded in the shape of the speaker without fiberglass? Thats amazing.
Comrad, brother, friend. Please don't go ADDING weight to an already heavy car. Look to remove as much weight as possible. If you lose a stoplight drag to a VW you will shame us all!
i havent really added any at all, by the time you consider i no longer have the stock stereo gear (4 speakers amps ect..), the spare wheel and the air pump.. oh an my odessy battery is lighter than the one that was in it too
and as one of the other guys said, i think once ive got these mods done i wont have to worry about to many VW anyway
