owenxguo

where are these connect?
Can not find other heads.

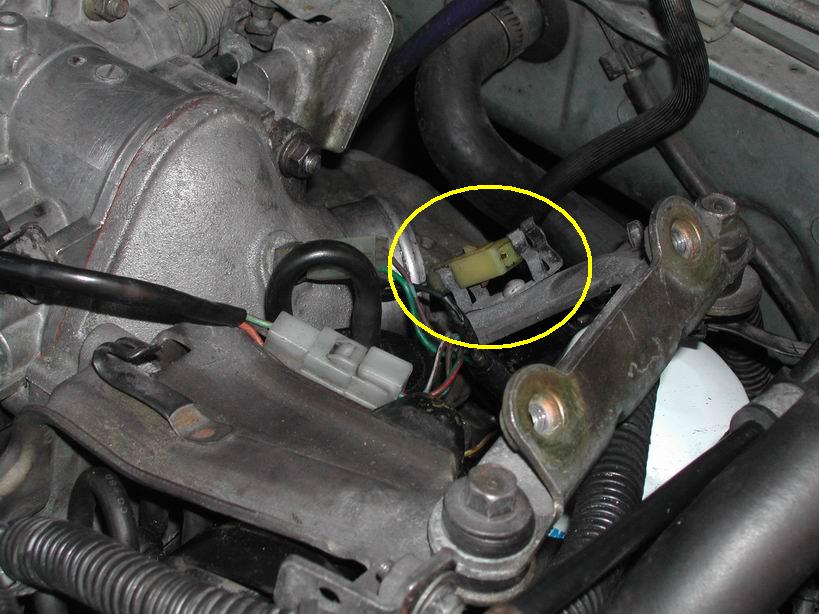

owenxguo

and this one
damn lost the connecter

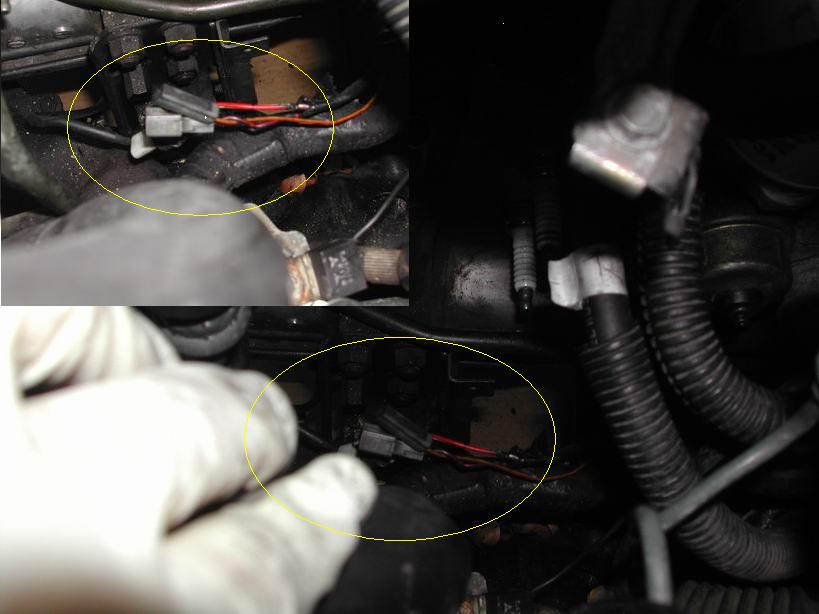

owenxguo

last one
also
can not find another wire


plz help me
really thx

J-Rat

iTrader: (2)

That looks like your O2 sensor wire...

Does NOT go to the ACV.

Jarrett

owenxguo

So where is O2 sensor connect?

J-Rat

iTrader: (2)

Well, its entirely possible that it goes to the wire you have marked. You need to get the color of that wire (hard to tell in the pic) and post it.. Then we can look at the FSM to see if its the O2 wire. I am trying to work one wire at a time here.

Jarrett

dr0x

Probably broke off. Its pretty common from the heat.



I believe this one goes to a sensor on the oil filler neck, but Im not 100% sure. Just look around at the base of the filler neck, there is a small sensor thats about 21mm wide.

owenxguo

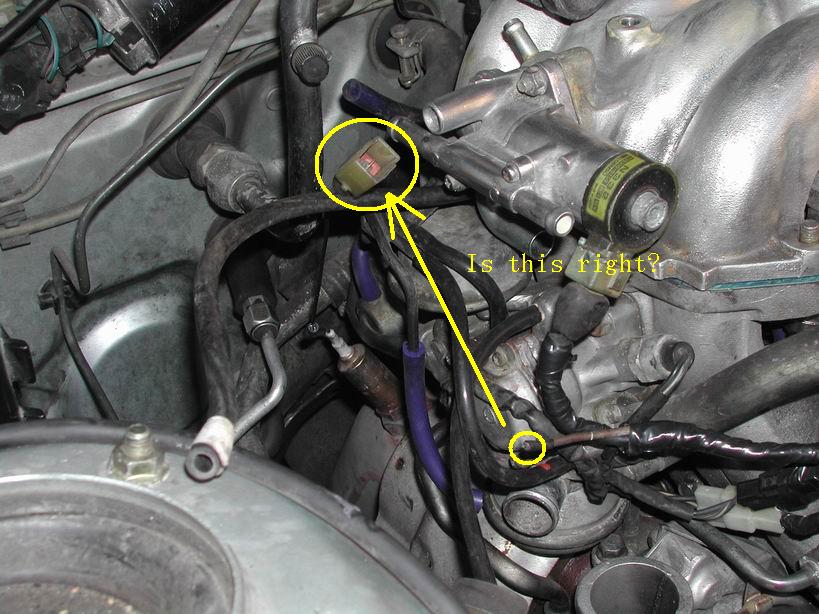

Yes I am sure it's O2 senser wire

dr0x

That is the o2 sensor wire, its broken. Get some more wire and solder it.

owenxguo

So that's right way to connect right?

dr0x

Yep. Just make sure you trim all the metal insulation off the wire before you solder it. You could blow your ecu.
