porting question.... ports too big? **pics**
01-07-06, 01:16 PM
#1
How NOT To Port An Engine

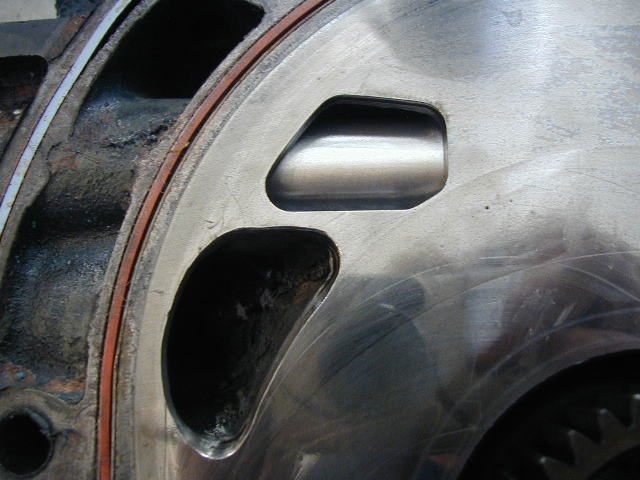

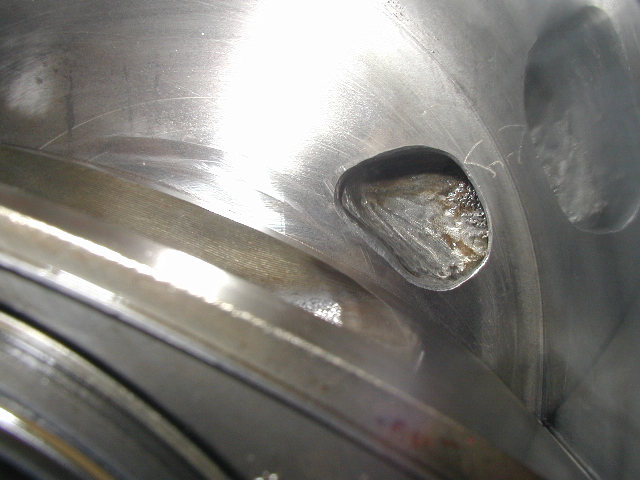

allright, i'ne had other threads about this engine and various problems that i've had with it. well to make a long stort i pulled this newly rebuild shortblock out beacause it was burning TONS of oil and smoking. With the help of fourm members i came to the conclusion that eather one or several oil controll rings/holders were bad/missing. OR there was a bad proting job done. well i just took the block apart and found that there IS porting done, it does not seem too huge but i have no experiance with porting. i found a pool of oil in the rear chanber when i took it apart also.
S5, N/A
S5, N/A
01-07-06, 02:43 PM
#7
Senior Member
Join Date: Jan 2004
Location: Pittsburgh/Johnstown, PA
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
01-07-06, 05:00 PM
#8
MazdaTruckin.com Founder
Join Date: Mar 2003
Location: East Charlotte, NC
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
Who ever did the port work on those top 2 pictures needed to be shot. Even if it hadn't gotten to the seals the inconsistancies in the port would have caused some power problems between rotors.
01-07-06, 05:00 PM
#9
Senior Member
Join Date: Aug 2005
Location: willis, VA
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts
Hey if you still have them and are planning on pitching them I’ll take them. I don’t plan on using them, I’d just use them well as dantheman_94080 said as paper weights if they are not rusted or carped up. I already have a white power coated rotor for a display. I would clean it up and have it coated as another display. Gotta love them rotaries!
Last edited by RX drift; 01-07-06 at 05:03 PM.
01-07-06, 11:29 PM
#14
Originally Posted by SonicRaT
I don't think even felix could screw something up that badly
01-09-06, 11:25 AM
#16
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Specifically -
The primary port exposes the oil ring.
The secondary port exposes the side seal ends.
As was said - the irons are FUBAR.
You're lucky if the rotor side seals are still good.
The primary port exposes the oil ring.
The secondary port exposes the side seal ends.
As was said - the irons are FUBAR.
You're lucky if the rotor side seals are still good.
Last edited by SureShot; 01-09-06 at 11:28 AM.
01-09-06, 02:16 PM
#17
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Yikes! No wonder you were having a smoking problem. I've actually seen ports that were worse, but not much worse. The secondary ports will eat the side seals and they all look like they go into the oil rings...
01-14-06, 12:35 PM
#19
i don't know who built it, hopefully i will find out. I guy i bought it from lives in arligton and he bought it through a friend.... no wonder noone wanted to put this on there car. anyway the guy who i got it from made it up to me, i don't think he knew about the porting. But hopefully he will tell me soon because DAMN, i hope i could have done a better job myself.
BTW: i think thos thread should be archived for "how not to port you engine"
BTW: i think thos thread should be archived for "how not to port you engine"
