Ported S5 Wastegate *pics 56k warning*
#6
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts

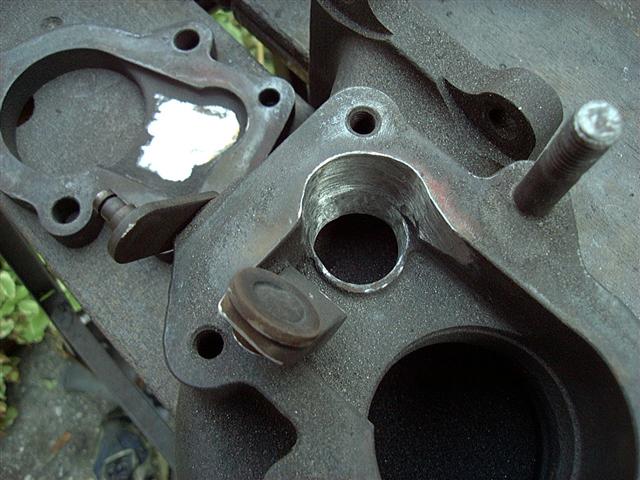

You can also get more flow by back cutting the door so it can open wider before hitting the back plate.
Here is an example:

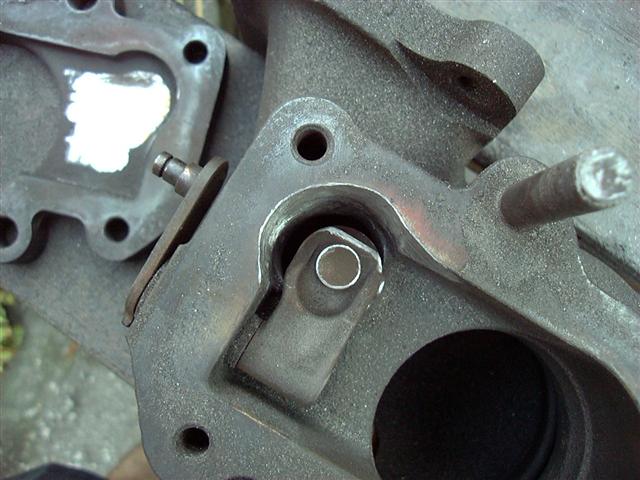

Also there is a funnel point that can be relived:
Here is an example:
Also there is a funnel point that can be relived:
#7
1991 Frankin7 ***RIP***
Thread Starter
Join Date: Sep 2003
Location: Abbotsford, British Columbia, Canada
Posts: 900
Likes: 0
Received 0 Likes
on
0 Posts
awesome, thanks for that info. thats exactly the kind of feedback i was looking for.
looks like i'll go back a touch up those spots that you mentioned.
looks like i'll go back a touch up those spots that you mentioned.
Trending Topics
#9
Rotary Motoring
iTrader: (9)
Also, you could port the front of the wastegate holes where they meet the exhaust runner lower and rounded while leaving the rear of the WH holes vertical of even porting in a little "bowl" to trap flow.
Basically, try to get the exhaust in the turbo housing to favor WG flow as much as possible. I even cut NACA ducts leading up to WH holes, but I am a freak.
Basically, try to get the exhaust in the turbo housing to favor WG flow as much as possible. I even cut NACA ducts leading up to WH holes, but I am a freak.
#10
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Here are my numbers:
Completely stock: 5-6-7-7-7
Gutted cats: 6-9-11-11-11 (big boost creep)
Ported waste gate & flapper clearanced: 5-6-6-6-6 (no boost creep)
Stock boost control removed, MBC in line: 9-10-11-11-11 (fully adjustable)
Completely stock: 5-6-7-7-7
Gutted cats: 6-9-11-11-11 (big boost creep)
Ported waste gate & flapper clearanced: 5-6-6-6-6 (no boost creep)
Stock boost control removed, MBC in line: 9-10-11-11-11 (fully adjustable)
#11
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Here are examples of my ported S4 wastegate. I would not recommend going this extreme unless you are running high compression, non-stock ports, or both. But I don't know the meaning of the word "boost creep"...
#12
1991 Frankin7 ***RIP***
Thread Starter
Join Date: Sep 2003
Location: Abbotsford, British Columbia, Canada
Posts: 900
Likes: 0
Received 0 Likes
on
0 Posts
very nice Aaron. i've back cut the wastegate a bunch as well, you just can't see it in the pics to well. the larger hole farthest from the turbine can't be ported much due to it running under the other port. if its ported to much then you'll get cracking as you all know.
once i get the car running again i'll post my results but the car won't be back for a while. i just ordered a motor for the car today so when it comes in i'll get to progress further.
once i get the car running again i'll post my results but the car won't be back for a while. i just ordered a motor for the car today so when it comes in i'll get to progress further.
