polished fuel rail
03-22-05, 07:57 PM
#1
Motor/engine who gives a
Thread Starter
Join Date: Mar 2005
Location: seabrook nh
Posts: 449
Likes: 0
Received 0 Likes
on
0 Posts
polished fuel rail
after i got done doing the intake i set the fuel rail on and it wasn't happening with it looking like that so i polished it and it came out better than i thought it would
03-22-05, 08:59 PM
#5
Motor/engine who gives a
Thread Starter
Join Date: Mar 2005
Location: seabrook nh
Posts: 449
Likes: 0
Received 0 Likes
on
0 Posts
well heres the stuff i used to do the porting,polishing and painting assorted sanders with different grit 60 being the roughest and 1500 being the smoothest 1500 was mainly used for the fuel rail on the final sand ,assorted grinding bits,a dremel razor knife,assorted sandpaper and scuff pads,DuPont prepsol,RTV,heavy duty rubbing compound and for the finish mothers mag and aluminum polish ,Duplicolor engine primer and gloss black (USE PRIMER DON'T BE CHEAP)and holy **** i almost forgot the 20 rack of bud light bottles they were an important step to a winning finish any other questions just ask or PM me and yes sonic rat i have way too much time on my hands
03-22-05, 09:44 PM
#6
Senior Member
Join Date: Mar 2004
Location: Wichita KANSAS
Posts: 333
Likes: 0
Received 0 Likes
on
0 Posts
I love that ragged red sweat shirt your wearing. It shows what you cherish. Awsome do it yourself job on that engine. YOU CAN EAT OFF OF IT!! Also did you do the port with that electric drill and those assorted grinding bits?
Trending Topics
03-22-05, 10:13 PM
#8
Motor/engine who gives a
Thread Starter
Join Date: Mar 2005
Location: seabrook nh
Posts: 449
Likes: 0
Received 0 Likes
on
0 Posts
i love this shirt too what a collectors item lol (its still my favorite shirt). Yes i did use the electric drill for the heavy porting and then the dremel to smooth it out then by hand to get a perfect finish and about the TB i painted that thing like 2 years ago and its never stuck no i didn't take it apart i dont really care for playing with those springs they get my temper going like a bastard if you want to see how it was done and before and after pics then go to search and type in "gashes on the UIM" and that will come up and also "FINALLY FINISHED" it's pretty much a step by step of this job <THANKS, BRIAN>
03-23-05, 06:59 PM
#10
Motor/engine who gives a
Thread Starter
Join Date: Mar 2005
Location: seabrook nh
Posts: 449
Likes: 0
Received 0 Likes
on
0 Posts
it's polishing madness this is easy to make. Take a GXL centercap, cut the tabs off of it grind it smooth,grind the top of your oil cap flat and epoxy it on!!!!!! then dand the finish off the face of the cap with 150 then 320 then 1500 and polish it out with mothers DONE!!!! and it looks like a mirror!!!!!!!!!!
03-23-05, 07:05 PM
#11
The polish for the final coat will only last so long, less with the heat from the engine bay. A top quality clear coat will keep them parts shiney for a long time.
I've started a couple of polishing projects, but don't want to take the time that it really needs. That's why I started powdercoating my parts. Less time and the finish lasts soooo much longer. No going back and repolishing.
Great job btw.
When you get out here, bring some extra parts, I'll show you how much easier it is to powdercoat than polish.
Nice idea on the center caps, have a bunch of those laying around.
I've started a couple of polishing projects, but don't want to take the time that it really needs. That's why I started powdercoating my parts. Less time and the finish lasts soooo much longer. No going back and repolishing.
Great job btw.
When you get out here, bring some extra parts, I'll show you how much easier it is to powdercoat than polish.
Nice idea on the center caps, have a bunch of those laying around.
Last edited by trochoid; 03-23-05 at 07:07 PM.
03-23-05, 07:14 PM
#13
I'm finishing up the prep work for what I hope are the last loose parts for the 1st gen. Got a few pieces that still need coated.
Below is a couple things I've done.

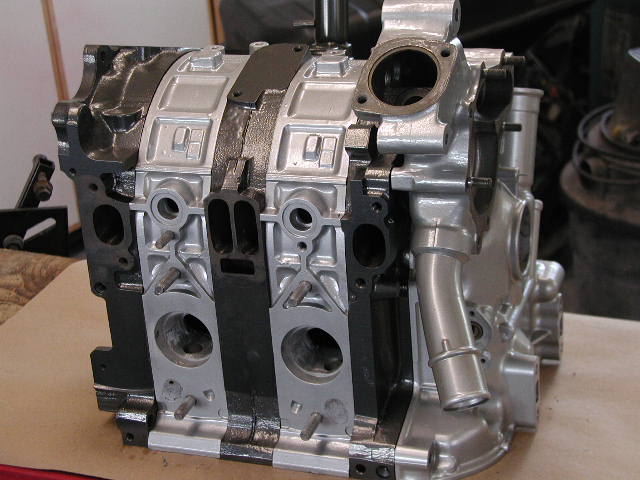

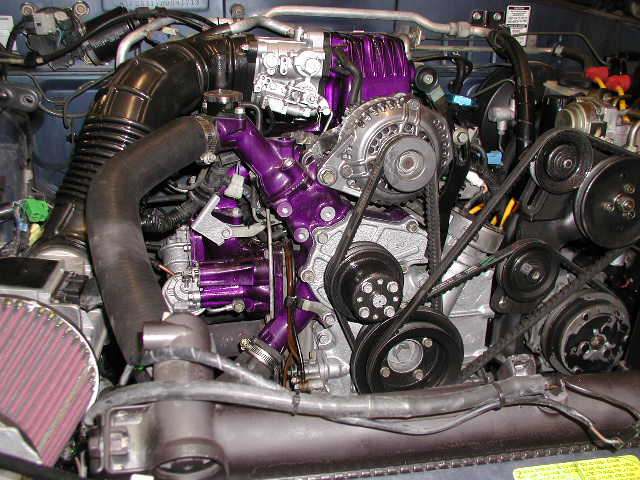

On the 2nd gen the alt and the purple are powdercoat, on the 12a, I did the entire engine.
If you want to see more about powdercoating, check out the 'got bling' thread in the 1st gen section.
Below is a couple things I've done.
On the 2nd gen the alt and the purple are powdercoat, on the 12a, I did the entire engine.
If you want to see more about powdercoating, check out the 'got bling' thread in the 1st gen section.
Last edited by trochoid; 03-23-05 at 07:17 PM.
03-23-05, 07:23 PM
#14
Motor/engine who gives a
Thread Starter
Join Date: Mar 2005
Location: seabrook nh
Posts: 449
Likes: 0
Received 0 Likes
on
0 Posts
is that the semichrome or close to chrome you used on your alternator?? they have a color thats supposed to be real close to chrome for powdercoating
03-23-05, 07:31 PM
#15
That's the anodized silver. I have a friend that wants to do the chrome when he redoes his TII, we'll see how that looks. I think the biggest problem we'll have is for it to look like real chrome, everything will need to be sanded down very smooth, i.e., all the sand casting bumps gone.
