Pilot Bearing and Seal Help!!!
#2
Registered Loser
iTrader: (6)
Join Date: Dec 2002
Location: Whiterock
Posts: 2,224
Likes: 0
Received 0 Likes
on
0 Posts
you pull the old bearing out of the engine. then you grease the hole. use the plastic tool that comes with the clutch kit (looks like the transmission shaft) to align and hammer it in.
#5
I knw wht u did last sumr
Join Date: May 2006
Location: AZ
Posts: 356
Likes: 0
Received 0 Likes
on
0 Posts
Interesting...
Here are a couple of links and pictures that should aid with your installation
https://www.rx7club.com/forum/showth...earing+removal
https://www.rx7club.com/showthread.p...bearing+instal
https://www.rx7club.com/forum/showthread.php?t=731518
http://www.rebuildingrotaryengines.c..._Pilot_Bearing
search and read up on installing the tranny... here are my two tips for you;
1)try to be as precise as you can when alligning the tranny to the engine as you'll want to gently glide the input shaft into place without damaging the bearing and seal (easier said than done!)
2)don't over grease the tranny input shaft! A light, light coat will do.
You don't want excess grease coming off the splines when going through the clutch disc.

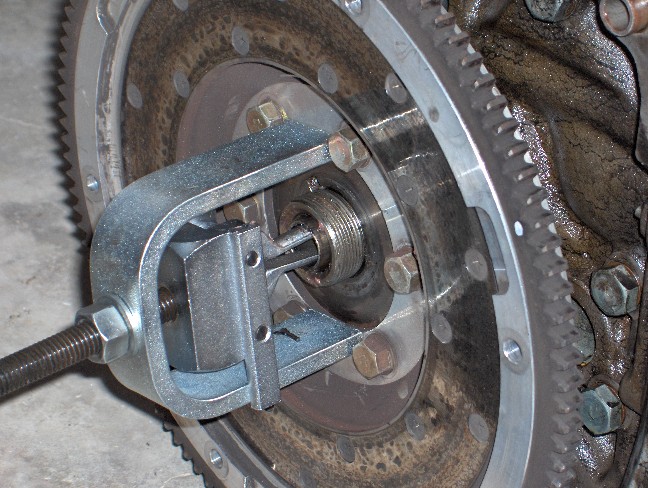

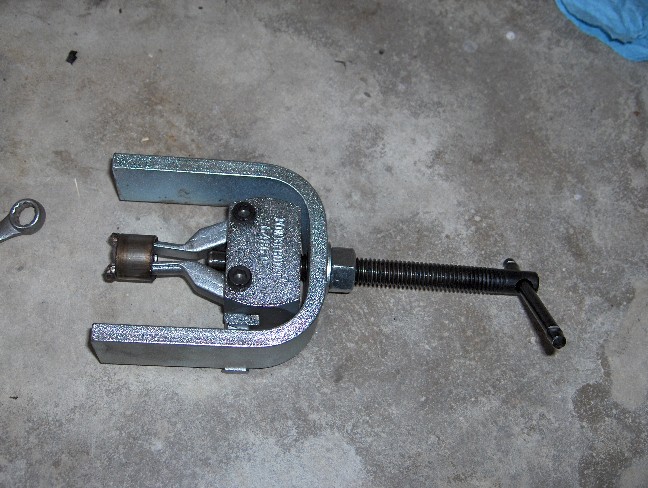

Here is the Pilot Bearing Removal Tool from PineAppleRacing. Makes it a 30 second job!
http://www.pineappleracing.com/index...PROD&ProdID=43
Here are a couple of links and pictures that should aid with your installation
https://www.rx7club.com/forum/showth...earing+removal
https://www.rx7club.com/showthread.p...bearing+instal
https://www.rx7club.com/forum/showthread.php?t=731518
http://www.rebuildingrotaryengines.c..._Pilot_Bearing
search and read up on installing the tranny... here are my two tips for you;
1)try to be as precise as you can when alligning the tranny to the engine as you'll want to gently glide the input shaft into place without damaging the bearing and seal (easier said than done!)
2)don't over grease the tranny input shaft! A light, light coat will do.
You don't want excess grease coming off the splines when going through the clutch disc.
Here is the Pilot Bearing Removal Tool from PineAppleRacing. Makes it a 30 second job!
http://www.pineappleracing.com/index...PROD&ProdID=43
