Pictures of KNOWN 13B-RE housings?

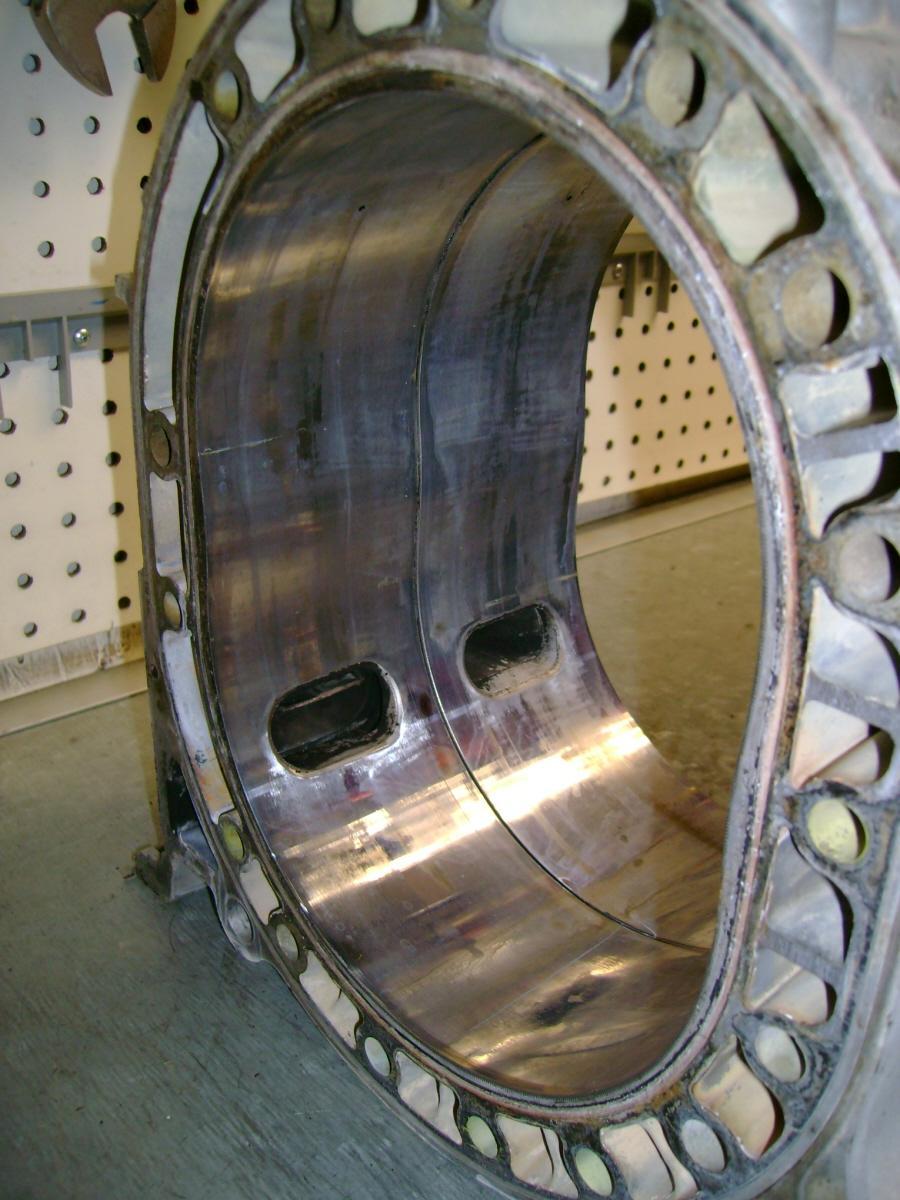

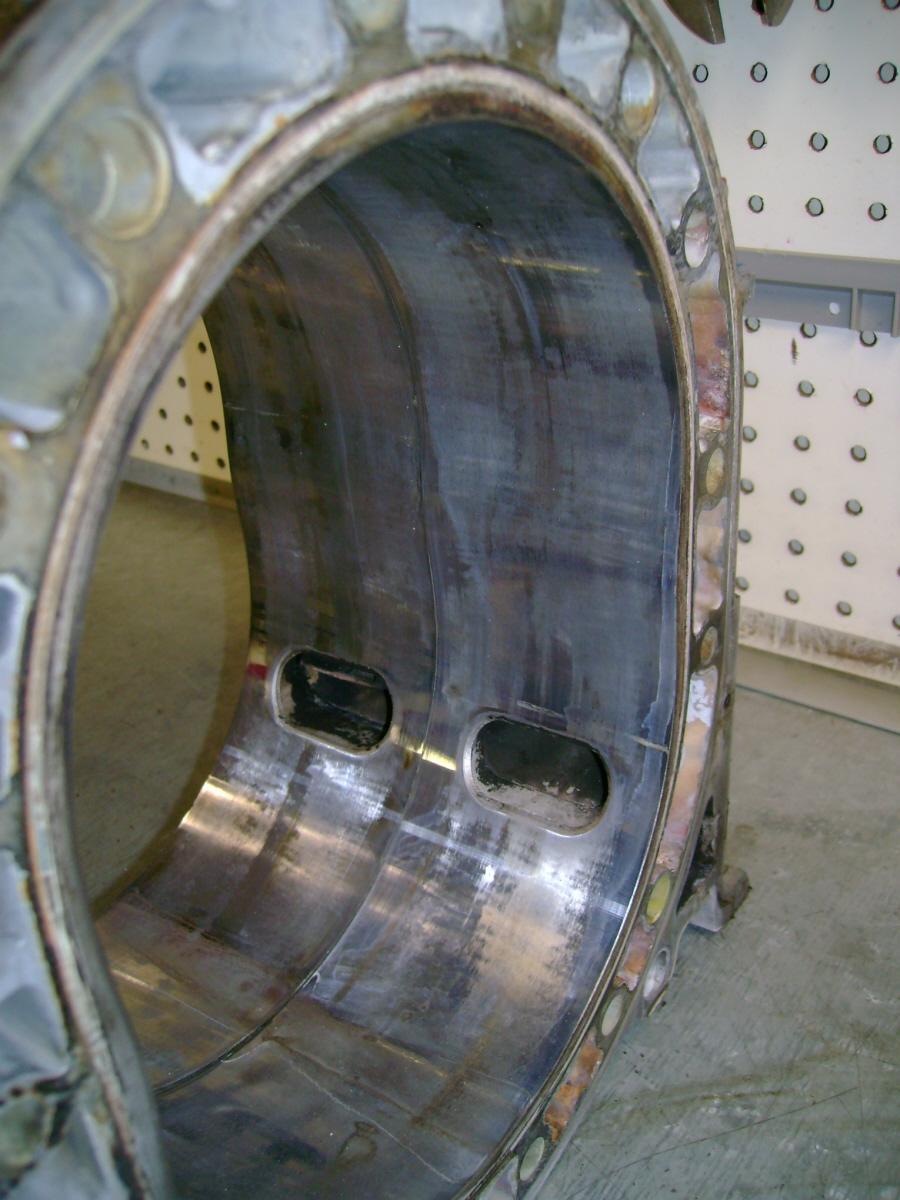

I'm looking at my RE housings withouth the sleeves in them and something seems amiss. I'm wondering if anyone has pictures of their RE housings as they come out of the motor. I am particularily interested in the area at the bottom of the port where the sleeve ends. Can anyone help out?
02-16-09, 11:41 PM
#3
Banned. I got OWNED!!!
Thread Starter
Join Date: Jun 2008
Location: usa
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts

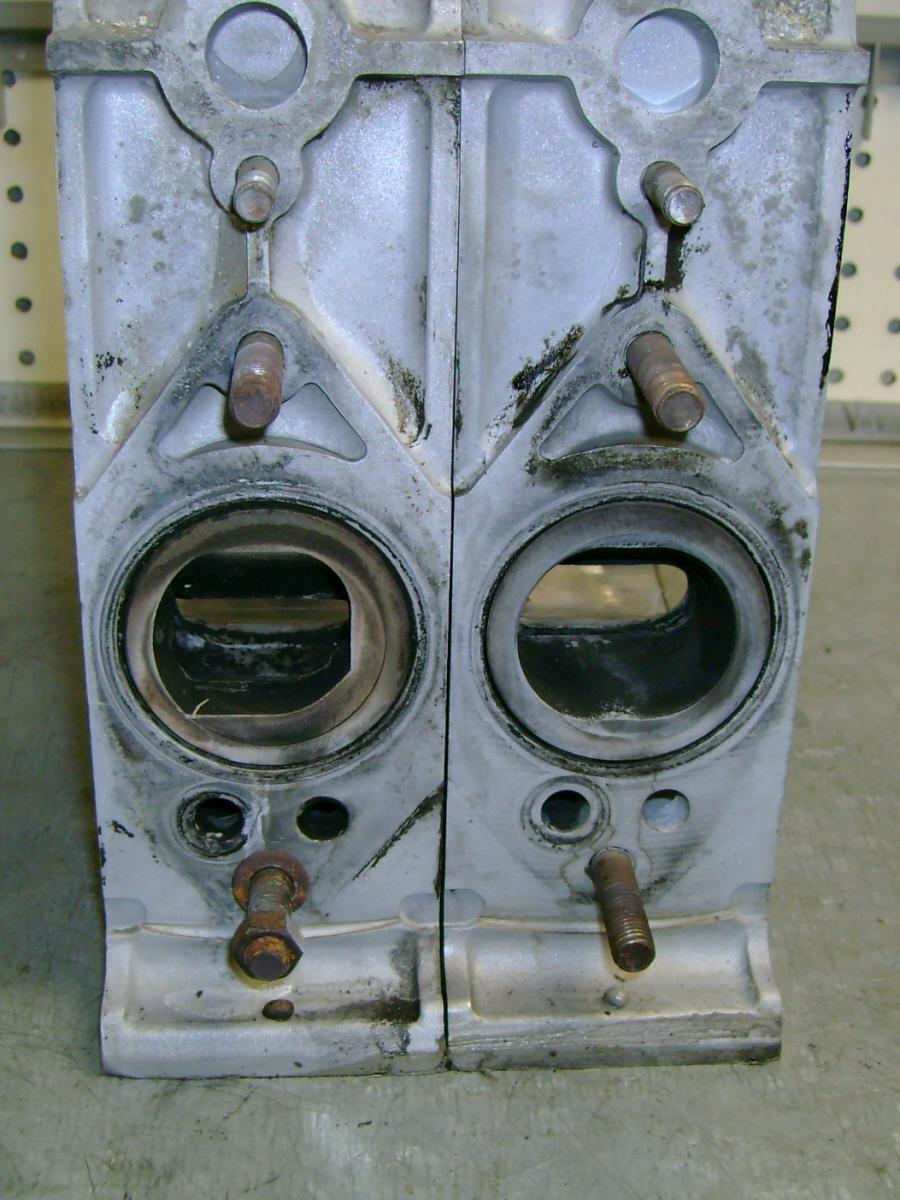

Sortof. I know that the RE sleeves are shorter and they purtrude farther down than the TII/REW sleeves.
I also know that an unported TII/REW housing has a port that lays horizontal for ~3/8" then takes a sharp 90* angle down to where the sleeve fits. I am trying to see if my known RE housings are ported. It really looks like they are but I need confirmation. Right now my RE ports from the combustion chamber taper down to where the RE sleeves meet. They meet nicely. I need to know if this is stock. I believe they've been ported.
I also know that an unported TII/REW housing has a port that lays horizontal for ~3/8" then takes a sharp 90* angle down to where the sleeve fits. I am trying to see if my known RE housings are ported. It really looks like they are but I need confirmation. Right now my RE ports from the combustion chamber taper down to where the RE sleeves meet. They meet nicely. I need to know if this is stock. I believe they've been ported.
