picture request... relatively stock T2 bay
#1
picture request... relatively stock T2 bay
would like to have some pictures of your relatively stock T2 bay...
want to see where the top oil lines goes to, some pictures of the LIM, how the coolant are routed, etc.
the bottom oilline goes back to front cover, correct?
want to see where the top oil lines goes to, some pictures of the LIM, how the coolant are routed, etc.
the bottom oilline goes back to front cover, correct?
Trending Topics
#8
Senior Member
Alan -

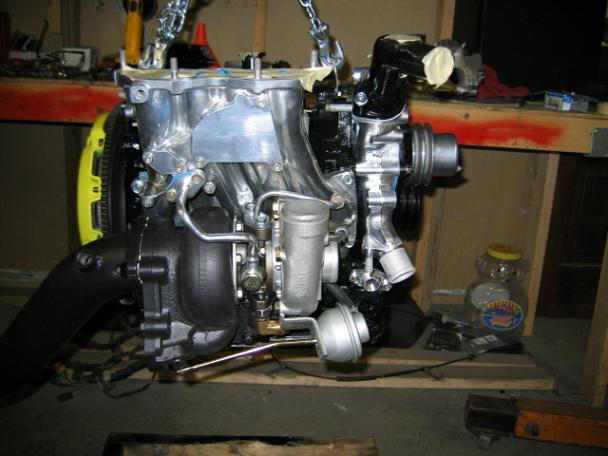

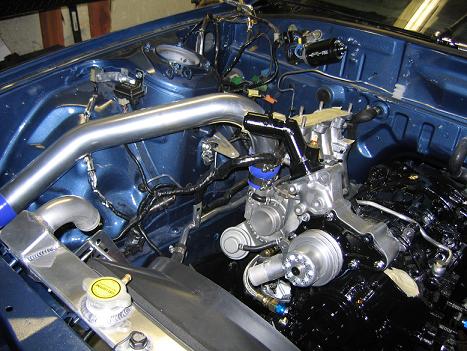

Here are two pics showing where that water line goes. On the first, look at the water pump housing that is laying on the workmate. On the second, you can see the fitting just above the top left corner of the oil pan. Let me know if that's not the line you have in mind.
Here are two pics showing where that water line goes. On the first, look at the water pump housing that is laying on the workmate. On the second, you can see the fitting just above the top left corner of the oil pan. Let me know if that's not the line you have in mind.
