picture request for engine block coolant drain
i'm taking off my turbo on my s5 t2 to port the wastegate and i thought since i got to drain most my coolant when i take off the turbo to just flush out the system i got the radiator flushed but i can't find the engine block drain plug i been told its by the drivers side engine mount but i cant find it so can someone take a pic of it so i know where it is to drain it
06-22-05, 10:14 PM
#3
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
Yep its very unmistakable, you really can't miss it with an explanation like that. Its like an inche and a half in length, long and narrow.
Originally Posted by Karack
look below your spark plugs at the engine mount where it bolts to the block, there is 3 nuts and one longer bolt, the longer bolt is the block drain plug.
06-23-05, 02:30 AM
#7
Senior Member
Join Date: Jan 2005
Location: Columbus, OH
Posts: 442
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RotaryResurrection
Using the above explanation, if you cannot find the plug, you have no business working in the rx-7's engine bay anyway, so put down your tools and step away.
LOL
Trending Topics
06-23-05, 02:33 AM
#8
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
What is an FSM?????
WHERE ARE MY HEADLIGHT SWITCH AT??
My engine is buring oil, is my headgasket leaking??
INquiring minds wnat to knooow.
/newb.
(PS no offense to you 91mazdarx7, I could see not knowing where the plug is...)
--Gary
WHERE ARE MY HEADLIGHT SWITCH AT??
My engine is buring oil, is my headgasket leaking??
INquiring minds wnat to knooow.
/newb.
(PS no offense to you 91mazdarx7, I could see not knowing where the plug is...)
--Gary
06-23-05, 03:00 AM
#10
(_8(|)
Join Date: Jul 2004
Location: Manhattan, Kansas
Posts: 2,034
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Bob_The_Normal
What is an FSM?????
WHERE ARE MY HEADLIGHT SWITCH AT??
My engine is buring oil, is my headgasket leaking??
INquiring minds wnat to knooow.
/newb.
(PS no offense to you 91mazdarx7, I could see not knowing where the plug is...)
--Gary
WHERE ARE MY HEADLIGHT SWITCH AT??
My engine is buring oil, is my headgasket leaking??
INquiring minds wnat to knooow.
/newb.
(PS no offense to you 91mazdarx7, I could see not knowing where the plug is...)
--Gary
The fsm is the factory service manual
say in english....newb
rotaries dont have head gaskets.
(sorry i had to have a little fun)
06-23-05, 03:18 AM
#11
Originally Posted by dDuB
Of course not, do you think anyone looks at the FSM anymore? Hmph...
... crap. That's what I should have done before I graduated. Used my print quota to print off the S4, S5, and S6 FSMs. :-/
-=Russ=-
06-23-05, 09:58 AM
#12
Senior Member

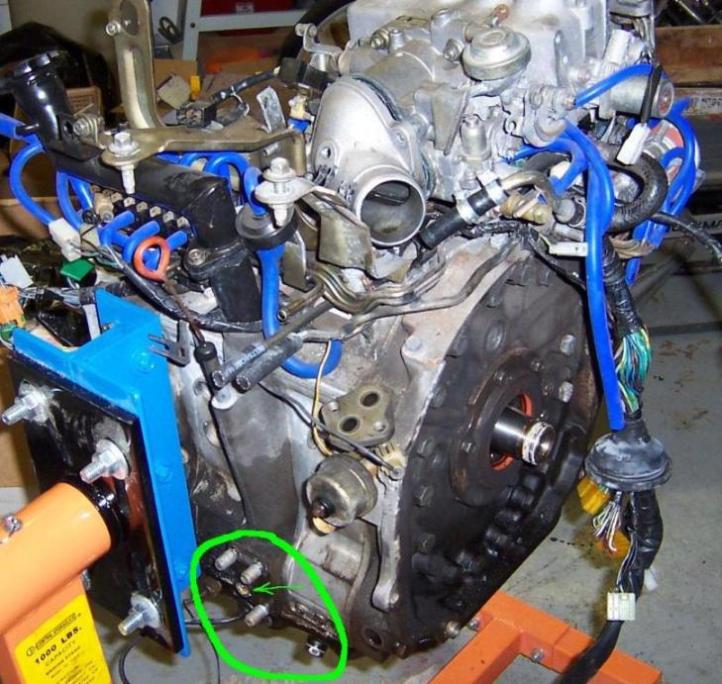

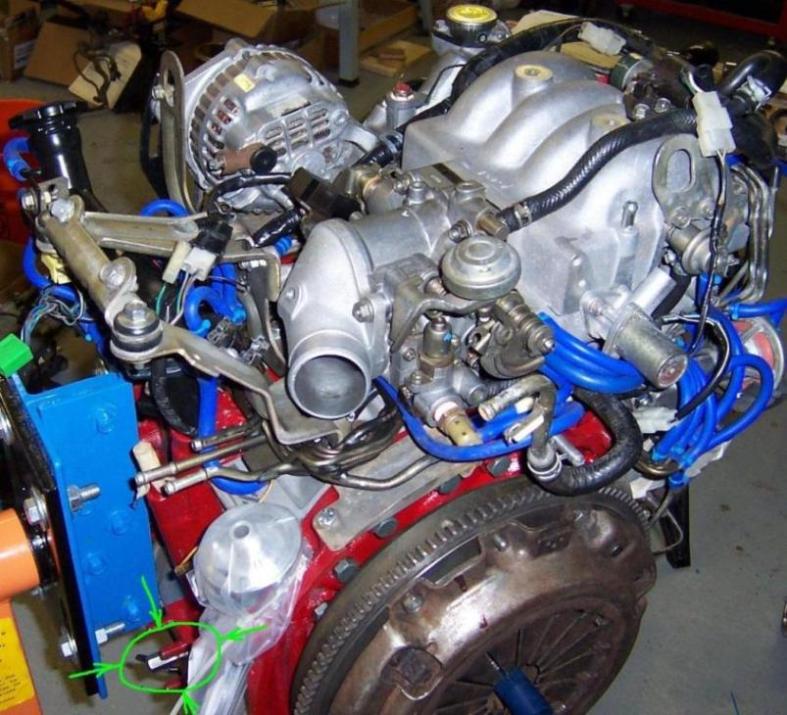

I have a picture, but it's hard to see once I get the file small enough to post. The view is from the top, left, rear side of the motor. The drain is the silver fitting near the bottom of the picture. When the motor is installed, the motor mount hides it somewhat, but you should be able to see it without too much trouble.
