Ive never seen the back of a tII intercooler, im curious how the pipe looks that goes into the TB, can anyone get some decent pics of the back side of one

thanks

-greg



nothing fancy.
it's just an outlet a few inches long that goes straight down off the back corner opposite the inlet corner. it connects to a rubber elbow that turns back under the intercooler.

I'm sure somebody will show you, and if they don't I will later this afternoon, after I get done sleeping.

oddly enough, I just had mine off yesterday coulda taken a quick pic if I had known somebody cared.



the reason i want to see it, is i am going to be turbocharging my first gen GSL-SE and im getting a tII intercooler for hella cheap, and i want to make it work as a top mount and build a hood scoop for it, i just need pics of the back side to see if i can make it work

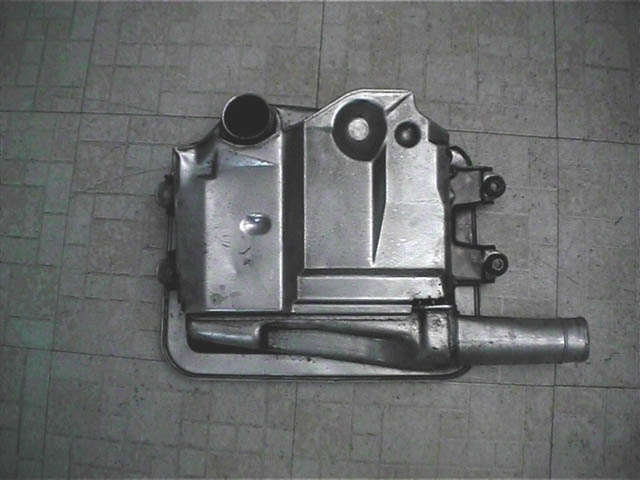

S5 intercooler



the s4 tII intercooler looks pretty similar, btw.
