Pic Request: Fuel Line on PD
#1
Pic Request: Fuel Line on PD
So a friends on his way to get me so we can go to his house and get a part off of his spare motor. I recently replaced the pulsation damper with a banjo bolt, and I guess I moved the fuel line that the bolt goes through around too much, because it's started leaking. If you wouldn't mind, I'd like a pic of that fuel line and where it exactly goes. I've tried searching for the past 15 mins and can't find much. All picture will be greatly appreciated.
Thanks alot guys

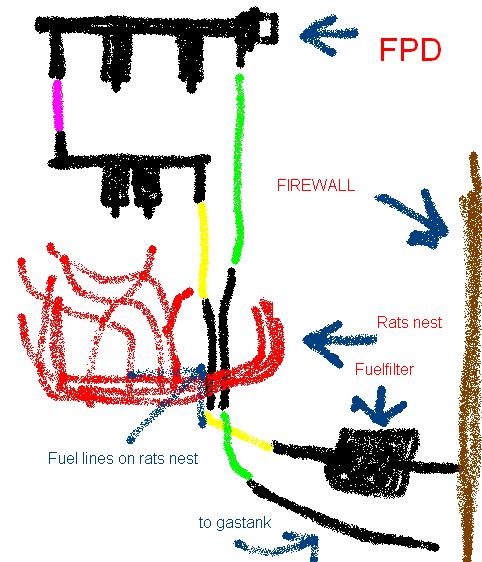

and here's a paint pic so everythings clear...
Thanks Guys
Thanks alot guys
and here's a paint pic so everythings clear...
Thanks Guys
#2
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
FPD is the last thing fuel is supposed to hit before going back to the tank.
See it this way. The FPD will not open under....70PSI? When its opened the excess fuel goes back to the tank. So FPD is an outlet, not an inlet.
See it this way. The FPD will not open under....70PSI? When its opened the excess fuel goes back to the tank. So FPD is an outlet, not an inlet.
Last edited by Spectator; 11-23-07 at 12:31 PM.
#4
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Each line goes threw the rats nest before connection to the filter or the metal return fuel line.
Does that help you?
I cant provide a pic...
Position your rats nest where its supposed to go and figure it out. Its really easy.
Does that help you?
I cant provide a pic...
Position your rats nest where its supposed to go and figure it out. Its really easy.
#5

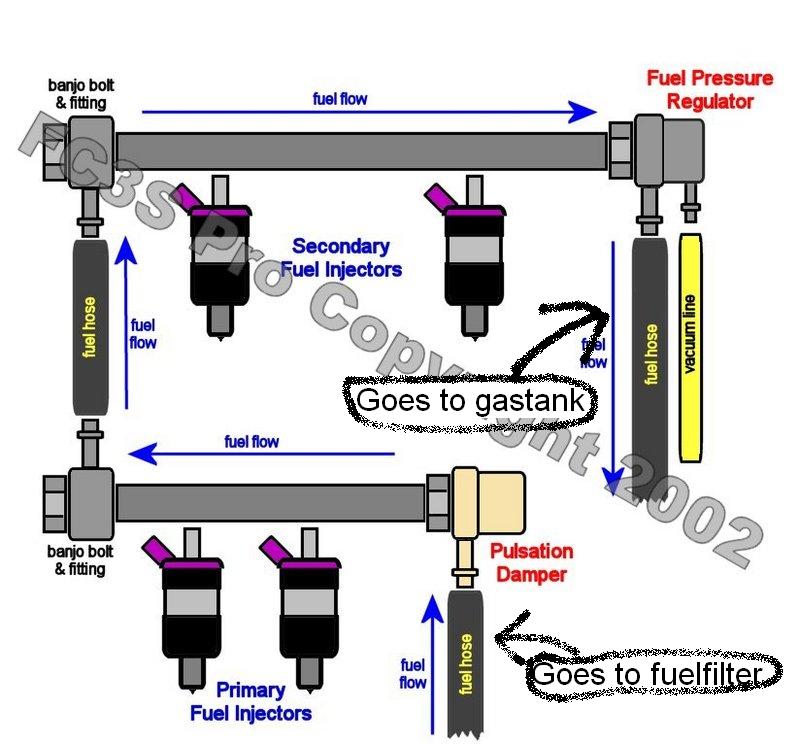

*And FC3S Pro made that second pic*
#7
Senior Member
iTrader: (1)
Join Date: Oct 2007
Location: Nova Scotia, Canada
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts
Trace the soft fuel lines from the drivers side of the engine down toward the firewall and the one that stops for the filter right around the frame rail is the instream and needs to go to the FPD on the primary fuel rail.
Trending Topics
#10
(blank)
iTrader: (1)
That paint drawing is ART! Even the rounded fuel line profile. Anyways, back to business.
Fuel goes...tank, low press filter at pump, pump, lines to the front, fuel filter, passes by Fuel pulsation damper, primary injectors, rubber line, secondary injectors, then past fuel pressure regulator, back to rats nest and back to tank.
Fuel goes...tank, low press filter at pump, pump, lines to the front, fuel filter, passes by Fuel pulsation damper, primary injectors, rubber line, secondary injectors, then past fuel pressure regulator, back to rats nest and back to tank.
#11
rx-for-my-7
iTrader: (1)
More like 2nd grade. most 3rd graders are leaning to include persective and dimensions into their art. In fact, I saved that pic to bring into work to show the little retarded kids that they aren't as bad off as they think. I'll show it to them and say, "See some adults can't draw nearly as well as you can." and they'll feel really good about themselves. Thanks!! all in jest.
#14
wordd
I've already taken the dynamic chamber off and replaced the line, put everything back together, deflooded it and gotten it running, but just to babble...
I guess I moved that line too much when I replaced the PD,
causing it to leak. I broke 2 more vaccum lines, and 3 were broken on the first removal. So about all of those are good now. And when I was trying to start it, it was hardcore flooded. So I had to pull the plugs and all. Anyways, thanks for the help guys. I now reccomend replacing that hose if your ever down into the rats nest, because if it starts leaking it leaks worse than the pd. Okay, well... thanks again.
I've already taken the dynamic chamber off and replaced the line, put everything back together, deflooded it and gotten it running, but just to babble...
I guess I moved that line too much when I replaced the PD,
causing it to leak. I broke 2 more vaccum lines, and 3 were broken on the first removal. So about all of those are good now. And when I was trying to start it, it was hardcore flooded. So I had to pull the plugs and all. Anyways, thanks for the help guys. I now reccomend replacing that hose if your ever down into the rats nest, because if it starts leaking it leaks worse than the pd. Okay, well... thanks again.
