Part Question.... pic
S4 N/A 5 Speed 145xxx
What is this and how do I fix it? dunno: I know that its not suppose to be burned on the wire.
[IMG]<a href="http://s146.photobucket.com/albums/r261/Lurker_02/?action=view¤t=IMG_6134.jpg" target="_blank"><img src="http://i146.photobucket.com/albums/r261/Lurker_02/IMG_6134.jpg" border="0" alt="?????"></a>[/IMG]
What is this and how do I fix it? dunno: I know that its not suppose to be burned on the wire.
[IMG]<a href="http://s146.photobucket.com/albums/r261/Lurker_02/?action=view¤t=IMG_6134.jpg" target="_blank"><img src="http://i146.photobucket.com/albums/r261/Lurker_02/IMG_6134.jpg" border="0" alt="?????"></a>[/IMG]
08-15-09, 01:12 AM
#2
808gxl
Join Date: Jun 2009
Location: Big Island, Hawaii
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
port air solenoid valve w/missing connector, if im not mistaken it opens the valve that pumps fresh air into the exhaust? port air = exhaust port air. fixed by emissions removal procedure! or find a parts car and change it out... that one looks no bueno
Last edited by Rextasee; 08-15-09 at 01:15 AM.
08-15-09, 02:04 AM
#3

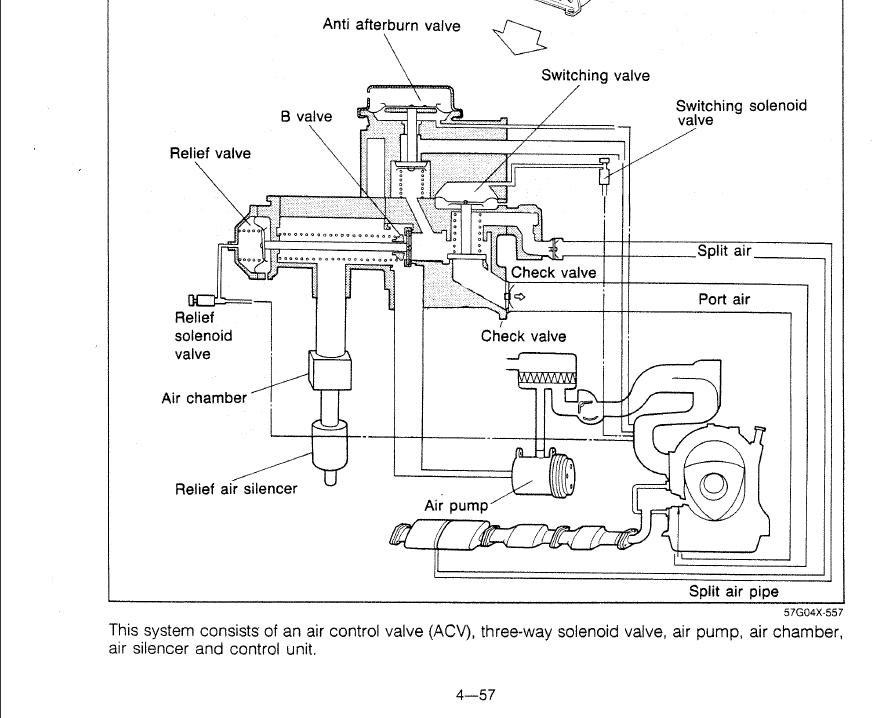

You can replace the solenoid with another one. It's the same thing as what's used on the split air solenoid (pictured next to it w/ wire intact). The plunger underneath is different from the split air solenoid, but you can reuse it. The port air solenoid is actually pretty useless anyway, as the majority of port air is controlled by the relief and switching valves (and solenoids). It's so unimportant, Mazda didn't even put it in this diagram from the training manual:
08-16-09, 07:49 AM
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

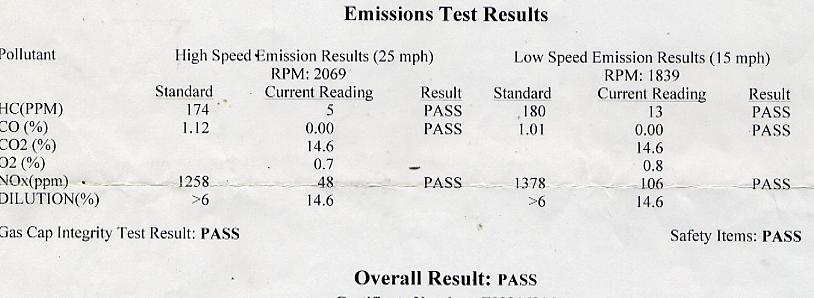

I can pass emissions without either solenoid on the ACV functioning. LIke the man said, very little effect has the Port Air solenoid on passing emissions.
Passing emmissons is mostly a function of the Relief and Switching solenoids working with a properly functional ACV and half **** good converter.
Notive the lack of a EGR valve has zip effect on the NOX figures.
Passing emmissons is mostly a function of the Relief and Switching solenoids working with a properly functional ACV and half **** good converter.
Notive the lack of a EGR valve has zip effect on the NOX figures.
