p/s rack

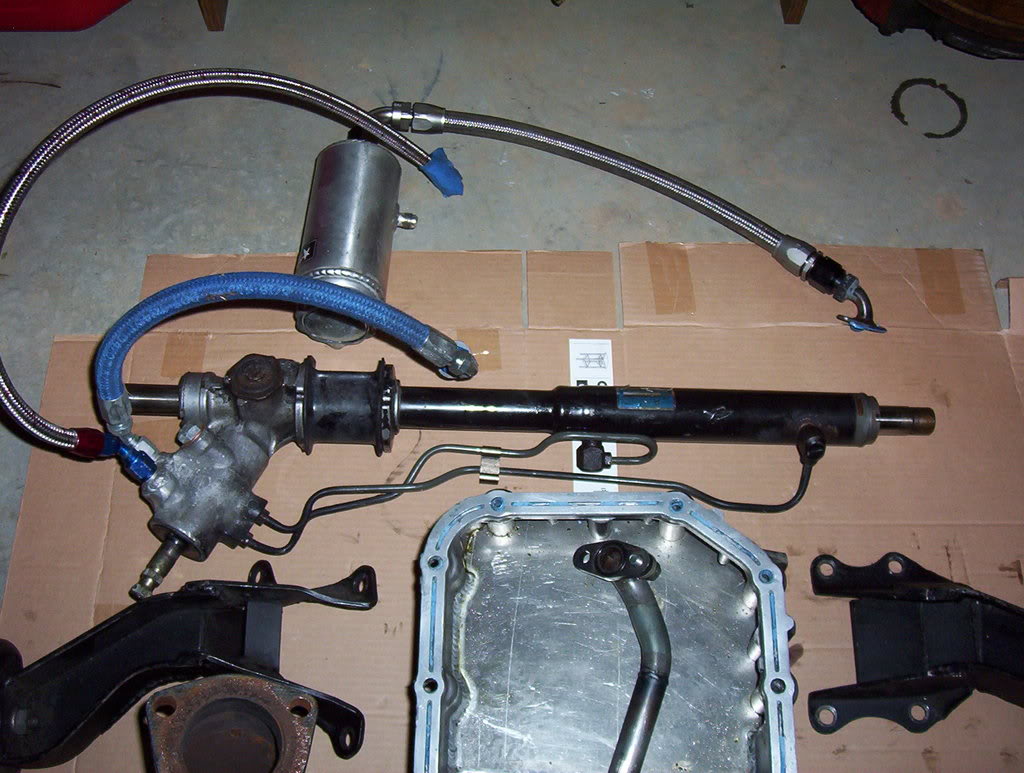

ok so iv been searching for like the last week to find an answer but havent found what im looking for i have a 87 fc with 2jz and iv been trying to hook up power steering i have it hooked up like this (see pic) top port return middle port high pressure and bottom one pluged the car seems to steer just fine sitting still or barely moving but it seems the faster i got the steering gets stiffer /harder a few people say its the rack because its speed sensative some people say its the pump can anyone give me more of a stright answer
02-12-12, 06:44 PM
#2
Full Member
Im not sure on this one but i might as well try to help since nobody has yet. maybe you have the lines backwards? I have a working ps pump you can have if you paid for the shipping. its missing some stuff but it worked fine in my car. if anything it should free up when driving you should clean and replace the fluid in the pump and make sure you dont have any leaks. a leak ive noticed on power steering can cause the steering to break (stiffen up) during driving like when your turning. check for leaks and listen for any noises coming from the pump that shouldnt be. like a louder whining sound, or juttering sound like the ps pump is getting dry hump attacked. kinda like whoomp whoomp whoomp low repetitive sound. good luck
02-12-12, 06:50 PM
#3
Full Member
also there is a bolt on the steering rack that holds in a spring if you loosen it, it loosens your steering. you may need to loosen it. it would be on the bottom of the steering if it were installed in your car you could just jack up the front and get underneath look up and see it. dont loosen too much. you might want to loosen some bolts and tighten them back down to recomended torque. trying to think of what else...
02-13-12, 01:54 AM
#5
Chances are you have either a bad pump, or a bad rack, or both.
Also, depending on which series FC you have, the power steering is either 'adjusted'for either vehicle speed or engine rpm. I can't remember which is which right now, Ive always pulled the power racks and tossed em in favor of manual racks. The man. rack tends to be 'hard' when stopped, but seems just fine at speed.
Also, depending on which series FC you have, the power steering is either 'adjusted'for either vehicle speed or engine rpm. I can't remember which is which right now, Ive always pulled the power racks and tossed em in favor of manual racks. The man. rack tends to be 'hard' when stopped, but seems just fine at speed.
02-13-12, 03:17 PM
#6
Full Member
You can also depower the power steering rack and make it a manual rack. it will be a bit harde rto turn then a manual not too much i did the depower mod on my powersteering it was about the same. when depowering if you dont have a welder to weld the quill it will have a little play but not too bad i didnt have a welder so i went without welding the quill worked fine. it has a tighter turning radius compared to the manual i think haha im not exactly sure on that one cuz ive only had the manual rack in for about two weeks and im still figuring it out. seemed like the depowered one had a tighter radius, im not used to the manual yet.
Trending Topics
02-13-12, 04:51 PM
#8
Ah I see.
Curiously, what are you using for a power steering pump?
If you are using the original FC pump, there is a chance that the pully attached to the crank of your 2JZ may not be spinning the pump fast enough to keep up with your steering demands.
Curiously, what are you using for a power steering pump?
If you are using the original FC pump, there is a chance that the pully attached to the crank of your 2JZ may not be spinning the pump fast enough to keep up with your steering demands.
02-13-12, 05:59 PM
#10
Full Member
no leaks? sounds like the pump IS toast. remember i have the pump and it worked fine for me just gotta pay shipping haha Im in Boise Idaho. I could try to see if i could get it shipped for free from my work. gotta trick someone somehow haha
Last edited by manbeast; 02-13-12 at 06:01 PM.
02-14-12, 07:47 PM
#12
Full Member
It'll probably cost between 20 and 30 bucks to ship. I will look for any jz symbols on the pump tonight. my car is an 86 na gxl it was apparently the better of the base model of na's back then.
02-14-12, 11:36 PM
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
the FC has two power steering systems.
the first is the 86-88 and the upper model 89-91 system. this is the first system of its kind and it uses the 3 port rack, and a pump with a stepper motor on it to vary the steering assist by vehicle speed. the rack should say something like FB17, FB55 or so on it.
the second system is the 89+ base system, and its just a normal PS system, the toyota pump would probably work fine. the rack has an FC01 sticker on it
the neat thing about the FC is that every car has the wiring for the PS system, so you could run either one, except that the speed sensitive needs to use the FC's pump, and computer.
the first is the 86-88 and the upper model 89-91 system. this is the first system of its kind and it uses the 3 port rack, and a pump with a stepper motor on it to vary the steering assist by vehicle speed. the rack should say something like FB17, FB55 or so on it.
the second system is the 89+ base system, and its just a normal PS system, the toyota pump would probably work fine. the rack has an FC01 sticker on it
the neat thing about the FC is that every car has the wiring for the PS system, so you could run either one, except that the speed sensitive needs to use the FC's pump, and computer.
02-16-12, 01:04 AM
#17
Full Member
Thread Starter
iTrader: (1)
Join Date: Oct 2007
Location: washington
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
ok thank you manbeast im pretty sure now that its my pump sitting at idle my pump will wine like no other and it will make it a little more manageable to steer but then the pump will go quite and it makes it hard to steer but this is all at idle
