The official TID thread!!!
Ok I'm in the process of making a new TID to clear my FMIC piping, and to get it behind the headlight in a cold airbox... What have you guys done in the way of custom TID's for your cars??? This particularly applies for guys running the stock AFM in conjunction with aftermarket intercooler setups ie; FMIC, SMIC, VMIC, HMIC, etc, but anyone is welcome to post their unique ideas and experiences...
Let's see what you guys have done! Maybe if there's enough good ideas and photos, this could be archived for would-be DIY TID builders!
Let's see what you guys have done! Maybe if there's enough good ideas and photos, this could be archived for would-be DIY TID builders!
03-10-06, 05:04 PM
#2
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/cleaned-up-engine-bay-bit-pictures-357664/

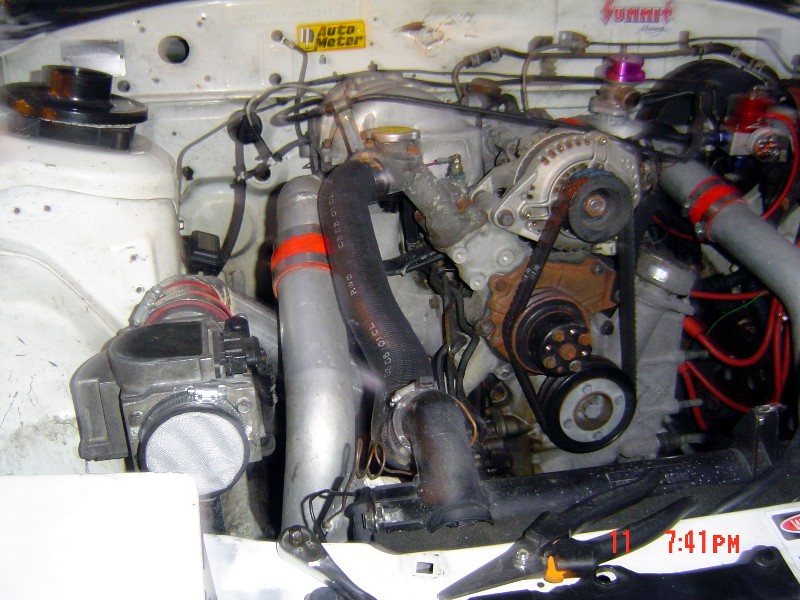

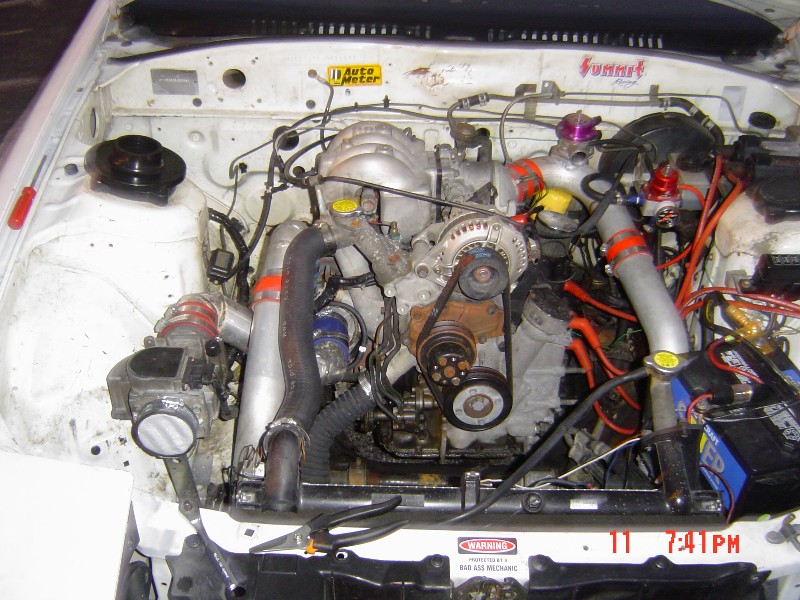

heres mine...... 92-95 civic intake, cut to fit.....
heres mine...... 92-95 civic intake, cut to fit.....
03-10-06, 05:38 PM
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Custom 3" SS with the S4 AFM sitting the right way up and nearly level. Yes it can be done...
https://www.rx7club.com/showthread.p...27#post4702327
https://www.rx7club.com/showthread.p...27#post4702327
