odd dtss idea
Thread Starter
Full Member
Joined: Mar 2001
Posts: 145
Likes: 2
From: Irvine, California
odd dtss idea
i was looking at the DTSS bushing placement today on my rear hubs, and was wondering why couldnt u just stick a metal shim in between the hub and the control arm to stop the rear from steering hence not having to take the hole damn thing apart?
Why what? Why kill the DTSS? because when you're on the edge between having the rear end and losing the rear end, unxepected changes in rear grip do interesting things... It's a good system until you exceed its capabilities, and then it gets in your way.
Former Moderator. RIP Icemark.
Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Only if you don't have sufficent experience with it.
Once you understand when and where it kicks in, you will be able to take your car past limits that a non-DTSS equipped FC can go.
I think our own Ted (ReTed), proved that the DTSS equipped car will consistently high speed out corner a DTSS removed FC.
Once you understand when and where it kicks in, you will be able to take your car past limits that a non-DTSS equipped FC can go.
I think our own Ted (ReTed), proved that the DTSS equipped car will consistently high speed out corner a DTSS removed FC.
After reading some other posts by ReTed, it seems to go like this...
DTSS = Better overall handling, with a limit on how far you can go, hard to predict w/o experience.
Rear-toe Eliminators = More predictable, extends the limits of how 'far you can feel comfortable going', however, the speed you can take turns is lower in comparison to a functional DTSS .
DTSS = Better overall handling, with a limit on how far you can go, hard to predict w/o experience.
Rear-toe Eliminators = More predictable, extends the limits of how 'far you can feel comfortable going', however, the speed you can take turns is lower in comparison to a functional DTSS .
Trending Topics
White Comet
Joined: Jan 2002
Posts: 2,145
Likes: 0
From: Orange County
Originally posted by Liquid Anarchy
After reading some other posts by ReTed, it seems to go like this...
DTSS = Better overall handling, with a limit on how far you can go, hard to predict w/o experience.
Rear-toe Eliminators = More predictable, extends the limits of how 'far you can feel comfortable going', however, the speed you can take turns is lower in comparison to a functional DTSS .
After reading some other posts by ReTed, it seems to go like this...
DTSS = Better overall handling, with a limit on how far you can go, hard to predict w/o experience.
Rear-toe Eliminators = More predictable, extends the limits of how 'far you can feel comfortable going', however, the speed you can take turns is lower in comparison to a functional DTSS .
I believe this is why the DTSS elim. bushings feel more "predicatable" because you dont have to worry about the DTSS going nuts.
Also, when the rear is loose without the DTSS, it was much easier for me to catch.
Keep Right Except to Pass
Joined: Jan 2003
Posts: 984
Likes: 1
From: Seattle
A quote from this site.
I would love to read some more of what people thought of it at the time, if I could only find it. Yahoo is letting me down.
The live axle of the first generation, one of the RX-7's inheritances from the RX-3, was abandoned in favor of fully independent rear suspension, using semi-trailing arms with DTSS (Dynamic Tracking Suspension System) featured a " Tri-axial Floating Hub " and an extra link to overcome the oversteer-inducilng toe-out during cornering, which was typical of simple semi-trailing arm suspension, and control the camber changes inherent in that suspension system. With DTSS, natural toe-out predominated below 0.4 g cornering force. This, in fact, helped in steering the car around turns. During harder cornering, however, the suspension load, the geometry of the links, and the calibrated bushing compliance combined to counteract the toe-out and generated net toe-in Toe-in was also created during braking, which aided stability. It was, in effect, passive 4WS. Though generally praised, DTSS was not without critics. Indy car engineer lan Reed, writing for AutoWeek, called it "an attempt to correct a basic design flaw"; ie., the semi-trailing arm setup itself.
Thread Starter
Full Member
Joined: Mar 2001
Posts: 145
Likes: 2
From: Irvine, California
the whole premise behind my idea is just shoving a piece of metal between the hub and the DTSS part of the suspension arm basically making DTSS not work, and not having to do the 20 million hour installation of pressing in all new bushings
BattleSwing (alex from BattleVersion) said "DTSS eliminator bushings?! Its easier to shove a piece of metal in there and get rid of the DTSS for ever."
This guy knows his stuff about suspension since he's a top drifter around these parts. If you have some cash and a press available, get the RB ones. Either way will work fine.
This guy knows his stuff about suspension since he's a top drifter around these parts. If you have some cash and a press available, get the RB ones. Either way will work fine.
Lives on the Forum
Joined: Feb 2001
Posts: 26,664
Likes: 22
From: n
Actually, my claims were that the DTSS does an admirable job, if you can work with it.  The system was designed for normal drivers who can't control a wildly oversteering car driving through abrupt transitions under heavy cornering loads.
Eliminating the DTSS is a viable option for those looking for performance driving.  The mod would definitely stablize the rear end and allow better communication on what's happening in the rear.  When you first do this mod, the car's rear end feels slow to react, but it's a lot more controlable at the limit.
Alex of Battle Version would've give a damn if it had DTSS or not - he's still drift it. *grin*
-Ted
Eliminating the DTSS is a viable option for those looking for performance driving.  The mod would definitely stablize the rear end and allow better communication on what's happening in the rear.  When you first do this mod, the car's rear end feels slow to react, but it's a lot more controlable at the limit.
Alex of Battle Version would've give a damn if it had DTSS or not - he's still drift it. *grin*
-Ted
Senior Member
Joined: Nov 2001
Posts: 318
Likes: 0
From: coneland
HEHE so will the 360 master Ho. Hey Ted I got 360s down and that shi$)#(&( is fun. hehe. Hey I drove an 88 NA at the event and it has the RB bushing but it did not feel bad, still has that spin out easy tendency but really not that bad. Looking to sell the FD ( which you will like. ) and get a Q45 and go VIP. ( which will make you jump back and say " what the master is going pimp style! ) What you think of Q 45?
Former Moderator. RIP Icemark.
Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally posted by S13 Slide

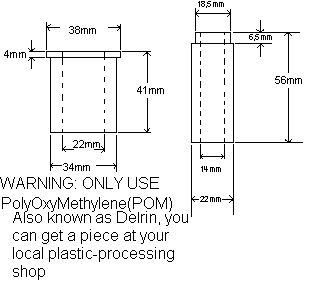

does any compantys make solid metal replacement instead of another bushing?
does any compantys make solid metal replacement instead of another bushing?
Senior Member
Joined: Apr 2002
Posts: 317
Likes: 0
From: Washington
Originally posted by Icemark
It would shatter or bend. There is not enough absorption with metal as the bushing.
It would shatter or bend. There is not enough absorption with metal as the bushing.
Senior Member
Joined: Apr 2002
Posts: 317
Likes: 0
From: Washington
Originally posted by Icemark
It would shatter or bend. There is not enough absorption with metal as the bushing.
It would shatter or bend. There is not enough absorption with metal as the bushing.
