O2 Wire into CPU?
#1
O2 Wire into CPU?
What color is this wire on an 87 TII?
The Hayes manual says its Gy, which is green w/ yellow stripe. But I hooked up my AFG to that wire and now the gauge goes crazy when I turn on the Left Blinker! It looks cool, but doesnt help me with my AF Mixture much.
I realize that many if you arent keen on the AFG but I'd appreciate helpful replies ONLY. I already have the gauge and just want it to work properly.
Thanks
The Hayes manual says its Gy, which is green w/ yellow stripe. But I hooked up my AFG to that wire and now the gauge goes crazy when I turn on the Left Blinker! It looks cool, but doesnt help me with my AF Mixture much.
I realize that many if you arent keen on the AFG but I'd appreciate helpful replies ONLY. I already have the gauge and just want it to work properly.
Thanks
#6
Originally Posted by The Wankler
On mine it is a green wire. Where did you hook it up. By the CPU, or the bac valve?
By the CPU, next to the fuse box.
Is that where you hooked it up?
A green wire huh? How did you know that was the right wire? The manual said green with yellow stripe.
Trending Topics
#9
Originally Posted by My5ABaby
GY = O2 sensor
G = intake air temperature sensor (dynamic chamber)
G = intake air temperature sensor (dynamic chamber)
See, I hooked it up to Gy, and it doesnt work, its some how reading my Left Blinker signal.
Originally Posted by f1blueRx7
I was feeling generous cause I'm home sick with the flu....
I will try finding 2D directly instead of a wire color. Thanks, hope you feel better!
#17
Originally Posted by edmcguirk
Don't you want the ECU in the passenger footwell and not the CPU by the fuse block?
The CPU does turn signals and the ECU does fuel control.
The CPU does turn signals and the ECU does fuel control.
Maybe thats where my problem lies...
#19
Originally Posted by The Wankler
I just spliced into the wire coming off of the O2 sensor in the engine bay.
I suppose that would be the most direct route!! HA
I was already tearin into the fuse box to add a slot for the gauge lights. (I hooked up 3 new gauges.) So that's why I tried to find the wire inside the car.
Plus it keeps the engine bay a little neater. If all else fails I may go for the wire off the o2 sensor, but I'd really like to get it done inside.
Thanks
#20
Rotary Freak
iTrader: (1)
Originally Posted by stylEmon
By the CPU, next to the fuse box.
Is that where you hooked it up?
A green wire huh? How did you know that was the right wire? The manual said green with yellow stripe.
Is that where you hooked it up?
A green wire huh? How did you know that was the right wire? The manual said green with yellow stripe.
Your at the wrong side of the car there homie. You need to be over on the passenger side at the ECU. Take the door sill out and pull the carpet back. Then take the metal cover off and you will see the ECU. It should work fine after that.
#21
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by stylEmon
What color is this wire on an 87 TII?
The Hayes manual says its Gy, which is green w/ yellow stripe. But I hooked up my AFG to that wire and now the gauge goes crazy when I turn on the Left Blinker! It looks cool, but doesnt help me with my AF Mixture much.
I realize that many if you arent keen on the AFG but I'd appreciate helpful replies ONLY. I already have the gauge and just want it to work properly.
Thanks
The Hayes manual says its Gy, which is green w/ yellow stripe. But I hooked up my AFG to that wire and now the gauge goes crazy when I turn on the Left Blinker! It looks cool, but doesnt help me with my AF Mixture much.
I realize that many if you arent keen on the AFG but I'd appreciate helpful replies ONLY. I already have the gauge and just want it to work properly.
Thanks

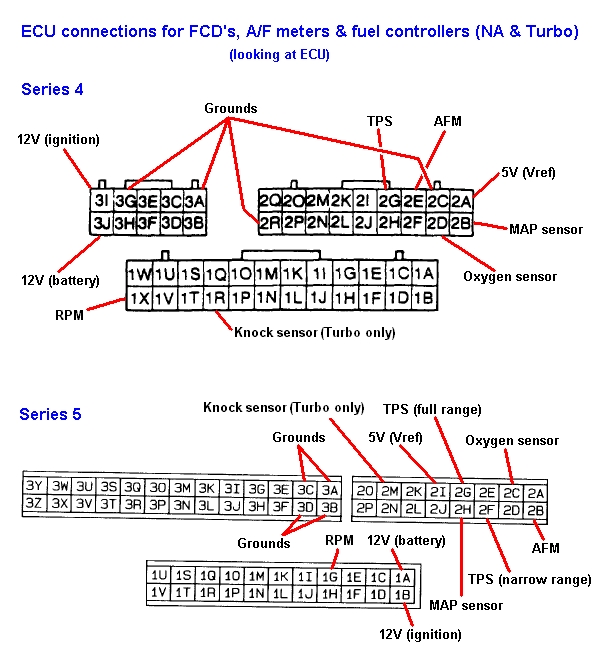

I've attached an image showing the common pins on the ECU. This image is not mine, it's been posted to the forum before.
#22
Originally Posted by Smoken'
Your at the wrong side of the car there homie. You need to be over on the passenger side at the ECU. Take the door sill out and pull the carpet back. Then take the metal cover off and you will see the ECU. It should work fine after that.
Thanks for all the helps peeps!
Kind of a N00B mistake, but gotta learn somehow.
I'll now go fall on my own sword
#23
Originally Posted by Aaron Cake
The O2 wire is the a gray shielded wire. For most of it's lengh, it is covered by a shield of braided wire with a gray jacket. So if you make your connection anywhere but at the ECU or at the sensor itself, you will get irratic readings as you have connected to the shield instead of the O2 sensor wire.
I've been advised to look over on the passenger side for the ECU.
Thread
Thread Starter
