No spark from coil

S4 Turbo engine. Had no power to the leading coil, so i wired in 12v off the fuse box. now there is power to it but it is not sparking.

The car is a S4 T2 that ran great recently with a NA. I relocated the battery and re-loomed the power harness, besides that, and new engine, and gutting the car those are the only new things that were done

Last edited by Zenki FC3S; Nov 17, 2008 at 07:21 PM.

Nov 17, 2008 | 07:44 PM

AcidAngel7477

We're All Fkd..

iTrader: (16)

Joined: Nov 2005

Posts: 8,727

Likes: 3

From: Whittier,CA

try a different coil...might just work.

:AA:

Nov 17, 2008 | 07:47 PM

Zenki FC3S

Thread Starter

\\TRASHTALK//

Joined: Mar 2008

Posts: 1,439

Likes: 3

From: south phoenix

yeah i already tried that. a friend said it could be the timing. so that is what im doing right now

Nov 17, 2008 | 07:47 PM

SirCygnus

whats going on?

iTrader: (1)

Joined: Mar 2004

Posts: 4,930

Likes: 8

From: atlanta ga

check the airflow meter. unplug it, and see if you get spark.

Nov 18, 2008 | 08:41 AM

HAILERS

HAILERS

Joined: May 2001

Posts: 20,563

Likes: 27

From: FORT WORTH, TEXAS,USA

The ECU triggers spark. The ECU gets ITS power from the same place the lead coil gets it's power. From the Main Relay via the EGI fuses.

And no, I did NOT suggest you have a bad Main Relay and to change it out. I suggest you need to investigate if the Main Relay is getting power TO it and if the Main Relay is pulling in when the key is put to on.

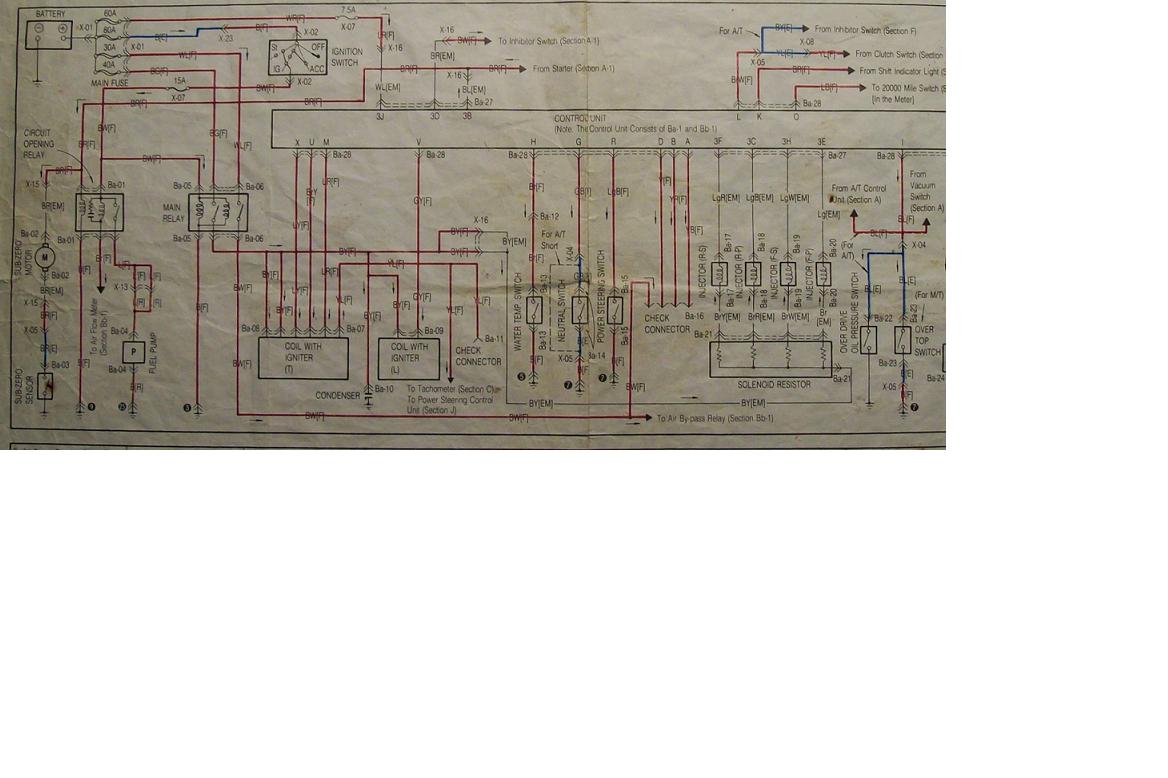

Attached Thumbnails
