no oil pressure

Thread Tools

Search this Thread

Old 10-24-06, 06:50 PM
  #1
Newbie
Thread Starter

Kev-Bo's Avatar

Join Date: Oct 2006
Location: edmonton
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
no oil pressure

ok today i started my car and all of a sudden i have no oil pressure or the guage is not working how can i foind out if its my guage or the oil pressure ??

also where is the oil pressure sending unit on a 1988 rx7 with b13
Old 10-24-06, 07:19 PM
  #2
Flame Thrower


drewl's Avatar

Join Date: Oct 2004
Location: Bay Area
Posts: 188
Likes: 0
Received 0 Likes on 0 Posts
first see how much oil you have. if you have no oil, then you have no oil pressure for sure.
if you have enough oil, then you could have a bad oil pump, bad sender or bad gauge, or or bad wires from the sender to the gauge, or some kind of blockage so no oil gets to teh part of the engine where the sender is. or any combination of those.
the sender is just below the oil filter.
Old 10-24-06, 07:30 PM
  #3
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,714
Received 1,053 Likes on 892 Posts
as drewl said, check the connection at the sender. that is the most common failure and can be easily overlooked. make sure you have a good connection. then if you do, test to see if you have 12V at the connector when the key is in the accy position. start there and post back.
Old 10-24-06, 09:38 PM
  #4
Will work for horsepower


Busted7's Avatar

Join Date: Mar 2006
Location: Springfield, MO
Posts: 1,865
Likes: 0
Received 1 Like on 1 Post
Oil pump on rx7's hardley ever fail!
Old 10-25-06, 01:07 AM
  #5
Law Breaker


Carzy Driver's Avatar

Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Busted7
Oil pump on rx7's hardley ever fail!
In FBs and FCs yes, but I've been hearing alot about FD oil pumps sheering the key inside the pump resulting in major bearing failures. This coming from well known rebuilders.
Old 10-25-06, 06:59 AM
  #6
Rotaries confuse me

iTrader: (7)

My5ABaby's Avatar

Join Date: May 2006
Location: Murfreesboro, TN
Posts: 4,219
Likes: 0
Received 3 Likes on 3 Posts

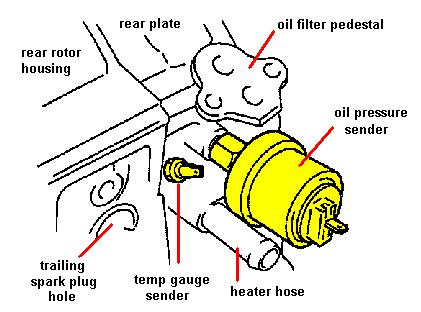

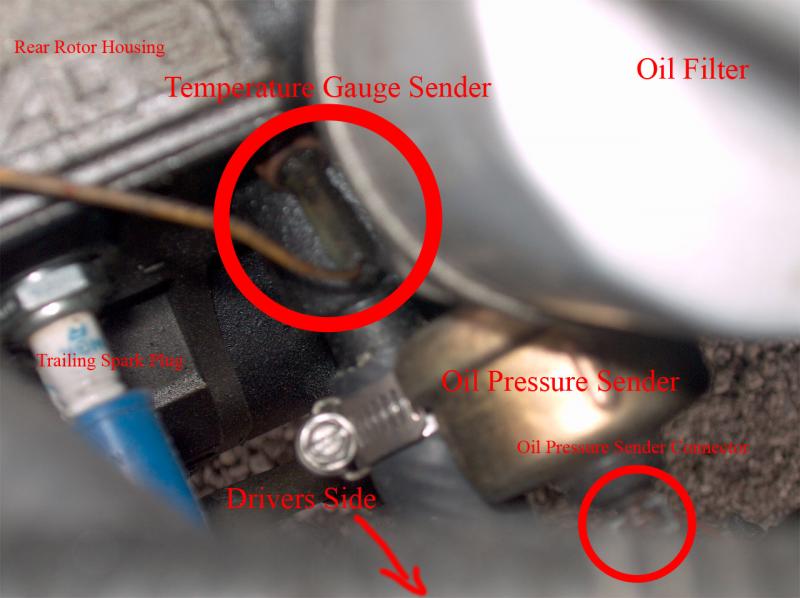

Pressure sender...
Attached Thumbnails no oil pressure-14108415049.jpg   no oil pressure-14508492122.jpg
Old 10-25-06, 08:35 AM
  #7
Semper

iTrader: (3)

rx7 FC TII's Avatar

Join Date: Feb 2006
Location: Alabama
Posts: 1,354
Likes: 0
Received 0 Likes on 0 Posts
what is the best way to remove the sending unit....im installing a new oil pressure guage because the whole unit thats currently in the car does not work.....
Old 10-25-06, 11:16 AM
  #8
Full Member


ALTurbo2's Avatar

Join Date: Mar 2001
Location: Pelham, AL
Posts: 175
Likes: 0
Received 0 Likes on 0 Posts
Use a 10mm open end wrench on the shaft of the oil pressure sending unit.
