phreestyleking

i bought a s4 na a while a go and the dash lights quite working whats up/ is it cold solders if so ho can i fix? thanx 4 reading

WAYNE88N/A

ALL of them quit working at once? Have you checked your fuses?

phreestyleking

all of my iddiot lights work(hatch/oped,door ajar) it just the lights behind the speedo/tach etc. fuse good.

DoriSPL

Check the dimmer switch

Madrx7racer

check the fuses in the engine bay.....do you have parking lights when you turn your lights on?

phreestyleking

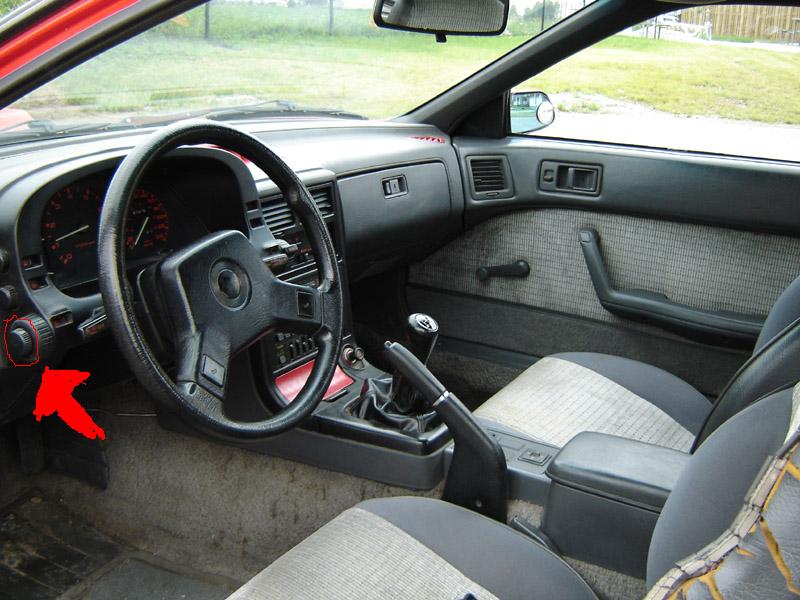

***************Check the dimmer switch
Attached Thumbnails


--------------------------------------------------------------------------------
Last edited by DoriSPL : Today at 05:03 PM.


what should i check? connections? how?

Icemark

You would need to check the wiring harness behind the light switch if you have already confirmed that the dimmer is not set to off, and the fuses are good.

and I merged your threads... two or more threads on the same problem and same car and same poster are not looked upon in a positive manner.

sEeMiNhThEdEmOn

i have the same problem, except its only my gauge cluster, and my tail lights, they work when i brake, but they dont come on when i turn my lights on, thing is, when i first turn on my head lights, they will come on (gauge cluster lights), but only for a few seconds. anyone have this problem before?

J-Rat

iTrader: (2)

Headlight switch..

crashdummy

werd

WonkoTheSane

iTrader: (2)

IT's either the switch (as others have suggested, and I'm inclined to believe also) or like mine was, the one wire going into the switch somehow melted a bit, and was not making good contact at all, and whenever it would shift I would get intermiittant running and gauge lights... sometimes they worked, sometimes they didn't..... not something I let go too long..

Icemark

That is what we mean by the switch...

If the bulbs are not properly maintained, the wires will over heat and melt at the switch.

To fix you would need to replace the harness and the switch (and of course you should also clean all your bulb sockets).

sEeMiNhThEdEmOn

thanks alot!

Icemark, do you have a switch and harness for sale right now? something a little affordable though?

mali_FC

go to junk yard and get the whole plastic cluster with all the switches on it. It will be much, much cheaper and easier then checking detail by detail.
It`s very common for second gen to have electrical problems.

believe it or not I had the same problem like you, but right after the dimmer light the position-park lights died out.

-doca

Icemark

I have headlight switches, but do not have any harnesses... Mazdatrix or Mazdaformance would be your best bet for the harness.

sEeMiNhThEdEmOn

Would I be able to take it out to a shop and have them repair the harness? Or is my only option replacing it?
