duh!! stupid me...

I took the radiator, waterpump hsg, and OMP apart, and now I don't remember how it goes together...(took it apart 2 weeks ago)

Specifically:

Is the OMP spider lines that go to the OMP pump is in front of or behind the LOWER waterpump housing outlet? And there is a bracket that holds the OMP lines to the waterpump housing - what's the orientation of this bracket? Anyone has a picture of this?? Will also need a picture showing orientation of the airpump bracket too!!

Help!!!

dewey

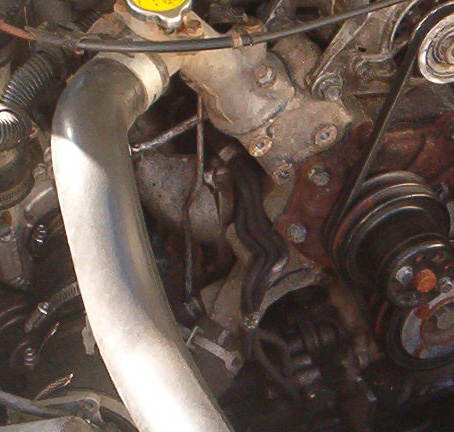

I have two out of three.
