Need help resoldering warning light cluster
#1
Junior Member
Thread Starter
Need help resoldering warning light cluster
My warning light cluster stopped working, and when I threw an alternator/water pump belt I didn’t know until the engine overheated, so I’m in the process of resoldering it to make it work again.
I’m going through with a multimeter and checking resistance between all the connections on the boards and resoldering any that are open, is this the proper way to do this?

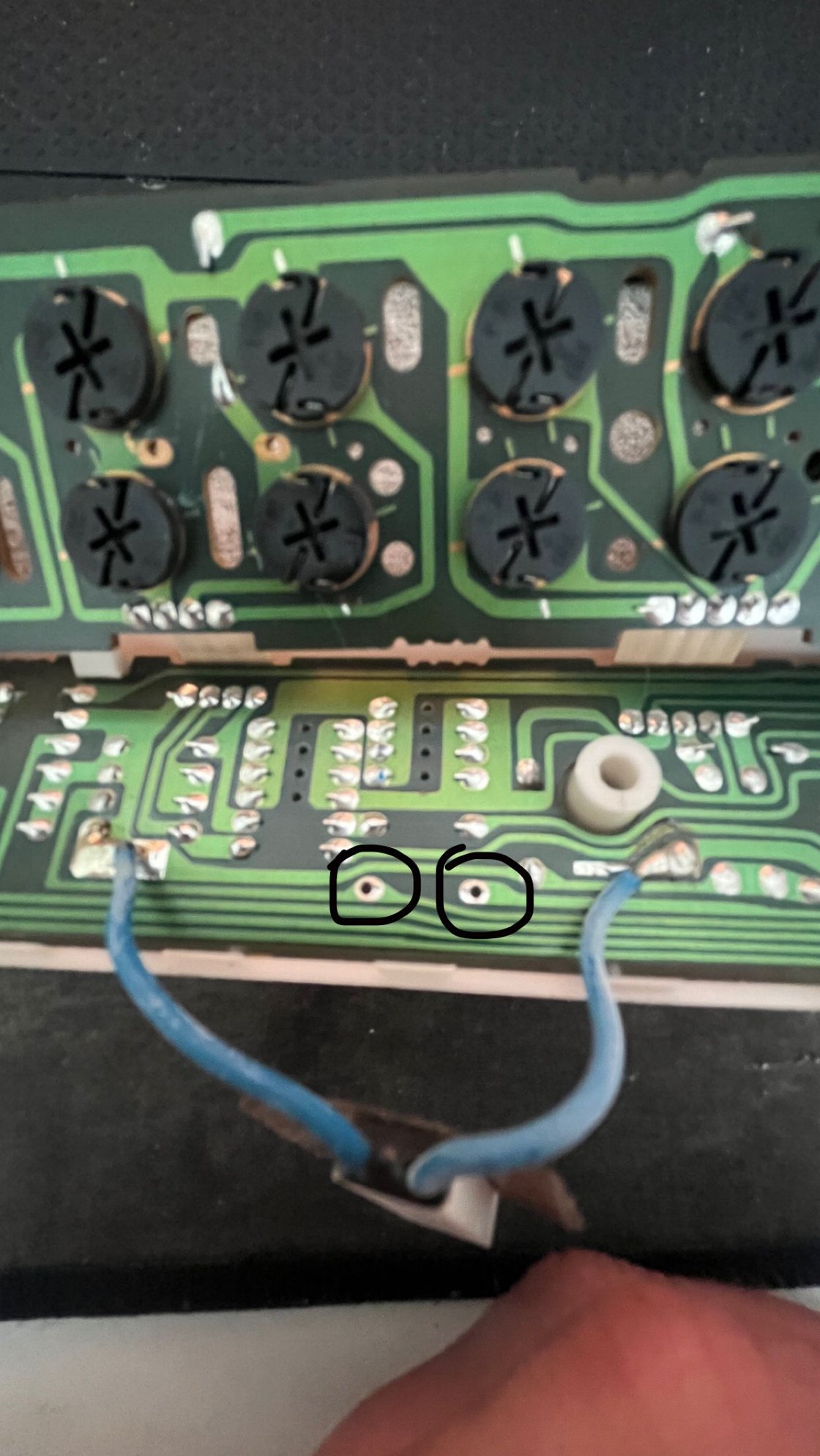

Finally, as I was going through the connections i found these two that had holes with nothing in them. Is there supposed to be a resistor or something there? It was under the paper cover/weird thing with wires hanging off of it.
I’d greatly appreciate some help here. Thanks in advance
I’m going through with a multimeter and checking resistance between all the connections on the boards and resoldering any that are open, is this the proper way to do this?
Finally, as I was going through the connections i found these two that had holes with nothing in them. Is there supposed to be a resistor or something there? It was under the paper cover/weird thing with wires hanging off of it.
I’d greatly appreciate some help here. Thanks in advance
#3
rotorhead
iTrader: (3)
Basically you need to desolder all the existing joints (use desoldering wick) and apply new solder. That's what the old rebuilt Icemark clock warning panels did (way before your time... Icemark was a forum moderator who died many years ago but he rebuilt my clock/idiot light panel when I had an FC)
#4
rotorhead
iTrader: (3)
for example this ancient post gives the broad detail of what he did
CPU cold solder ponits and tachometer - RX7Club.com - Mazda RX7 Forum
CPU cold solder ponits and tachometer - RX7Club.com - Mazda RX7 Forum
The following users liked this post:
mr_vaughn (03-27-23)
#5
Rotary Freak
Basically you need to desolder all the existing joints (use desoldering wick) and apply new solder. That's what the old rebuilt Icemark clock warning panels did (way before your time... Icemark was a forum moderator who died many years ago but he rebuilt my clock/idiot light panel when I had an FC)
The following users liked this post:
arghx (03-30-23)
