Need help identifying this part I broke
#1
Rotary Enthusiast
Thread Starter
Need help identifying this part I broke
As title states. its the part that the 3 (supposed to be 4) vaccume lines are going into. I broke one of the nipples off of it trying to replace a vaccume line. Thanks you
#5
Rotary Enthusiast
Thread Starter
Trending Topics
#9
Rotary Enthusiast
Thread Starter

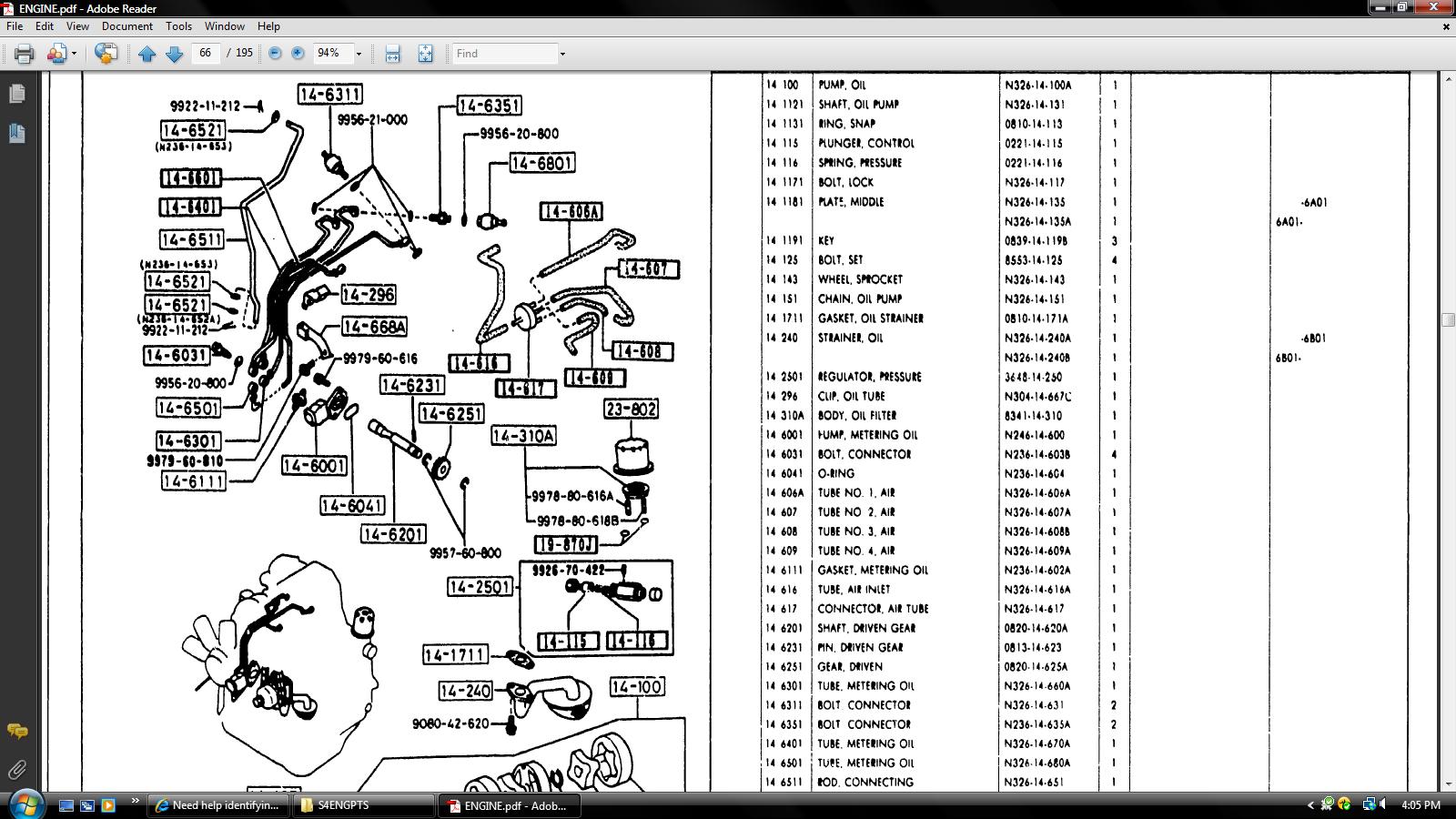

according to mazda the "vaccum hose spider" is not what mazda calls it lol so im still on hold. Anyone happen to have a mazda part number by chance
#11
Death or Glory
iTrader: (16)
They may call it a Vacuum Splitter, which essentially is all that is. Takes one 6mm vacuum hose from the UIM and splits it into four 4mm vacuum hoses that run to the oil injectors. Just remove the part and take it to NAPA/Autozone/etc and have them find you a replacement. You don't need to buy the $53 bullshit from Mazdatrix, and it doesn't have to have "certain angles" or anything. In fact this may be a good time to go ahead and replace all of your old OMP vacuum hoses anyway.
Last edited by The CzAR; 04-30-10 at 03:01 PM. Reason: clarification
#12
Junior Member
Join Date: Nov 2006
Location: ft. lauderdale
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
OIL METERING INJECTORS - each of the 4 injectors has a vacuum line that connects to a round gang block, and from there it connects with a larger vacuum hose to the upper intake manifold.
#15
Rotary Enthusiast
Thread Starter
They may call it a Vacuum Splitter, which essentially is all that is. Takes one 6mm vacuum hose from the UIM and splits it into four 4mm vacuum hoses that run to the oil injectors. Just remove the part and take it to NAPA/Autozone/etc and have them find you a replacement. You don't need to buy the $53 bullshit from Mazdatrix, and it doesn't have to have "certain angles" or anything. In fact this may be a good time to go ahead and replace all of your old OMP vacuum hoses anyway.
#18
Rotary Enthusiast
Thread Starter

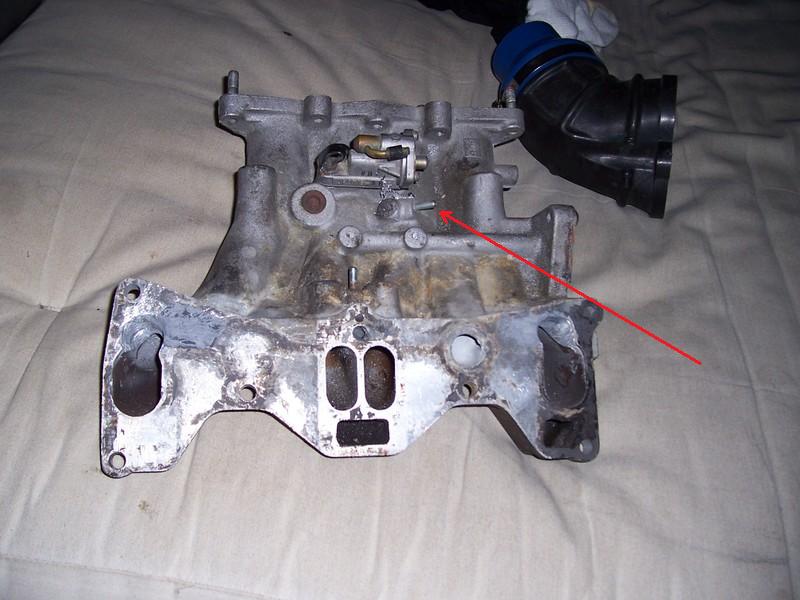

ok one more question. In the first pic there is a metal line right next to the oil injector on the right that has no vaccum line hooked up. Can anyone tell me what line hooks up to it. I looked through al the diagrams on here but found nothing on that particular line. Thanks
